TPC 628:
Compact production cell concept for fully automatic tube production

3D-Darstellung einer automatisierten Rohrfertigungszelle mit Coilzuführung, Stufenförderer und integrierter Biegeanlage.
  • Attractive price/performance ratio
  • Low space requirement
  • High flexibility
  • Customized solutions depending on market requirements
  • Loading of bar stock or coil material
  • Machining of one or both tube ends
  • Copper (up to Ø 28 mm) and stainless steel (up to Ø 22 mm)
transfluid TPC 628 Compact Cell – automatisierte Rohrfertigungsanlage mit Bediener in Produktionsumgebung.

COMPACT, BUT HIGHLY FLEXIBLE

Due to the current demand in the renewable energy sector, particularly for heat pumps, but also for domestic hot water systems, we have decided to create a new compact production cell concept. This concept is specially tailored to this sector and offers the customer an increase in capacity with minimal space requirements at a good price-performance ratio.

Advantages:

  • Attractive price, good price/performance ratio
  • Extremely compact, low space requirement
  • High flexibility for short tubes
  • Bending with and without mandrel possible
  • Tube ends can be processed on both sides (depending on geometry)
  • Production cell can be expanded as required
  • Punching of holes on the bending machine possible (depending on geometry)
  • Volatilizing lubricants that make any washing of the tube superfluous
  • Low lubricant consumption
  • Central system control
  • Fast, easily accessible tool change
  • Modular design of the system

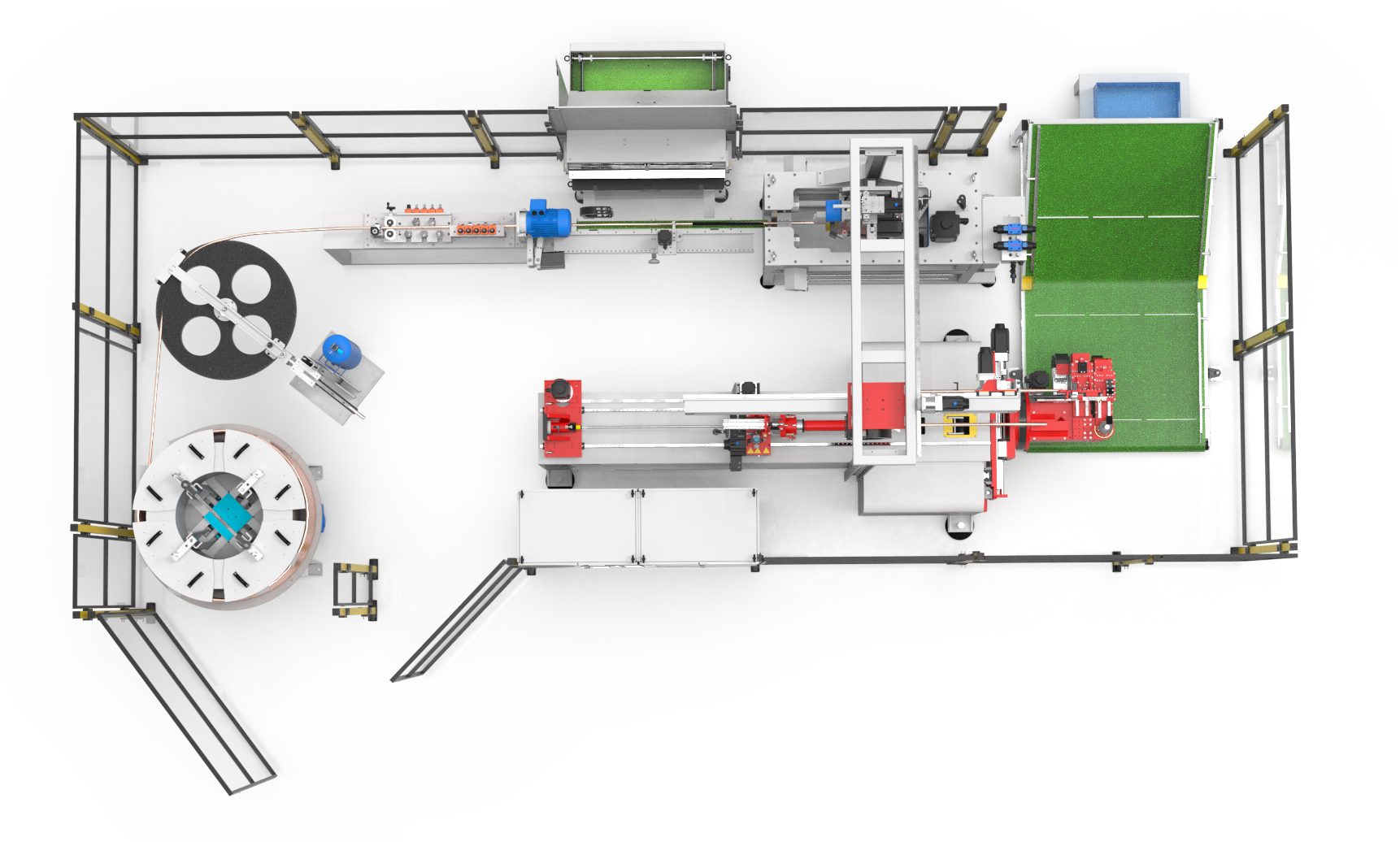

Automatisierte Rohrfertigungszelle mit Coilzuführung, Stufenförderer und Biegeanlage in Draufsicht.
Automatisierte Rohrfertigungszelle mit Roboter und integrierten Bearbeitungsstationen.

Version 1:

Loading of finished blanks up to 1000 mm

1. Loading of the blanks via step conveyors

2. Forming of the 1st tube end - if necessary, turning of the tube and forming of the 2nd tube end

3. Right/left mandrel bending machine

4. Discharge via conveyor belt



Automatisierte Rohrfertigungszelle mit nummerierten Prozessschritten und Fördertechnik.

Version 2:

Coil feeding incl. straightening and cutting to length

1. Feeding the tubes as coil material

2. Tube straightening section

3. Calibrating and chipless cutting of the tubes

4. Forming of the 1st tube end - if necessary, turning of the tube and forming of the 2nd tube end

5. Compact handling

6. Right/left mandrel bending machine

7. Discharge via conveyor belt

Automatisierte Rohrfertigungszelle mit nummerierten Prozessstationen und Roboter.

Version 3:

Combination of straight tube feed and coil feed

1. Feeding the tubes as coil material

2. Tube straightening system

3. Calibration and chipless cutting of the tubes

4. Alternative to coil: feeding of fixed lengths up to 1000 mm

5. Forming of the 1st tube end - if necessary, turning of the tube and forming of the 2nd tube end

6. Compact handling

7. Right/left mandrel bending machine

8. Discharge via conveyor belt

Kompakte automatisierte Rohrfertigungszelle mit Roboter und Fördertechnik.

Further expansion stages:

The new production cells can be expanded as required, e.g. to include



- Processing the second tube end or trimming the excess length

- Necking

- Nut feed

- Camera station

- Printing/labeling stations

- and much more
