The solution for tube systems in the hydraulics industry

First-class bending and connection technology for ready-to-install hydraulic lines

transfluid - Precise fitting accuracy guarantees safe hydraulic systems

Hydraulic lines are crucial for the safe and efficient operation of hydraulic systems. The connection technology for these lines must be particularly robust and reliable in order to withstand the high pressures and dynamic loads. Transfluid offers special machines and techniques for the various screw connections to ensure a durable and secure seal.

The hydraulics industry has trusted our solutions for over 35 years. Whether mobile, manual production on the construction site or flexible production systems, transfluid offers the right solution that you can rely on.

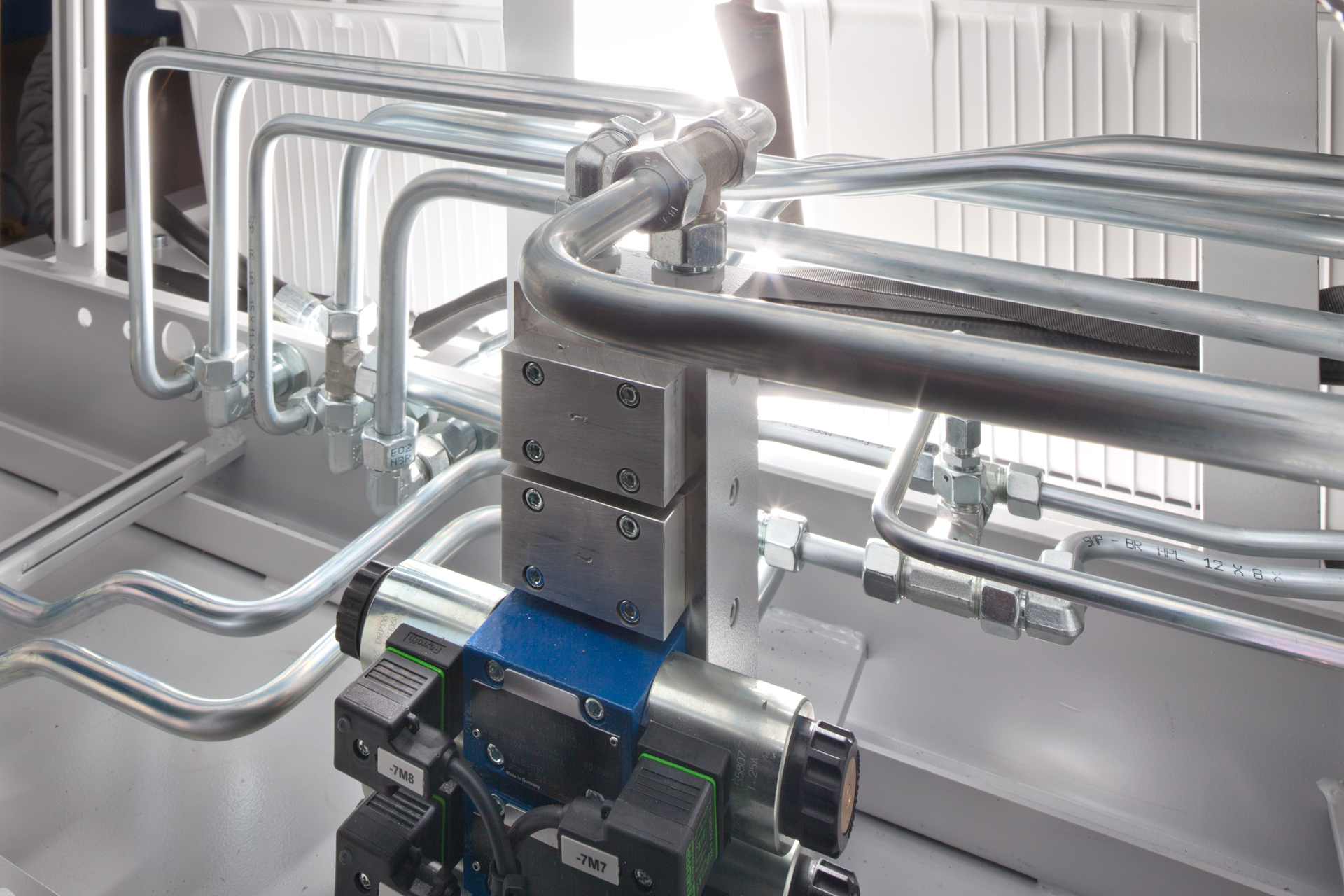

Hydraulisches Rohrleitungssystem mit Ventilblock und Metallrohren.

Forming diversity and automatic bending for hydraulics

JIC, JIS BSP, BSPP, DIN, ORFS
Hydraulic pipelines, connections, production of hose connectors
Special bending machines for fittings
Assembly systems for sleeves, nuts and O-rings
Labeling of components and control systems
All common connection systems on the market can be processed

t bend CNC bending machines for maximum flexibility: choose your solution

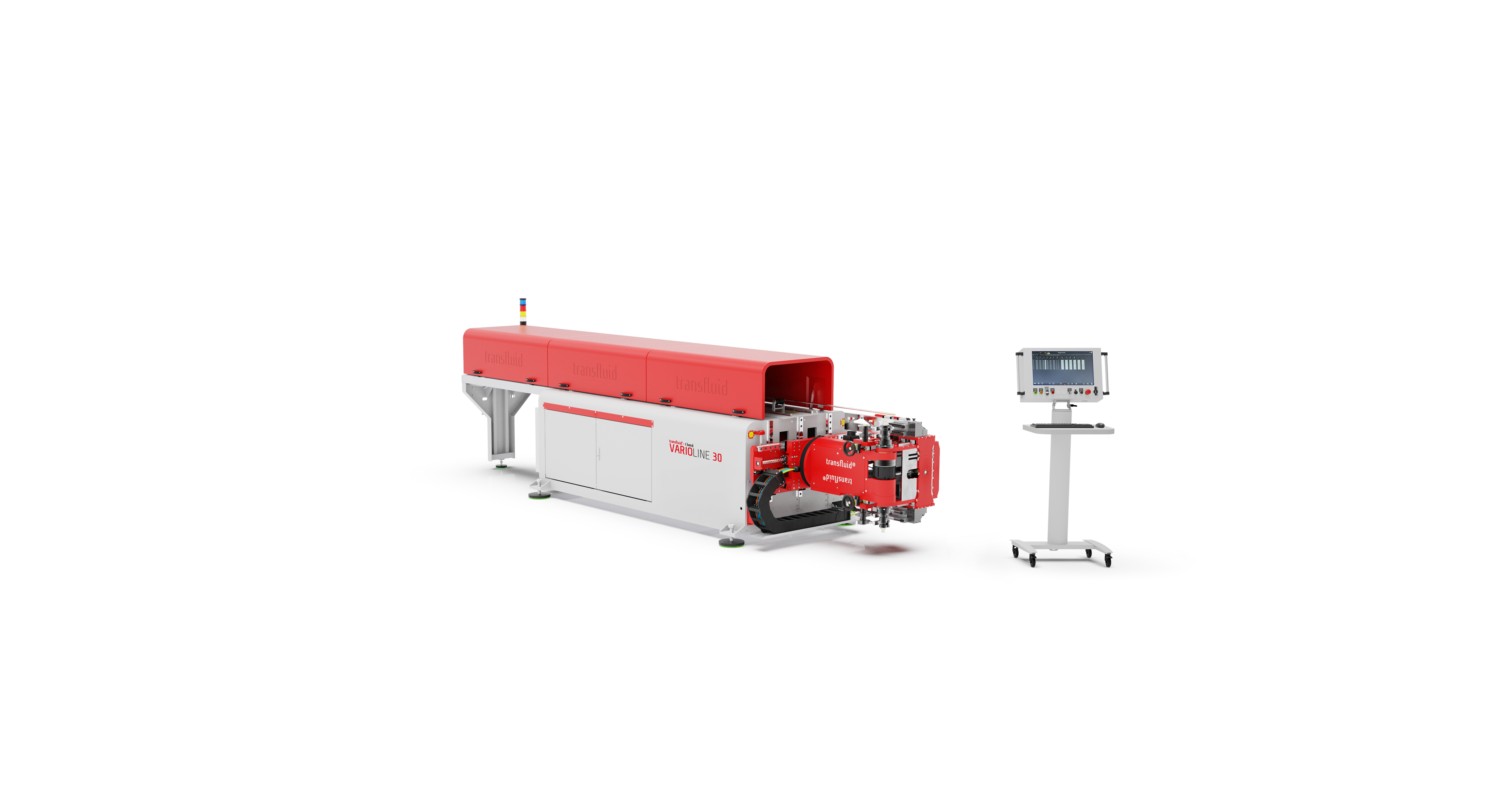

T BEND SERVO-ELECTRIC - RIGHT/LEFT BENDING

Right/left bending machines - also with free-form function - implement the most complex bends with dimensional accuracy. For tubes with diameters from 6 to 70 mm.

Further information

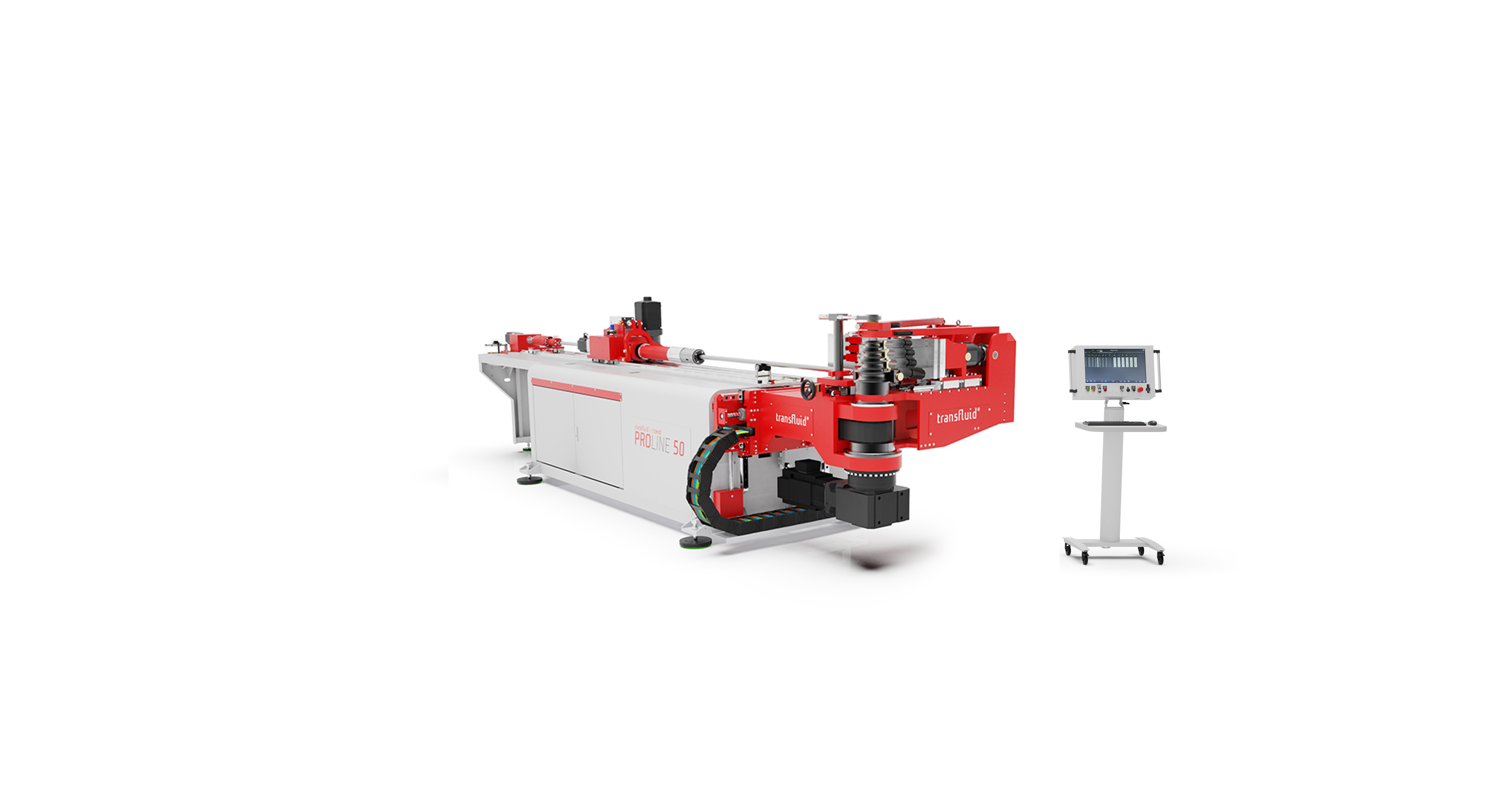

T BEND SERVO-ELECTRIC BENDING MACHINES

The solution for the future: highly dynamic and flexible thanks to 100% servo-electric technology. For tubes with diameters from 6 to 150 mm.

Further information

T-BEND SERVO-HYDRAULIC BENDING MACHINES

Stable, flexible and economical. This series impresses with its exceptional stability and performance. A very powerful machine. For tubes with diameters from 6 to 325 mm.

Further information

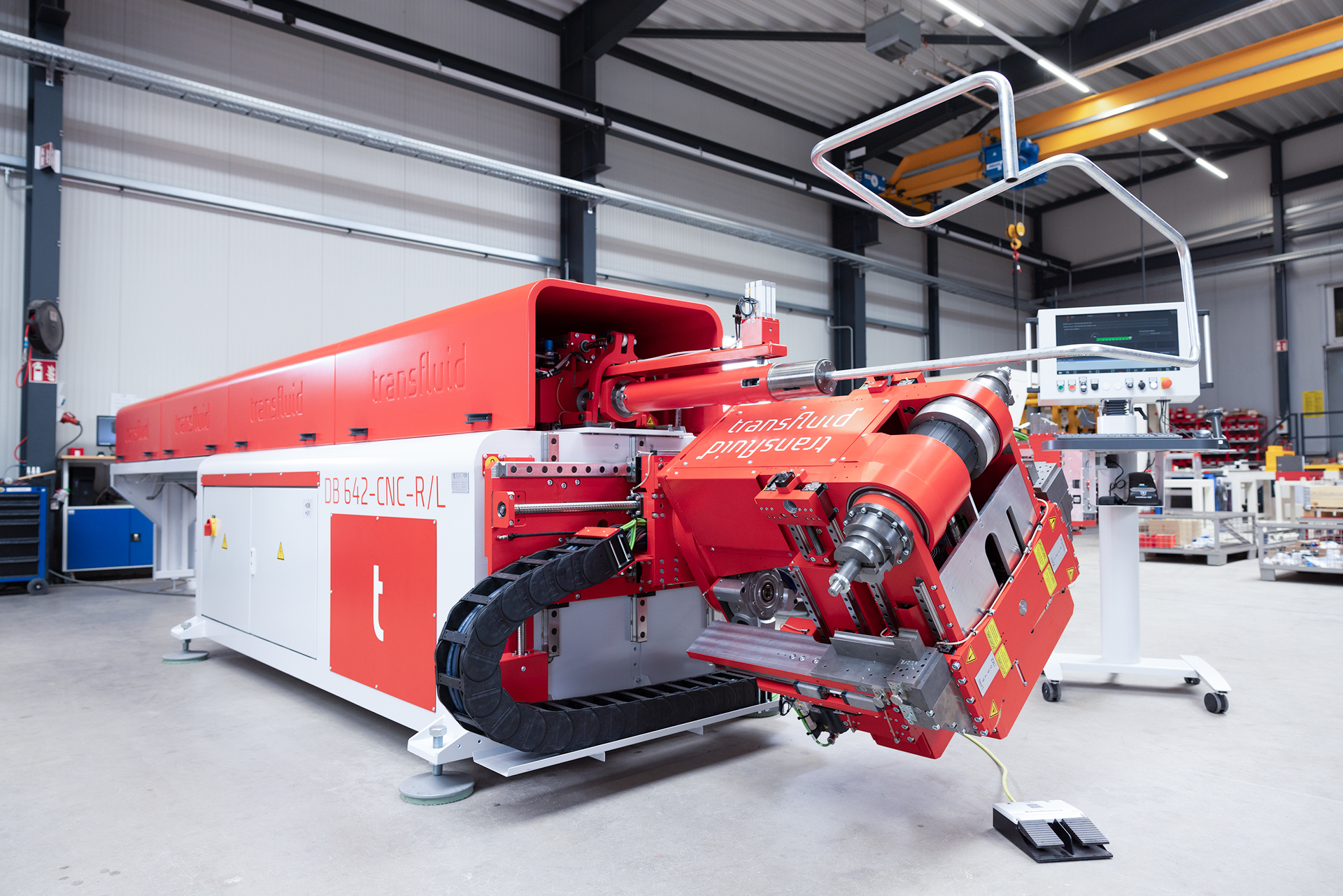

CNC-Rohrbiegemaschine mit automatischem Biegekopf und Steuerungseinheit.

BENDING AND FORMING OF TUBES FOR HIGHLY DYNAMIC LOADS

The ever-increasing digital integration of tube machining processes is a key driver of technical progress in the industry. For hydraulics in particular, this requires solutions that guarantee safe and, depending on requirements, automated processes in tube processing.

To ensure that tubes are clean, robust and durable in the long term, you need to be familiar with the wide range of hydraulic connection technology. We give you the security you need for the products and their economical manufacture.

Hydraulische Rohrbiegemaschine mit Biegewerkzeug in industrieller Umgebung.

HYDRAULIC TUBES

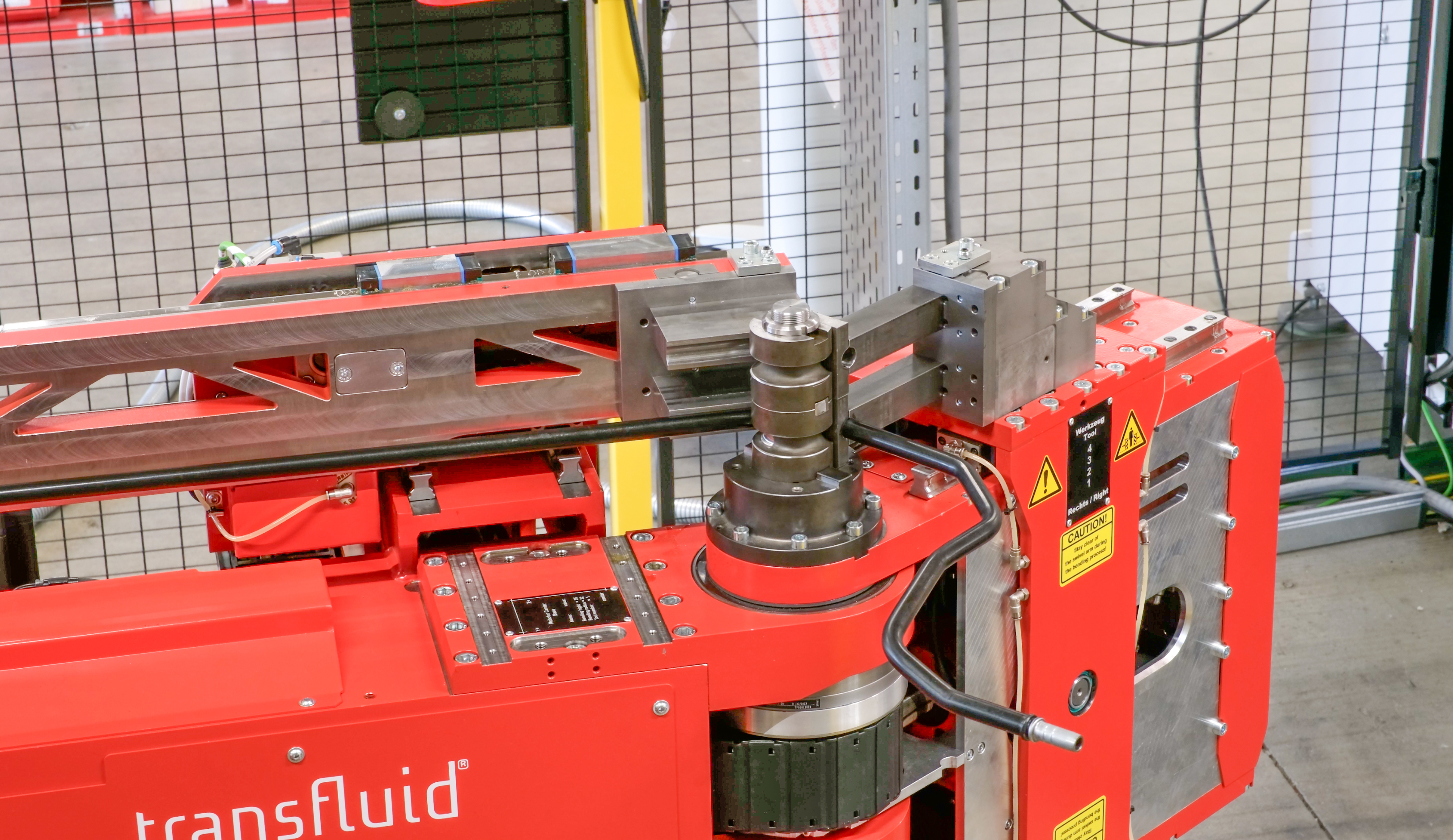

In addition to galvanized steel tubes, transfluid tube bending machines can also be used to easily bend coated hydraulic tubes. The Zistaplex surface coating, for example, offers excellent processing properties for hydraulic tubes. The organic top layer holds even with extreme bending geometries and thus ensures corrosion resistance after deformation.

HIGH-PERFORMANCE TUBE FORMING AND BENDING TECHNOLOGY

CREATE SAFE MOBILITY

The extreme demands placed on construction vehicles require precisely fitting pipework and reliable connections to the hydraulic drives that carry out very heavy-duty work. We have developed our compact CNC tube bending machines especially for these challenges.

Further information

Detail eines Biegewerkzeugs der CNC Rohrbiegemaschine transfluid t bend VARIOLINE 22 beim präzisen Dornbiegen eines Metallrohrs.

t form tube forming machines for maximum flexibility: choose your solution

Rohrumformmaschine t form FLARELINE 28 von transfluid zur präzisen Bördel- und Rohrendenumformung.

ROLLING FORMING MACHINES TYPE FLARELINE

The FLARELINE tube forming machine ensures high quality standards with its special wobbling process and drawing-related flanging mandrels. It produces perfect, mirror-like sealing surfaces when forming tubes up to 325 mm in diameter.

Further information

Rohrumformmaschine t form MULTILINE 65 von transfluid mit Bedienpanel zur industriellen Rohrbearbeitung.

ROLLING FORMING MACHINES TYPE MULTILINE

Many forming options with one machine type: forming, cutting, trimming and thread rolling. Our MULTILINE forming machines are ideal for producing sophisticated contours for sealing elements and for producing extremely good surfaces.

Further information

Axiale Rohrumformmaschine t form BOOSTLINE von transfluid für präzise Automotive-Rohrbearbeitung

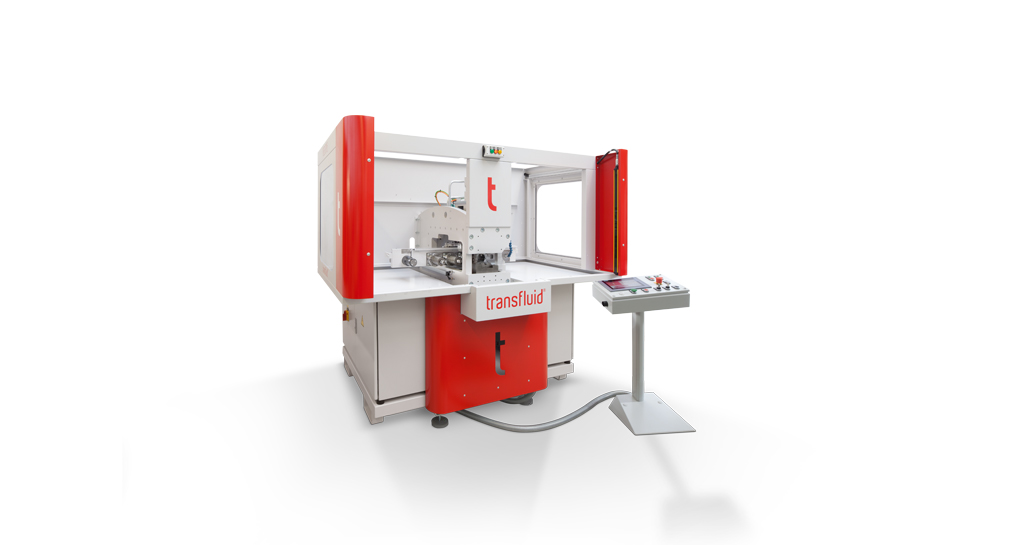

AXIAL FORMING MACHINES TYPE BOOSTLINE

Precise forming with fast tool changes. With forming forces of up to 1,300 kN, our BOOSTLINE axial t form forming machines are particularly suitable and effortlessly master complex geometries. With up to eight forming stages in combination with an intermediate clamping unit, they meet almost all requirements.

Further information

transfluid FLARELINE 42 Rohrumformmaschine für ORFS-Bördelungen und Rohrendenumformung in der Hydraulikfertigung

ORFS CONVERSION WITH THE t form FLARELINE

Another type of machine used for ORFS tubes is the rotary flaring machine. This machine uses a rotating mandrel to form the end of the tube into a flare. It ensures an even and precise flaring angle, which guarantees a secure and leak-free connection.

Production cell for double-sided ORFS forming of straight tubes

To the t form FLARELINE machines

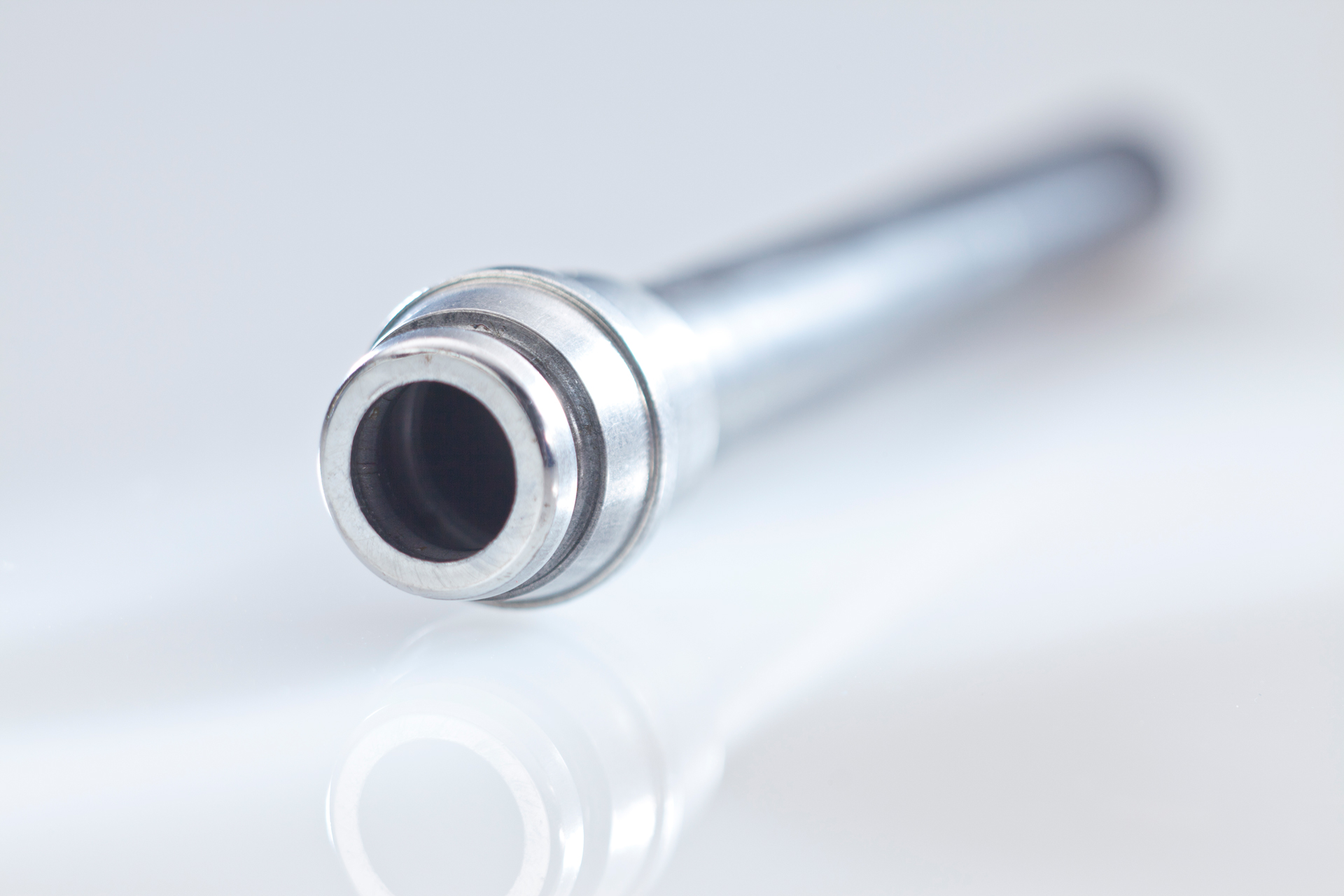

Hydraulikrohr mit Bördelanschluss und zylindrischem Rohrkörper.

FINISHING CELL DKOL CONNECTION

DKOL tubes are often used in hydraulic systems and other high-pressure applications and require precise flaring to ensure a secure and leak-free connection. Orbital flaring machines are essential for this process.

Shaping cell DKOL connection, consisting of axial and rolling tube end machining.

KUKA Industrieroboter in automatisierter Rohrbiegemaschine mit Fertigungszelle.

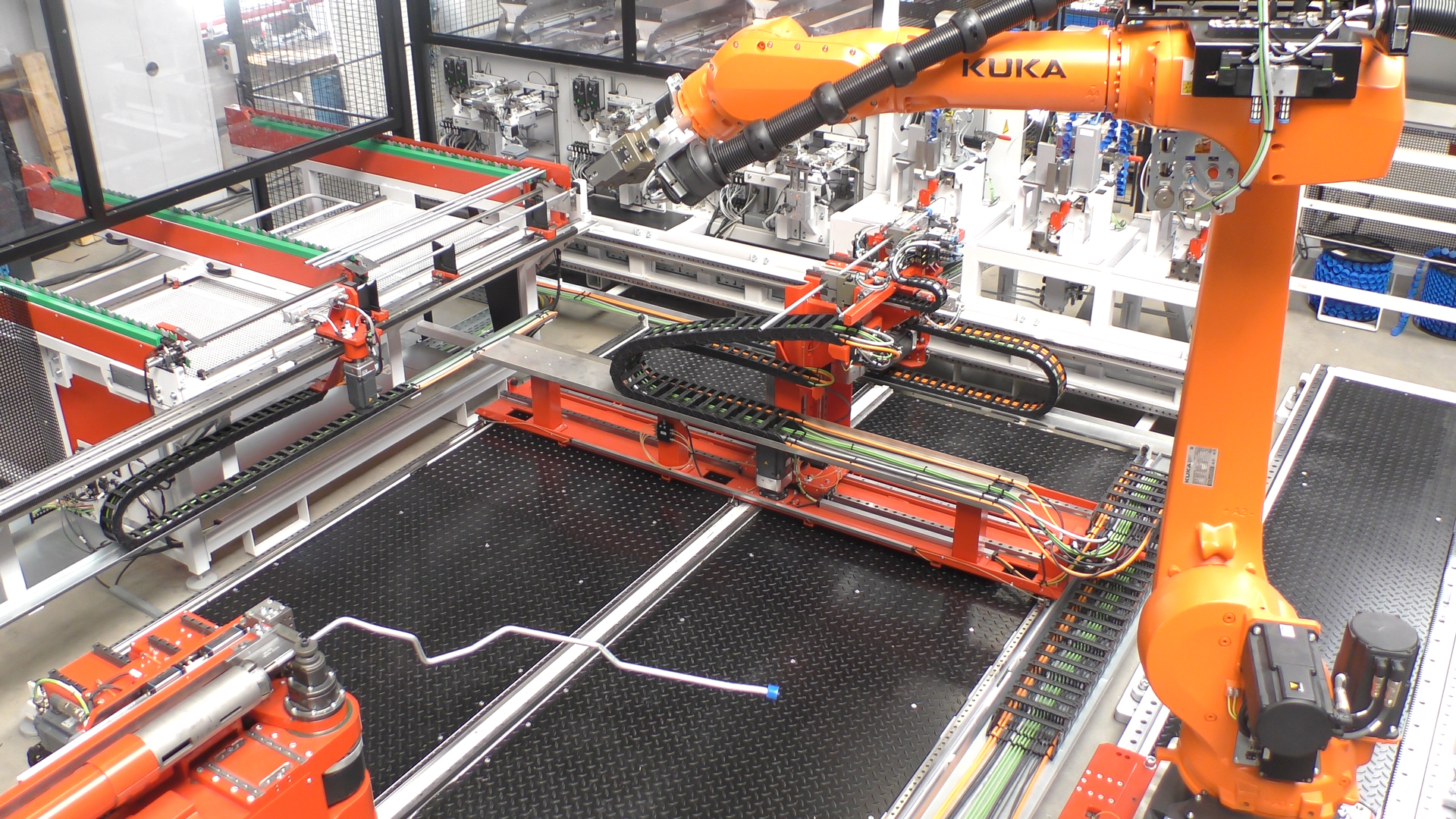

PRODUCTION CELL FOR HYDRAULIC LINES

Flexible production concepts, from individual items to series production, and the manufacture of connections can be easily realized with transfluid machines.

Automated machines are preferred for the production of larger quantities. These machines are computer-controlled and can process a wide range of tube sizes and materials. They can also perform multiple operations, including cutting, bending and forming. Automated machines deliver precise and repeatable results and are therefore ideal for high-volume production.

t work - Mobile and compact machines for your needs.

Compact mandrel bending machines

Our compact mandrel bending machines are fully hydraulically controlled. Perfect bend quality with tight bending radii from 1.5 x D.

Further information

Mobile bending machines

Transportable, variable and tried and tested: Thanks to its simple and effective technology, the mobile bender is a clever companion for piping directly on site.

Further information

t work assembly devices

Fast and safe: t work assembly devices enable particular flexibility and impress with their performance.

Further information

Hydraulics

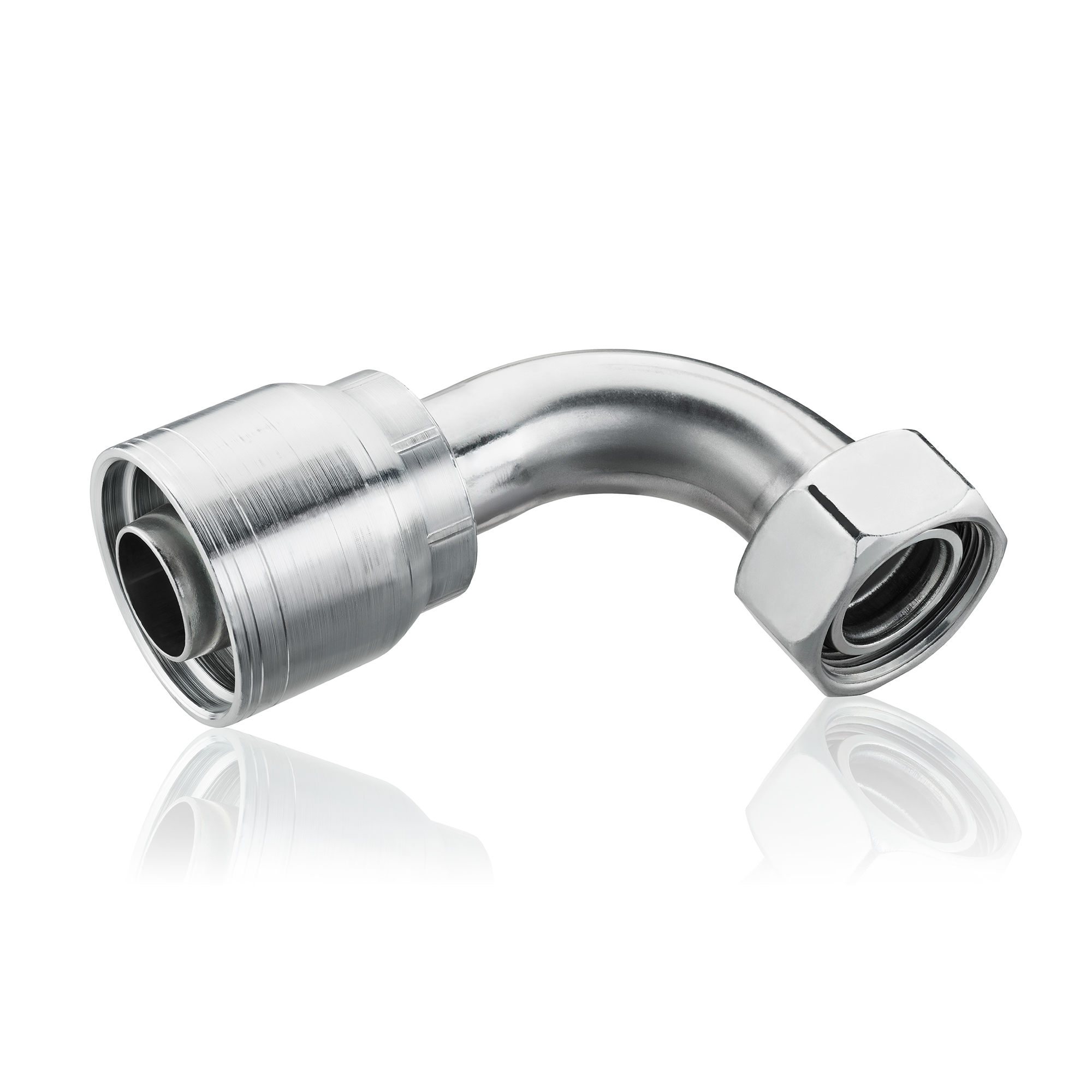

Gebogenes Edelstahl-Hydraulikrohr mit Verschraubungsanschlüssen.

Gerades Edelstahl-Hydraulikrohr mit Verschraubung und Anschlussstück.

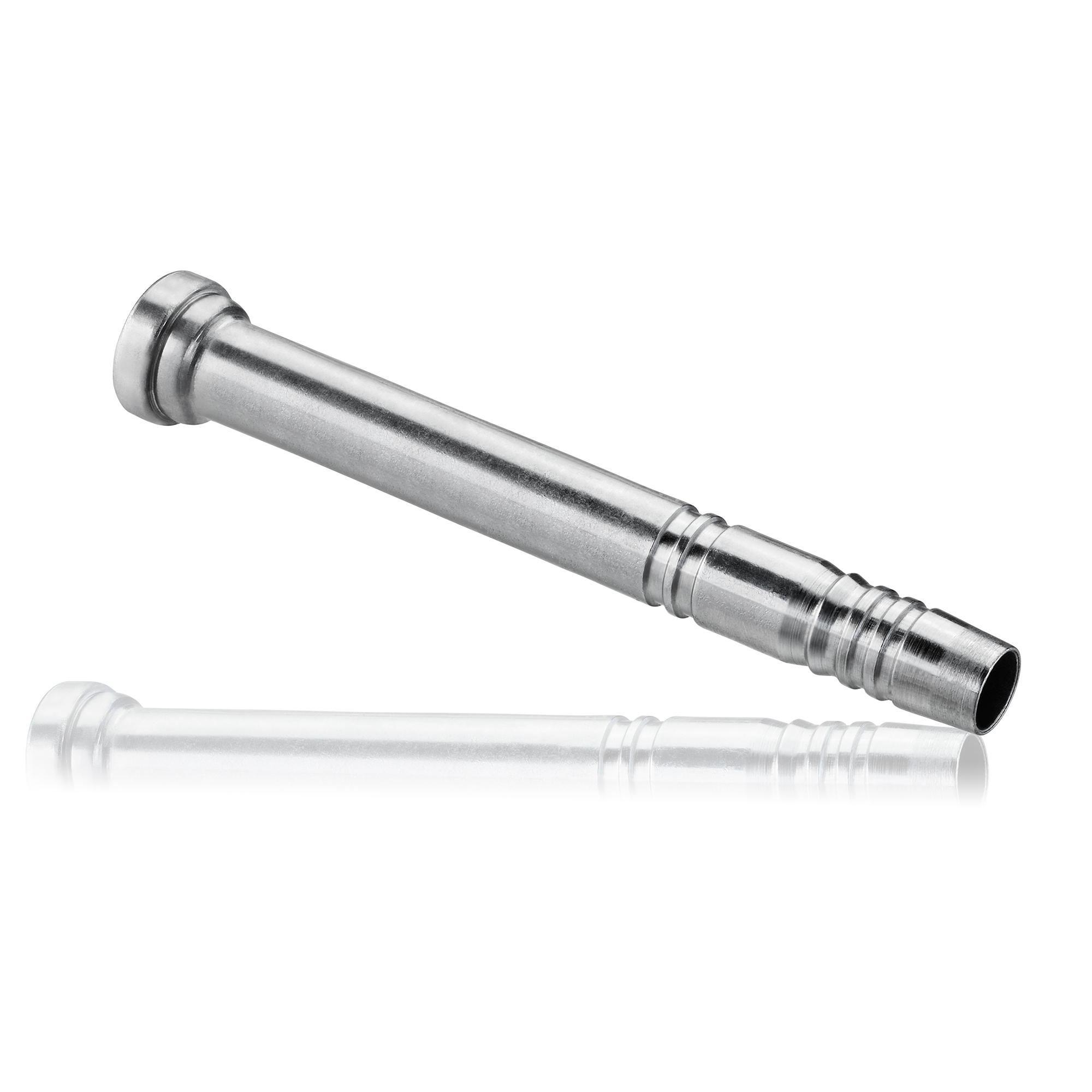

Gerades Edelstahlrohr mit abgestuften Anschlussprofilen für Hydrauliksysteme.

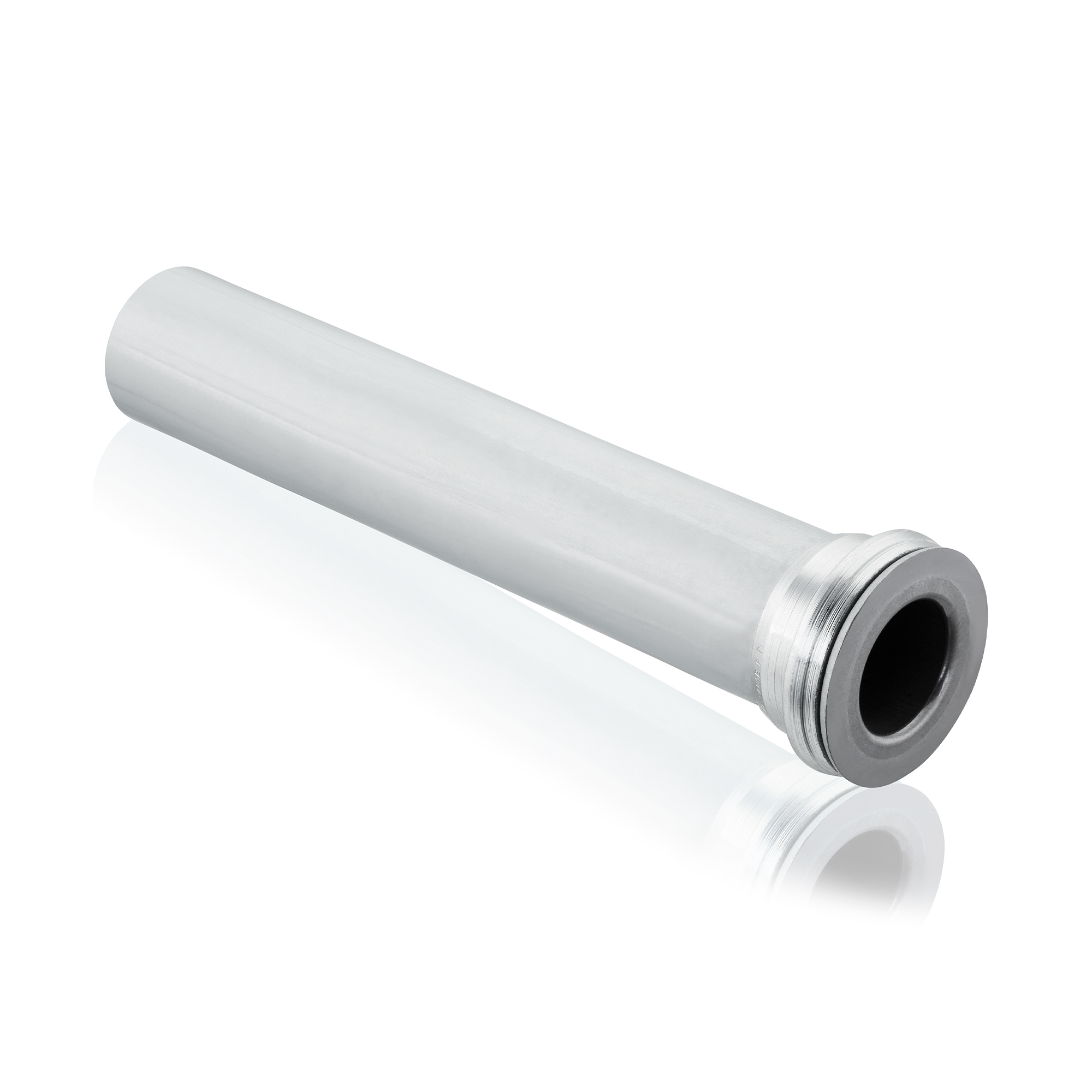

Gerades Edelstahlrohr mit Flanschanschluss für hydraulische Systeme.

Gebogenes Edelstahl-Hydraulikfitting mit Gewindeanschluss und Schlauchtülle.

Gerades Edelstahl-Hydraulikfitting mit Verschraubung und Schlauchanschluss.

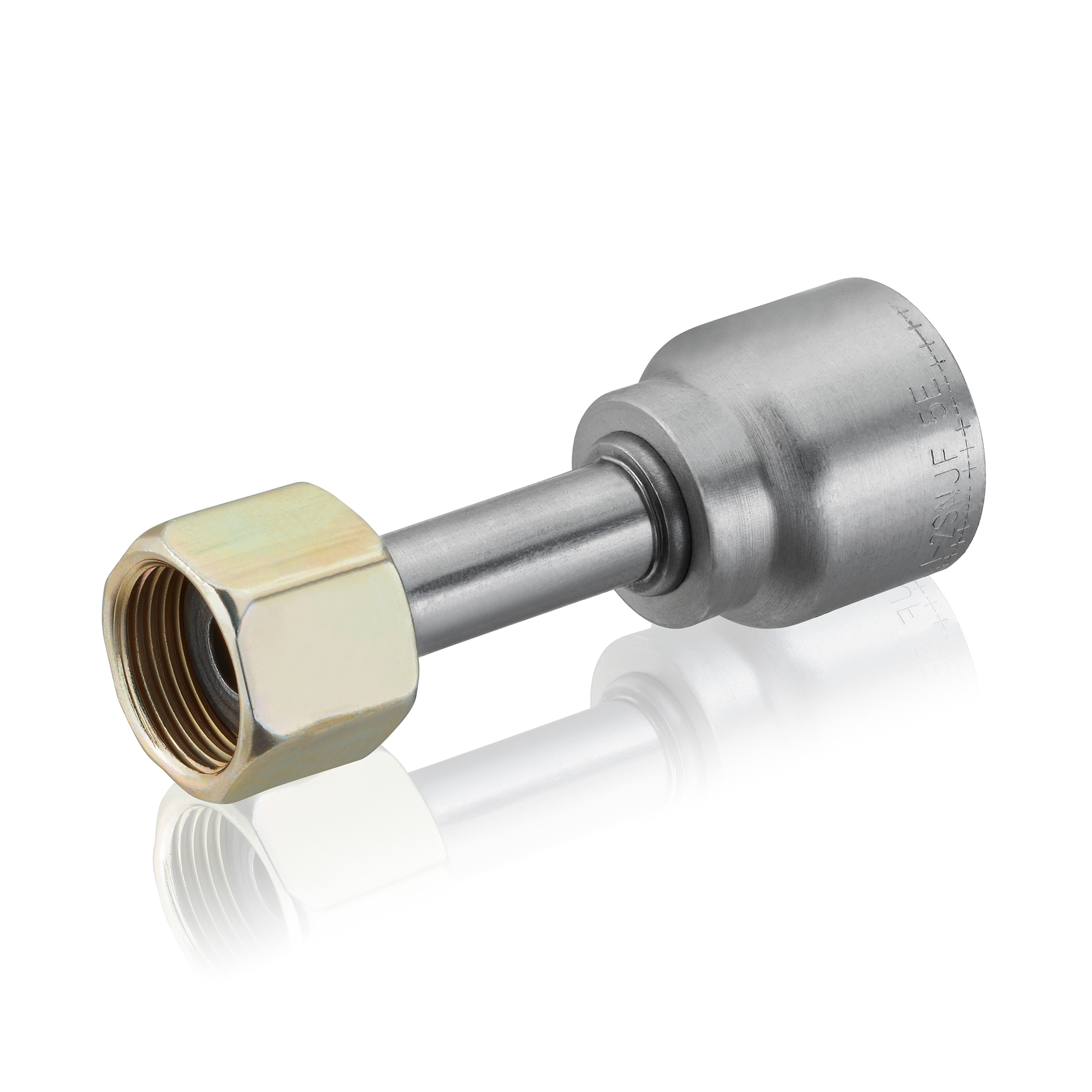

Hydraulikanschluss aus Edelstahl mit Überwurfmutter und Presshülse.

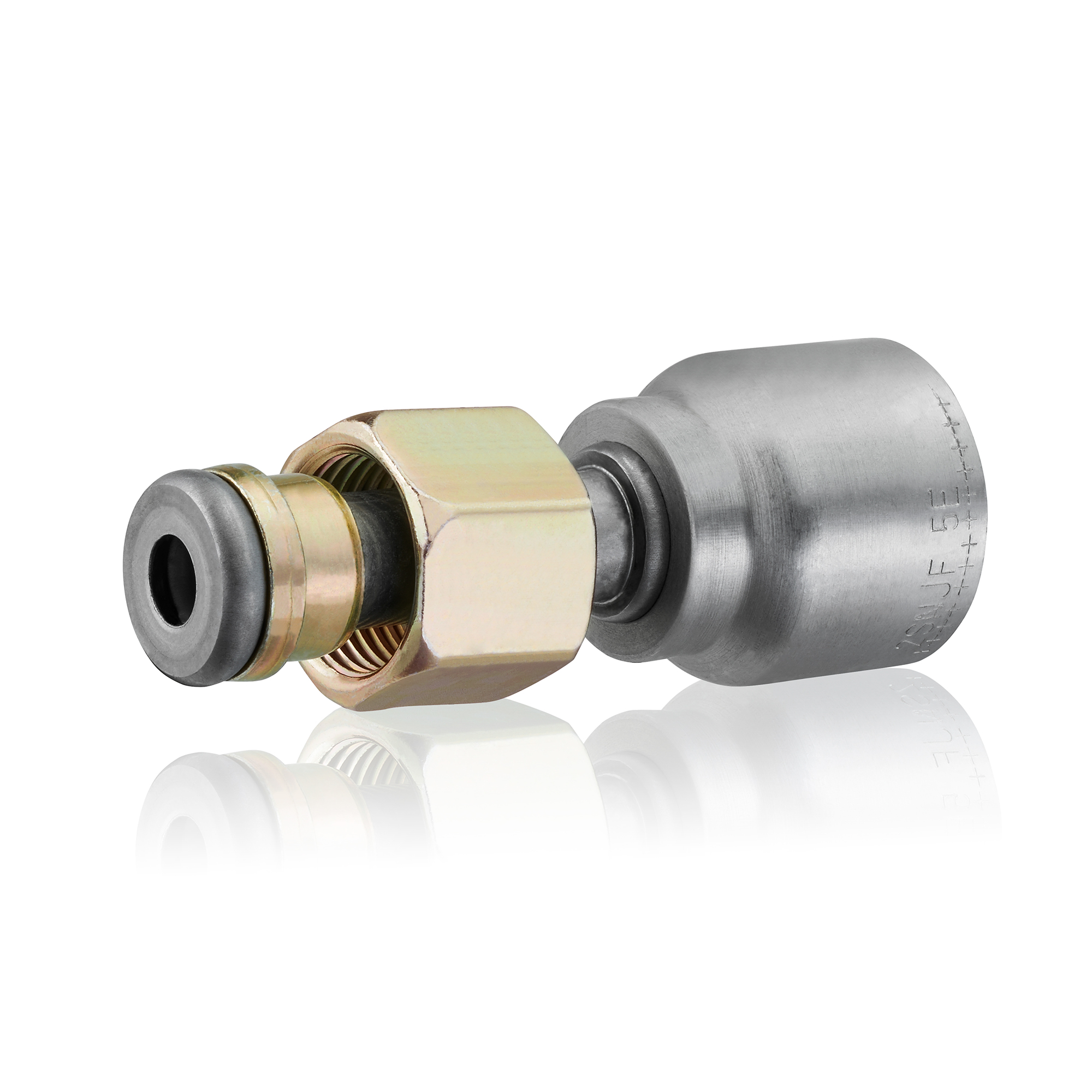

Hydraulikverschraubung mit Überwurfmutter, Presshülse und Stecknippel.

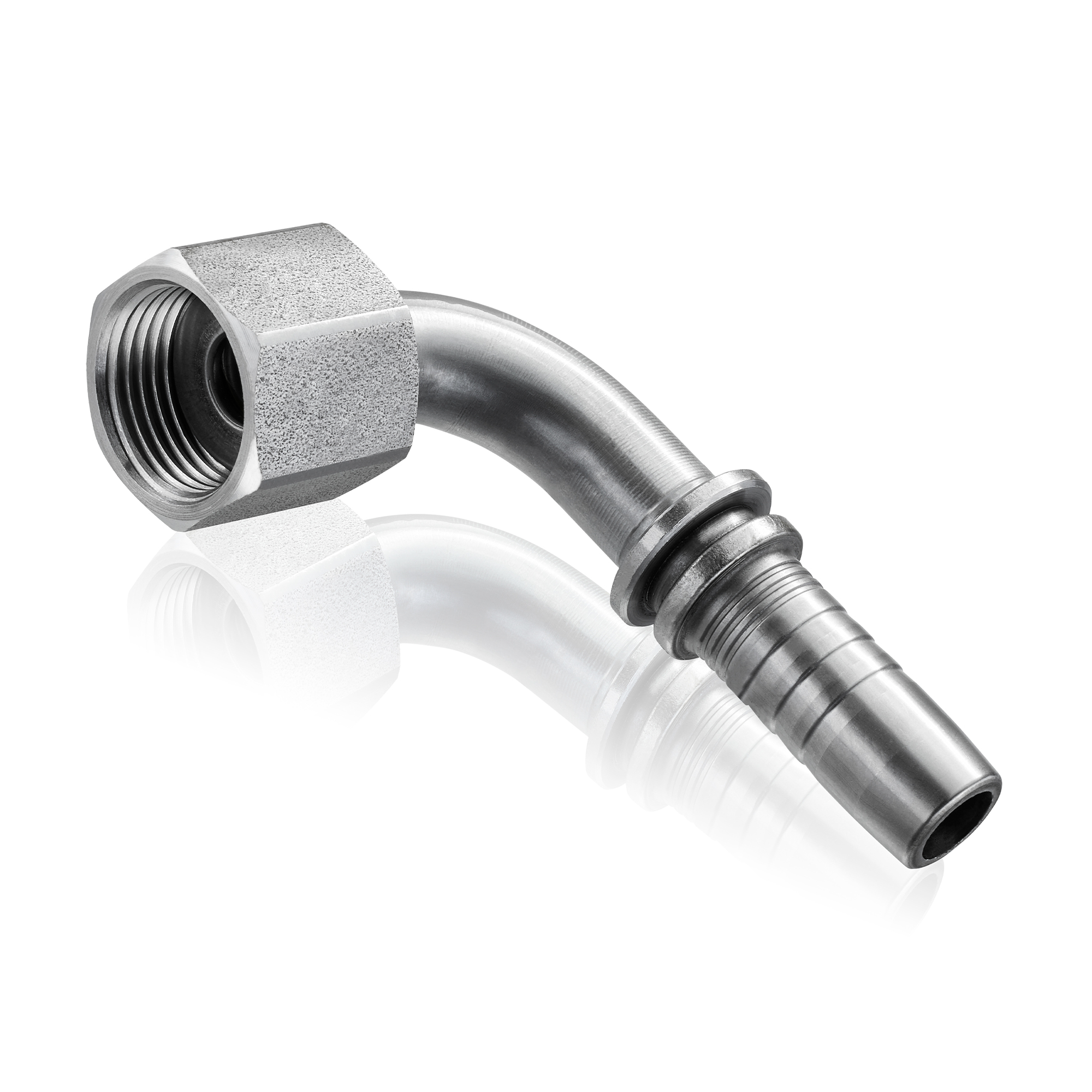

Hydraulik-Winkelverschraubung mit Überwurfmutter und Schlauchanschluss.

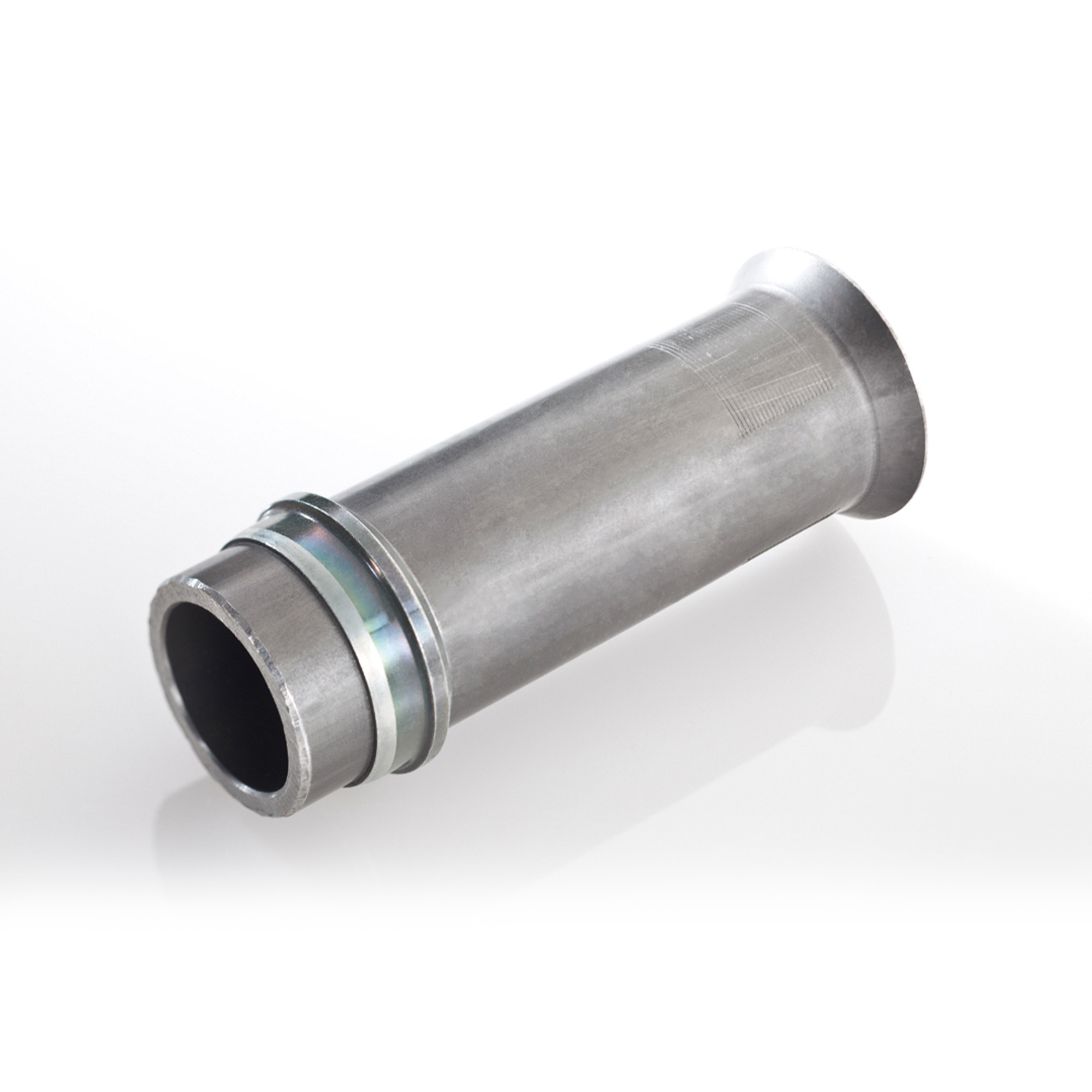

Hydraulikrohr mit Pressanschluss und Bund.

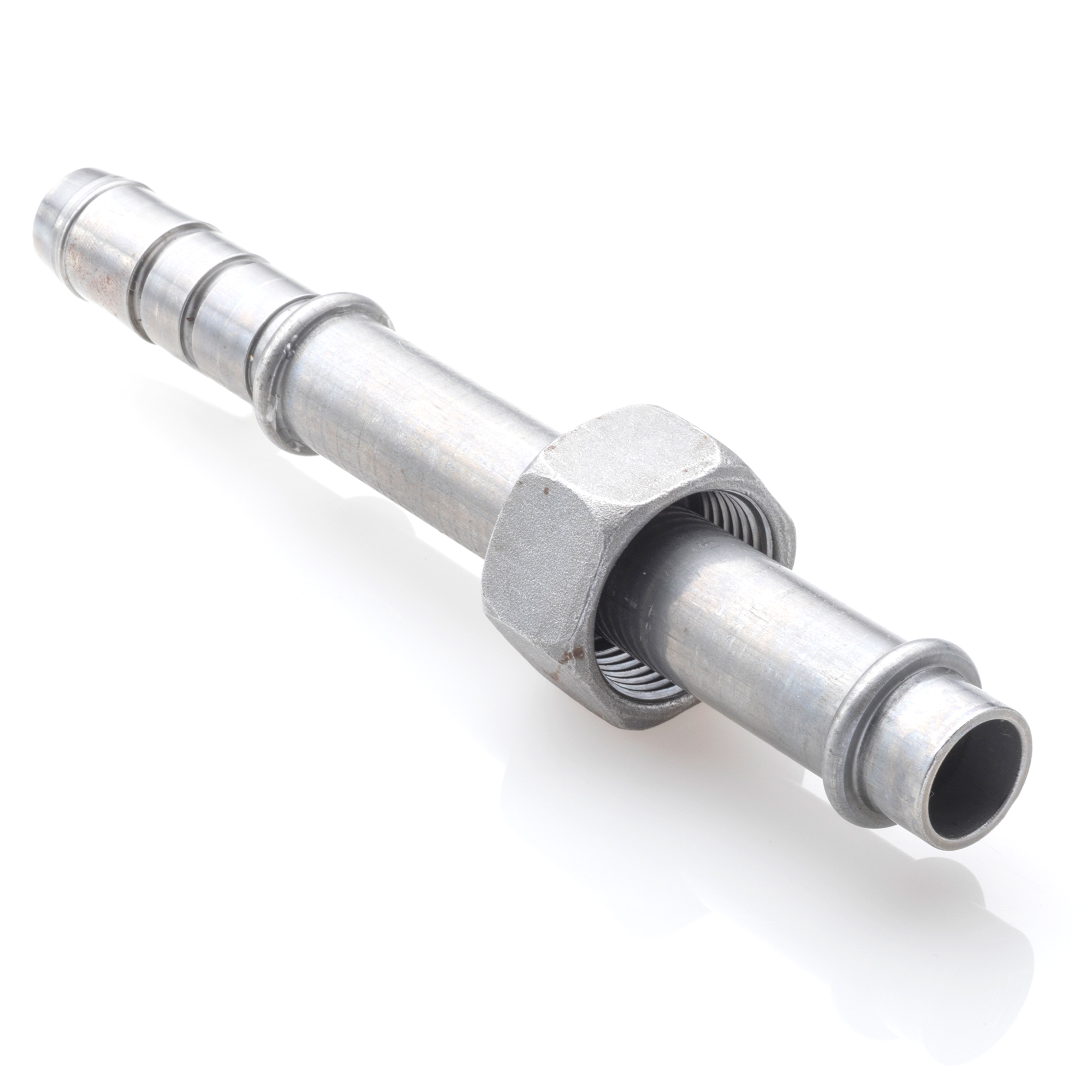

Gerade Hydraulikverschraubung mit Überwurfmutter und Schlauchanschluss.
