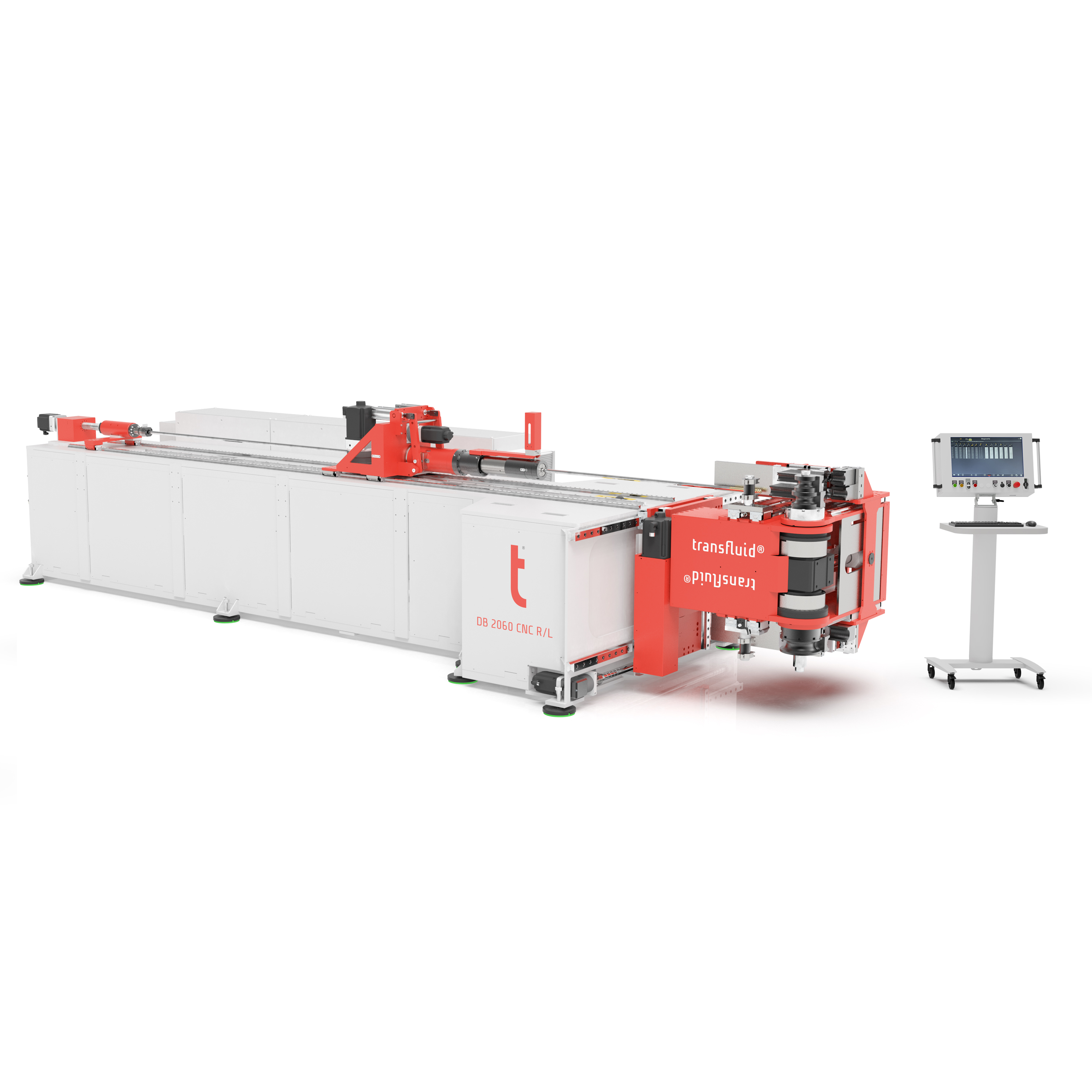

transfluid - t bend VARIOLINE
Servo-electric CNC mandrel bending machines

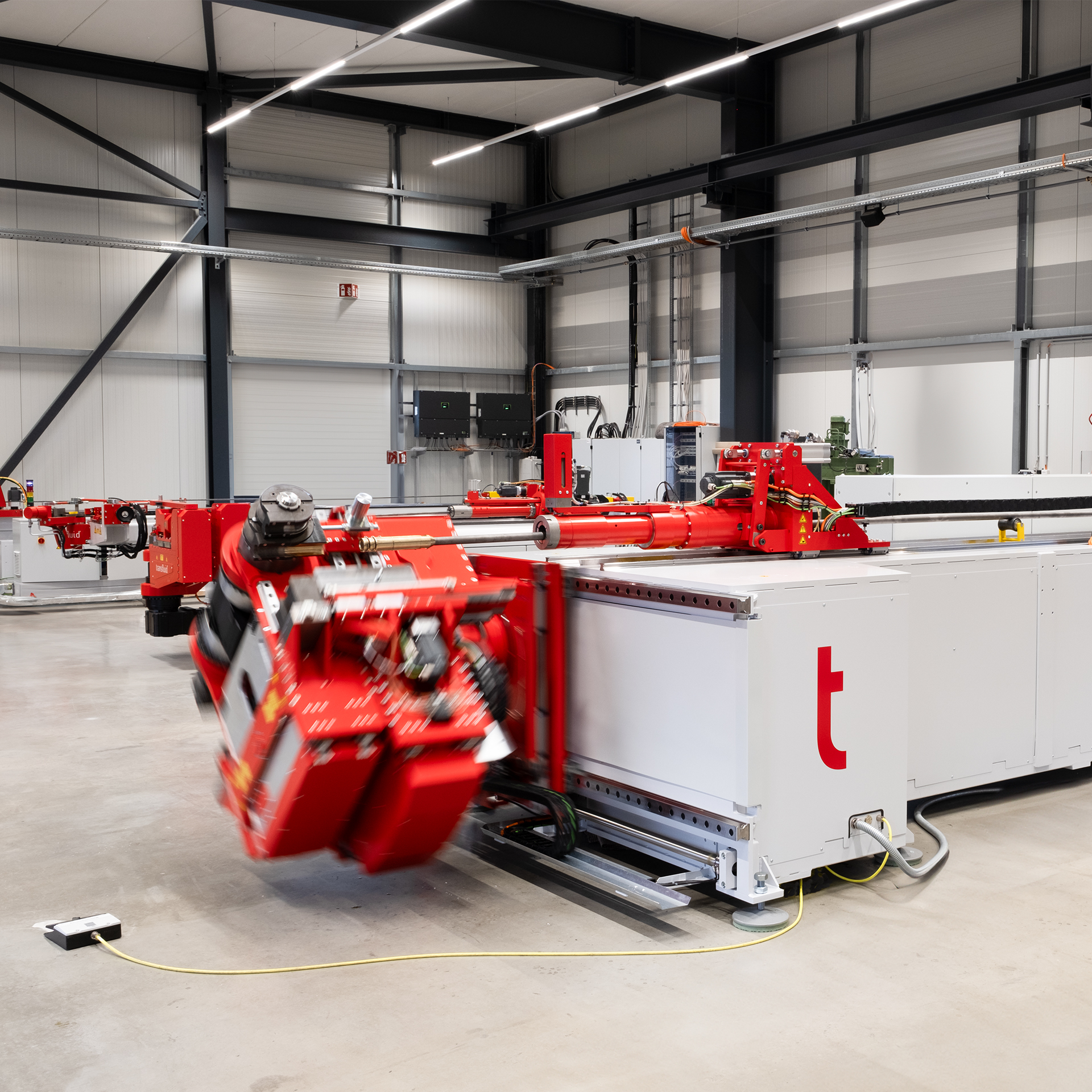

360° bending head right/left
Variable - freely programmable right/left bending- Powerful - synchronized electric axes for optimum cycle times
- Flexible - various radii and the most complex tube geometries thanks to multiple bending levels with automatic level change
- Economical - what used to be rejected can now be produced efficiently in a single clamping operation
EVERYTHING IS POSSIBLE.
t bend VARIOLINE for flexibility and performance.
The t bend VARIOLINE opens up new dimensions in tube processing.
With servo-electric right/left bending technology, optional free-form function and fully automatic head change, it enables even the most complex geometries to be produced in just one clamping operation - quickly, precisely and economically.
Whether for demanding individual parts or high-precision series production, the t bend VARIOLINE sets standards when flexibility and productivity are required.
The t bend VARIOLINE is the solution for companies that accept no limits when it comes to bending technology. It combines cutting-edge technology, maximum flexibility and efficiency - making even the most demanding components feasible.

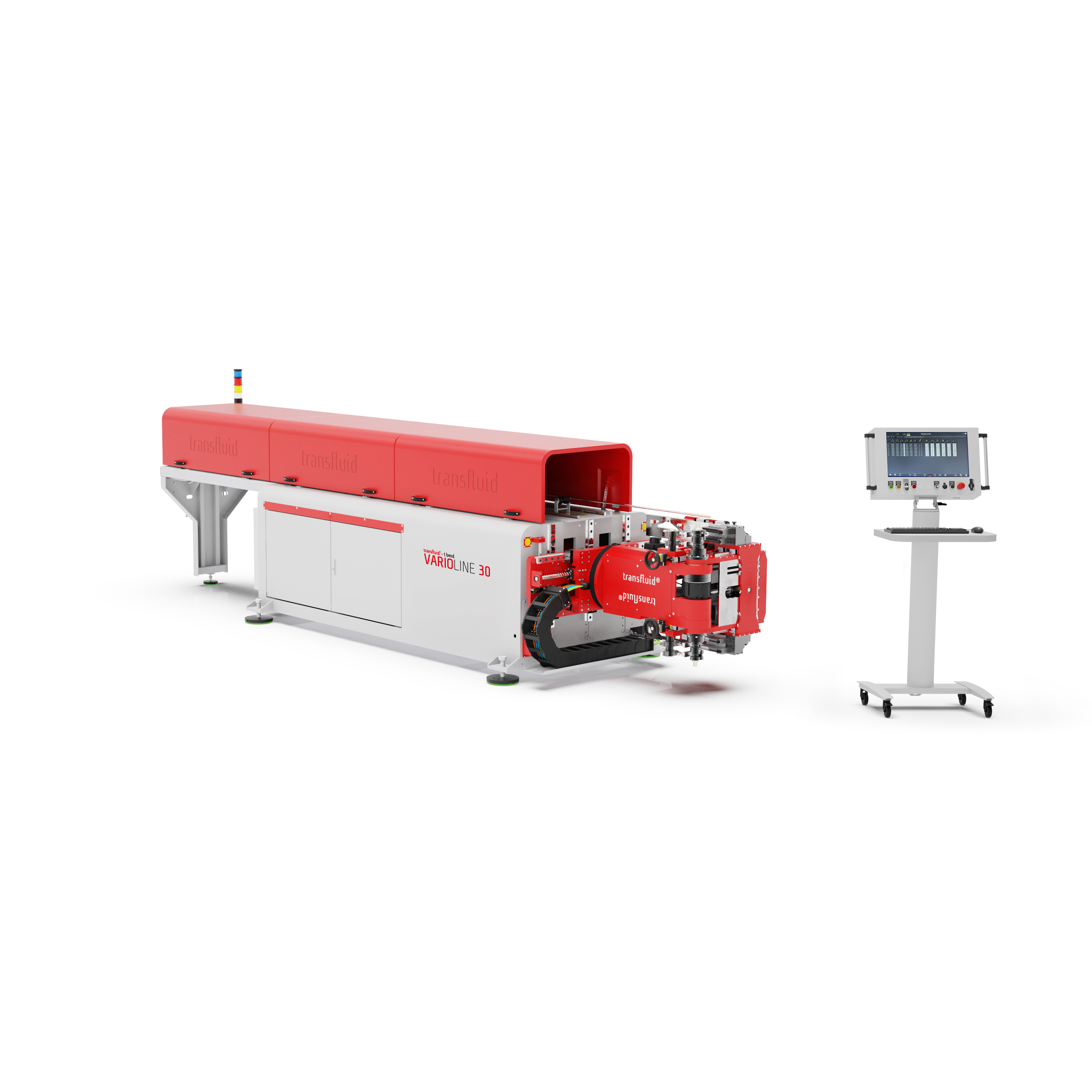

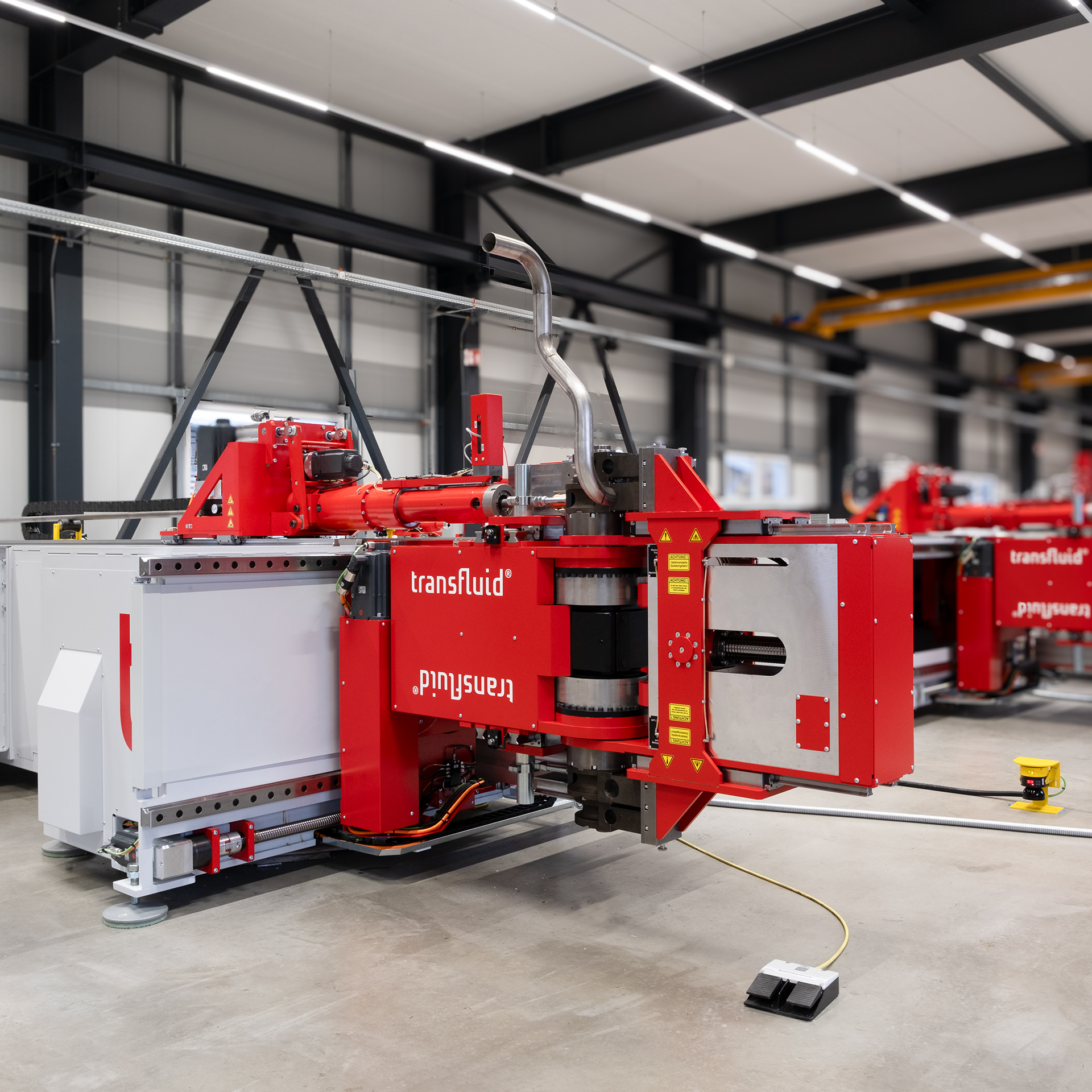

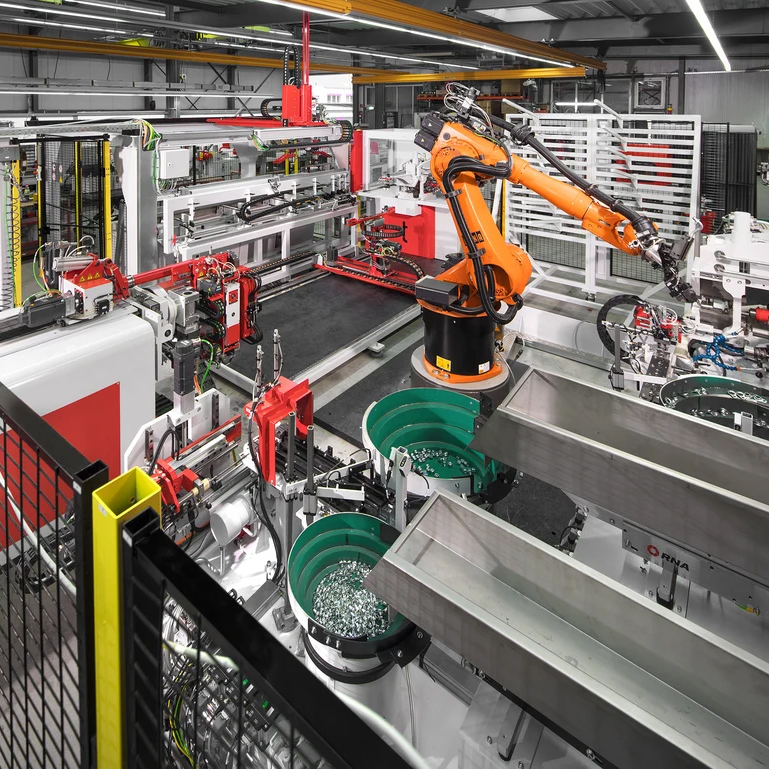

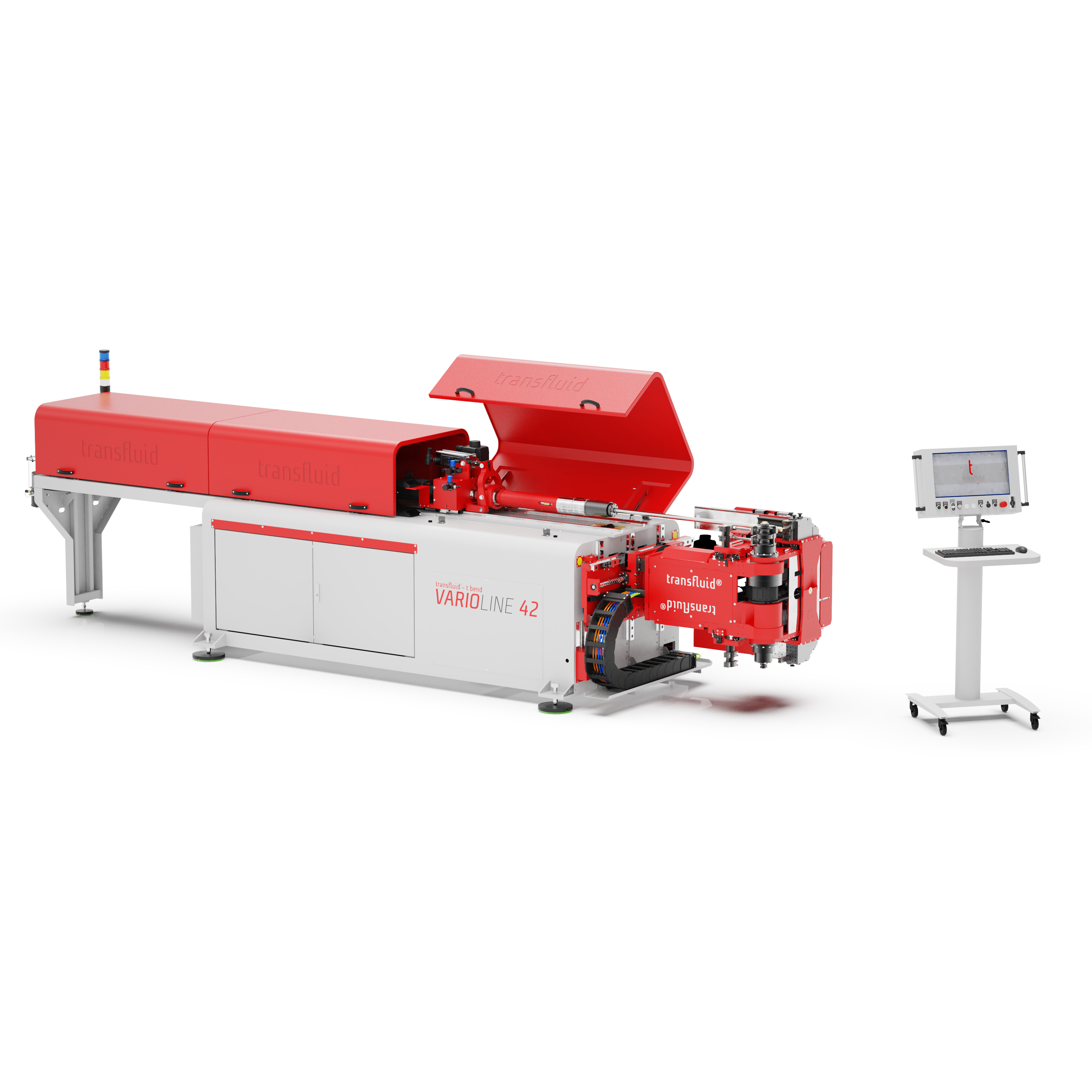

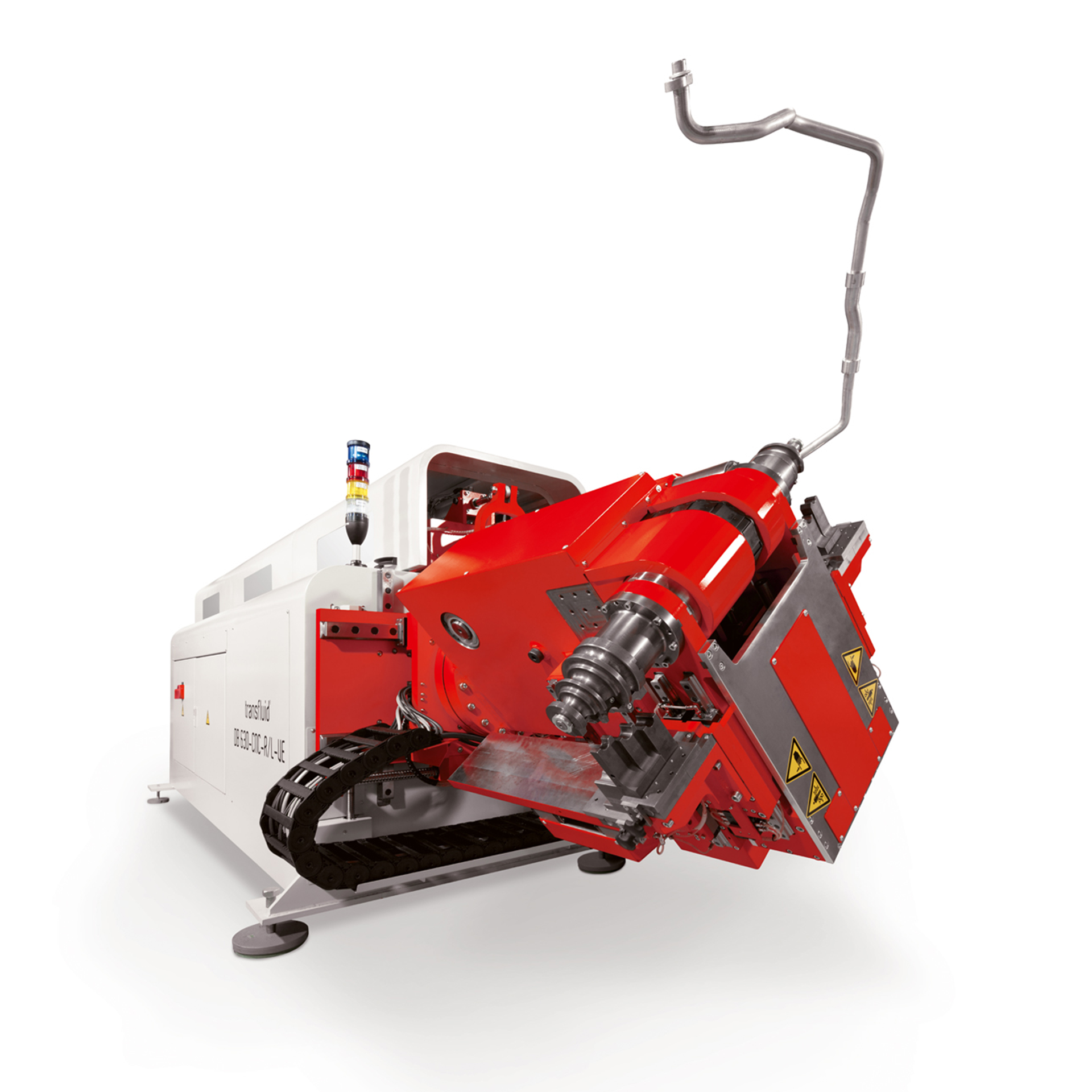

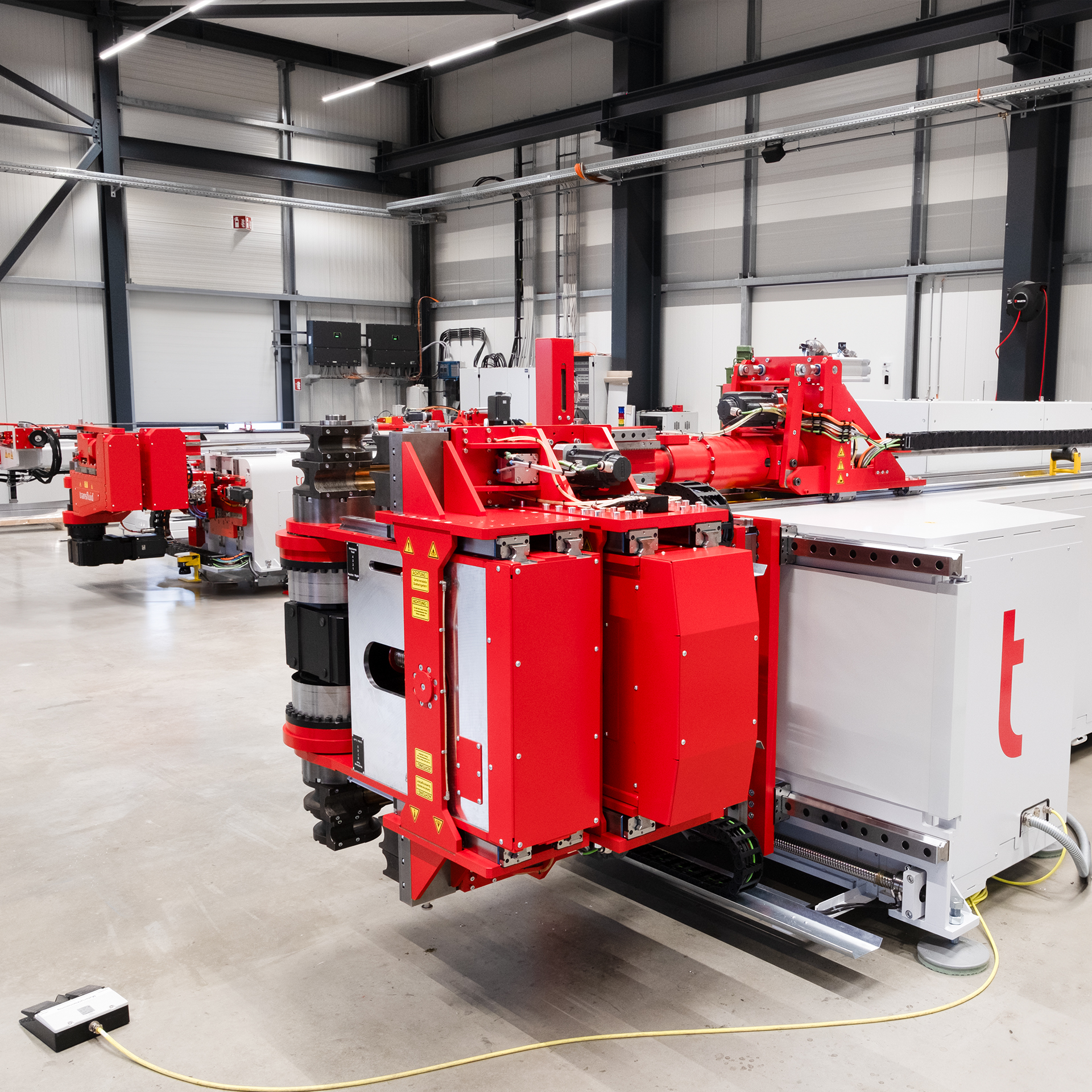

With its flexible automation capability, the t bend VARIOLINE can be seamlessly integrated into modern production processes - as a stand-alone solution or as part of a complex production cell. It combines top performance at the highest level with simple operation, sophisticated features and a wide range of equipment options.
t bend VARIOLINE - cutting-edge technology without limits.
Explore our machine virtually
Move the slider and click on the info points to get more information.
The right machine for your task
Product video

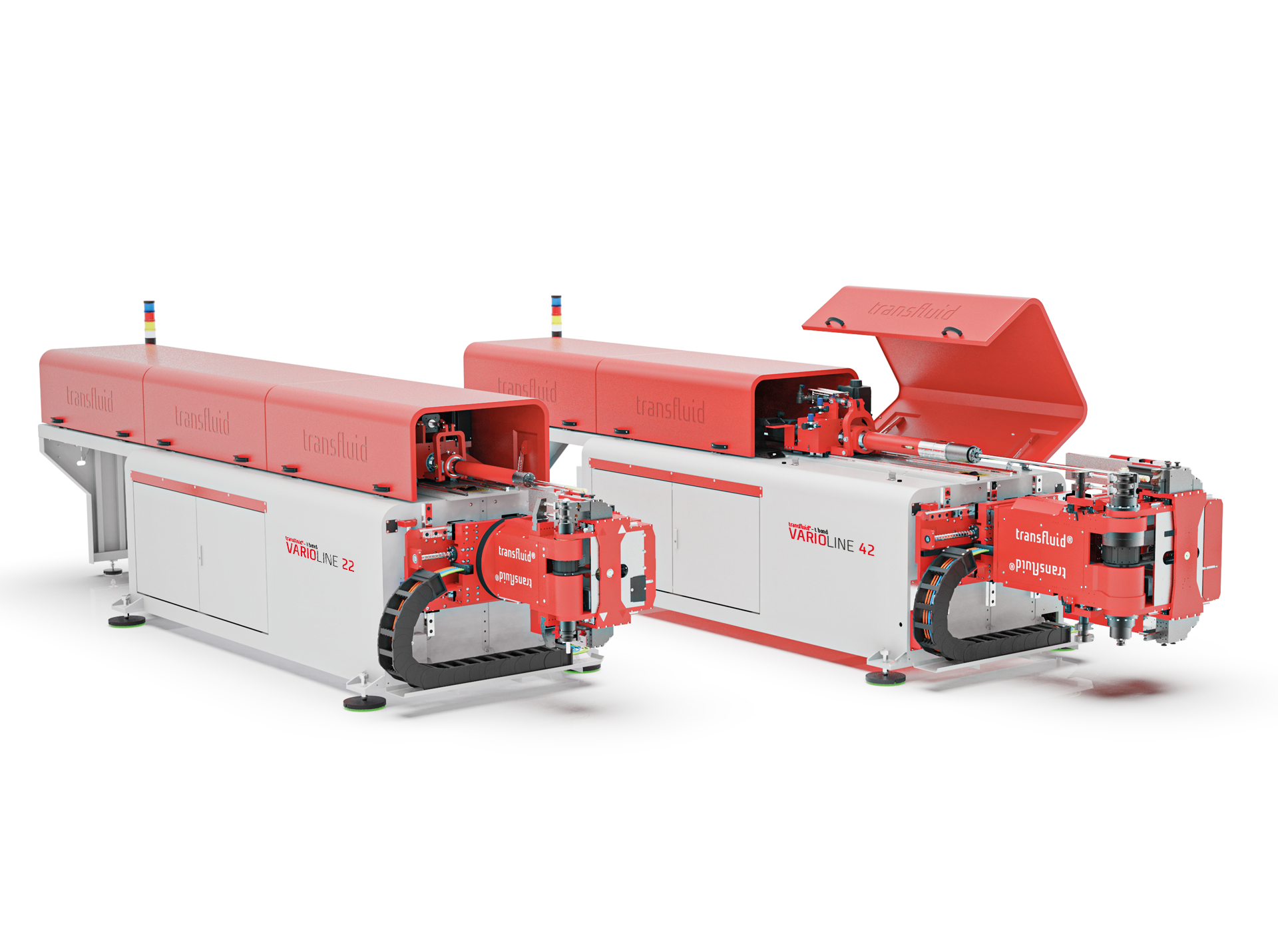

Mandrel bending machines right/left bending with CNC control
Download technical data| Capacities | 4 - 22 mm |
| Max. Max. capacity | 22 x 2 mm (steel) 22 x 1.5 mm (stainless steel) |
| Max. Radius | 66 mm |
| Effective lengths | 2000 mm (standard) 3048 mm 4572 mm 6096 mm (special) |
| Bending axis speed | 300 °/sec. |
| Capacity | 4-30 mm |
| Max. Max. capacity | 30 x 2 mm (steel) 30 x 1.5 mm (stainless steel) |
| Max. Radius | 90 mm |
| Effective lengths | 2000 mm (standard) 3048 mm 4572 mm 6096 mm (special) |
| Bending axis speed | 275 °/sec. |
| Capacity | 6-42 mm |
| Max. Max. capacity | 42 x 3 mm (steel) 42 x 1.5 mm (stainless steel) |
| Max. Radius | 90 mm |
| Effective lengths | 2000 mm (standard) 3048 mm 4572 mm 6096 mm (special) |
| Bending axis speed | 180 °/sec. |
| Capacity | 6-70 mm |
| Max. Max. capacity | 60.3 x 3.9 mm (steel) 70 x 2 mm (steel)* 60.3 x 2.7 mm (stainless steel) |
| Max. Radius | 180 mm |
| Effective lengths | 3048 mm (standard) 4572 mm 6096 mm (special) |
| Bending axis speed | 100 °/sec. |

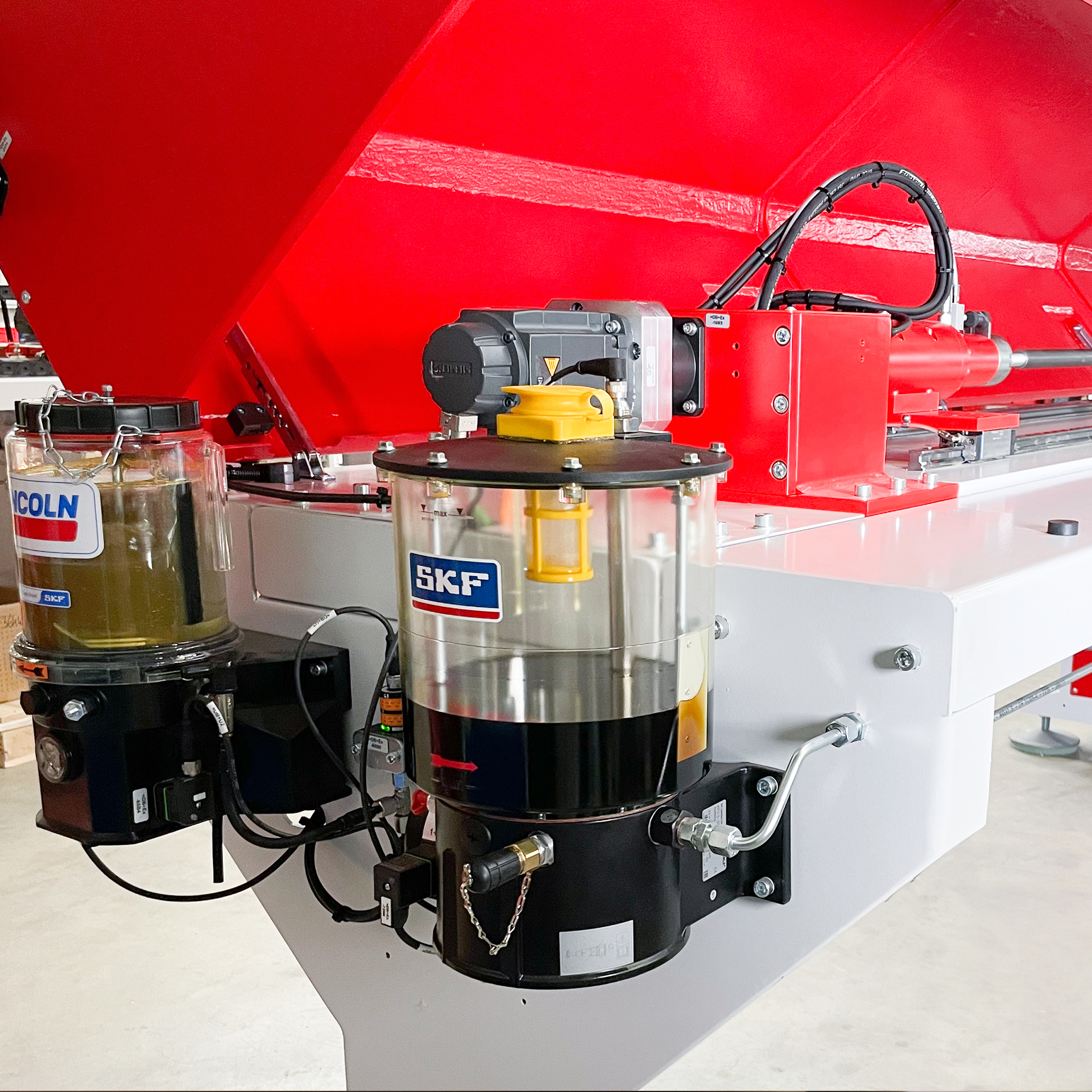

Your advantages at a glance
-

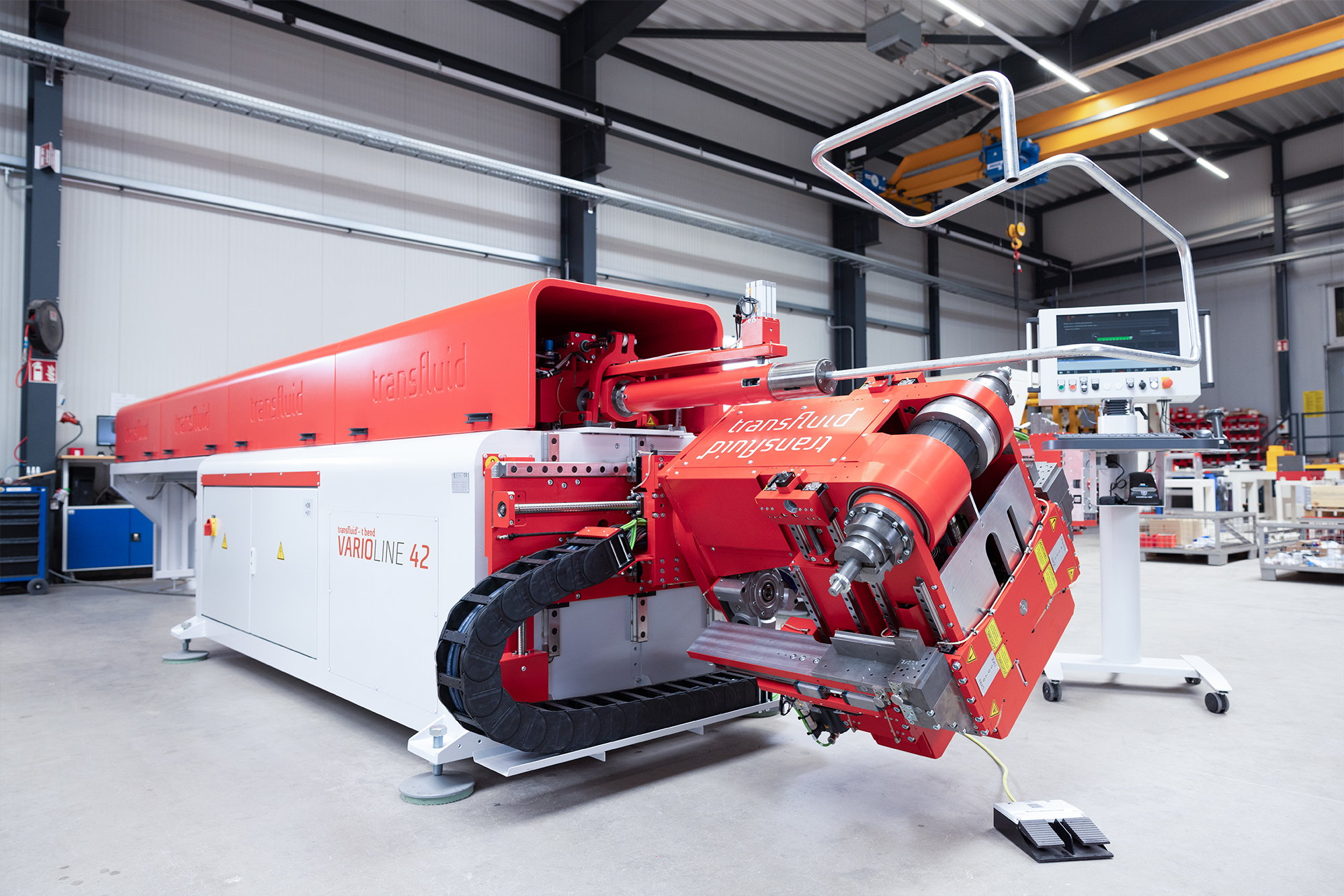

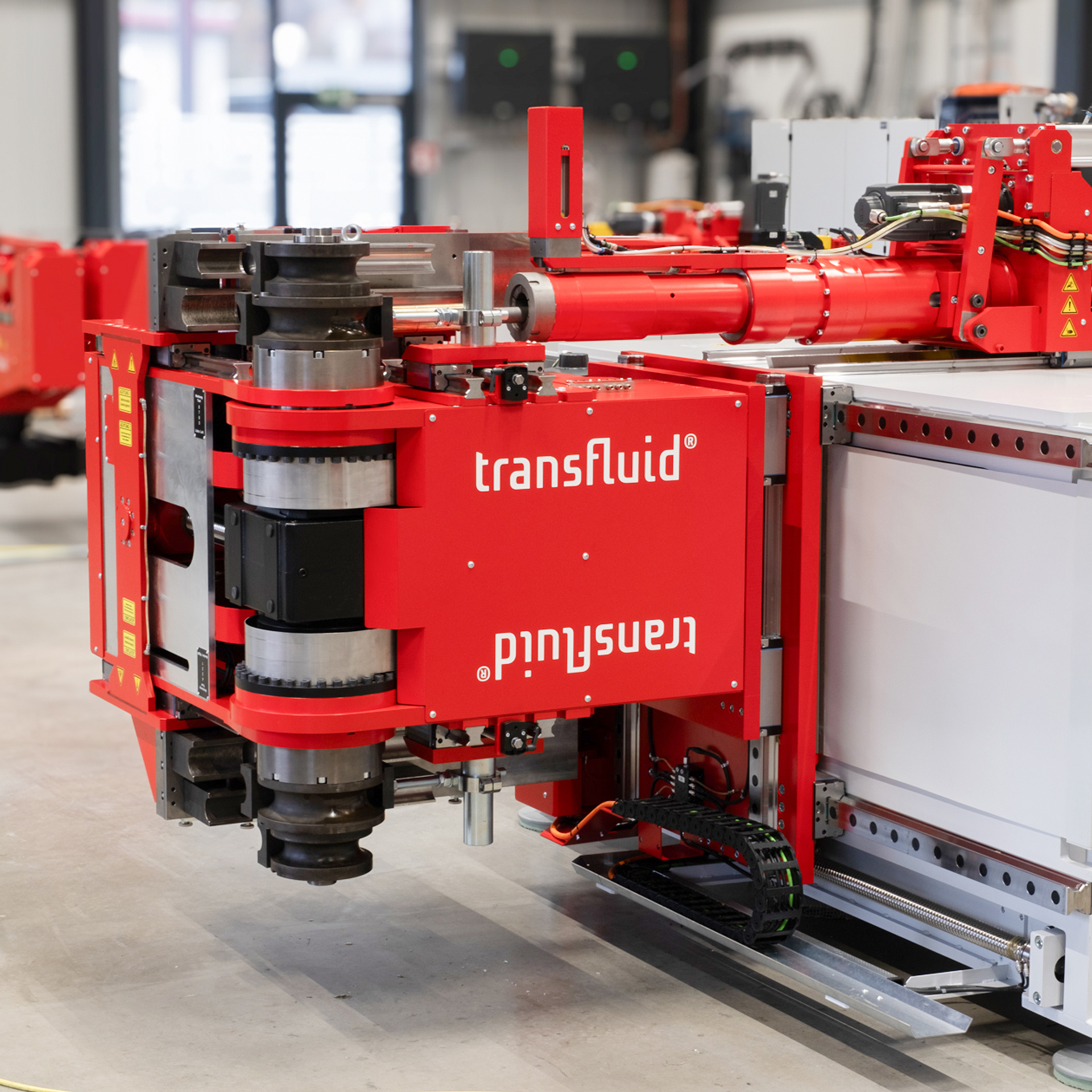

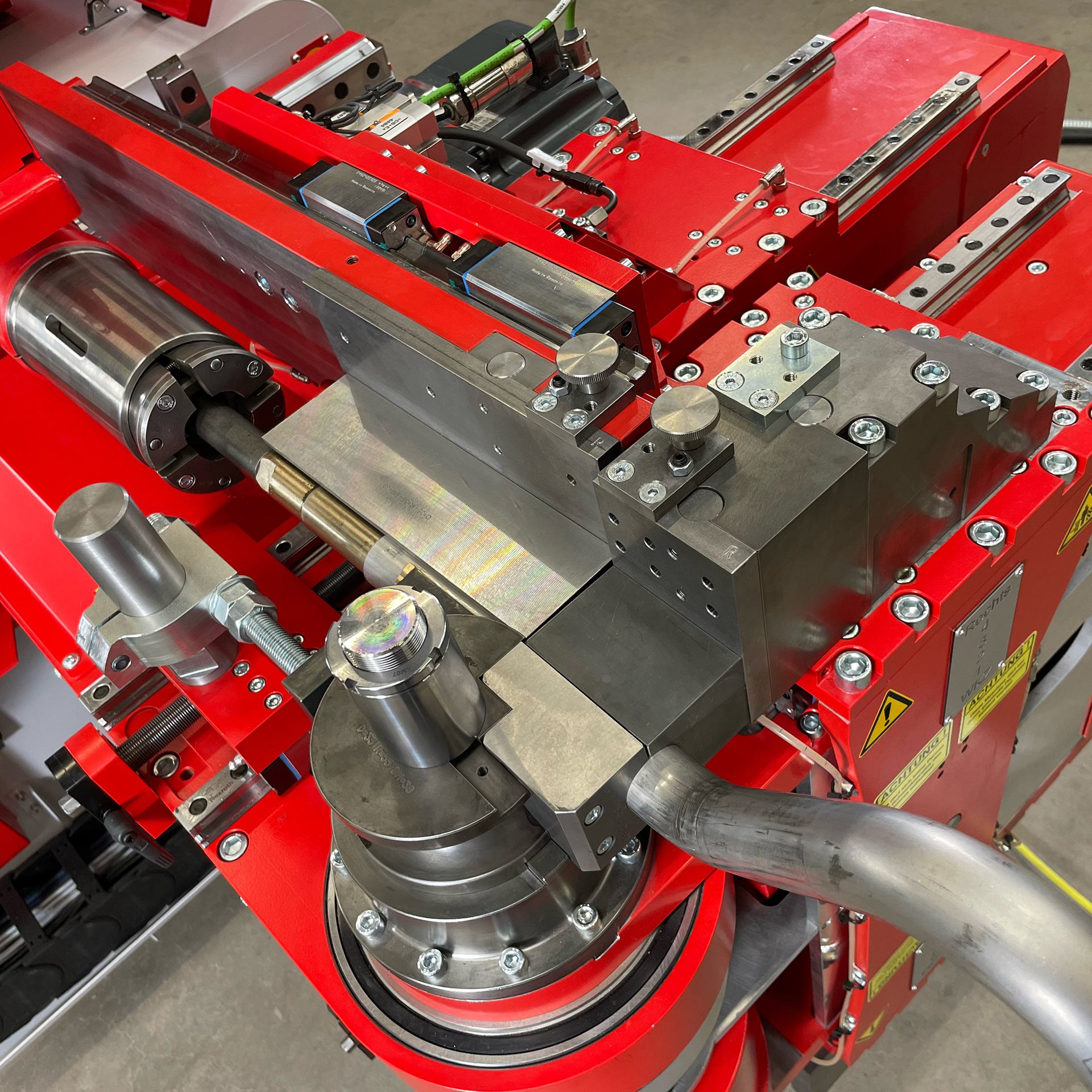

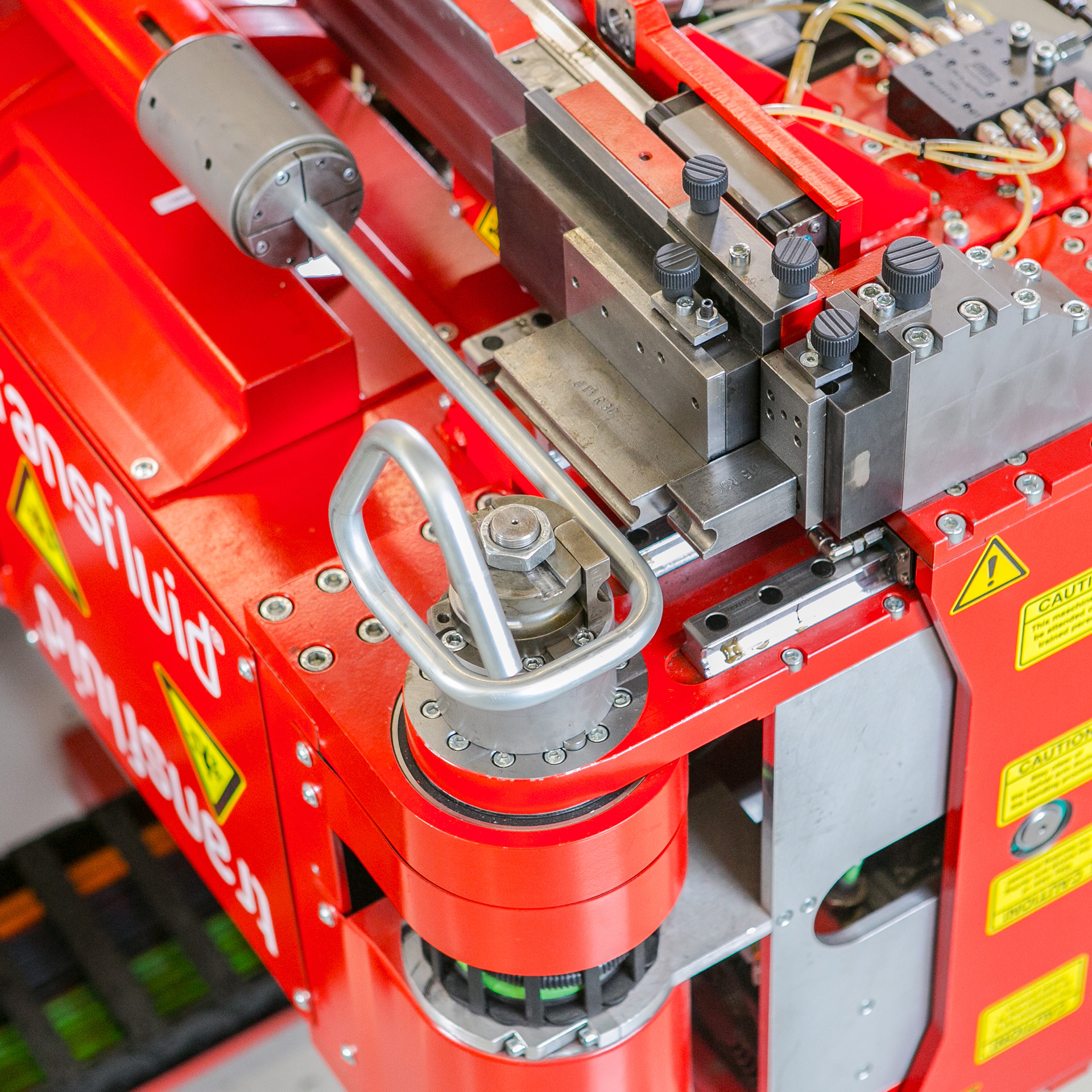

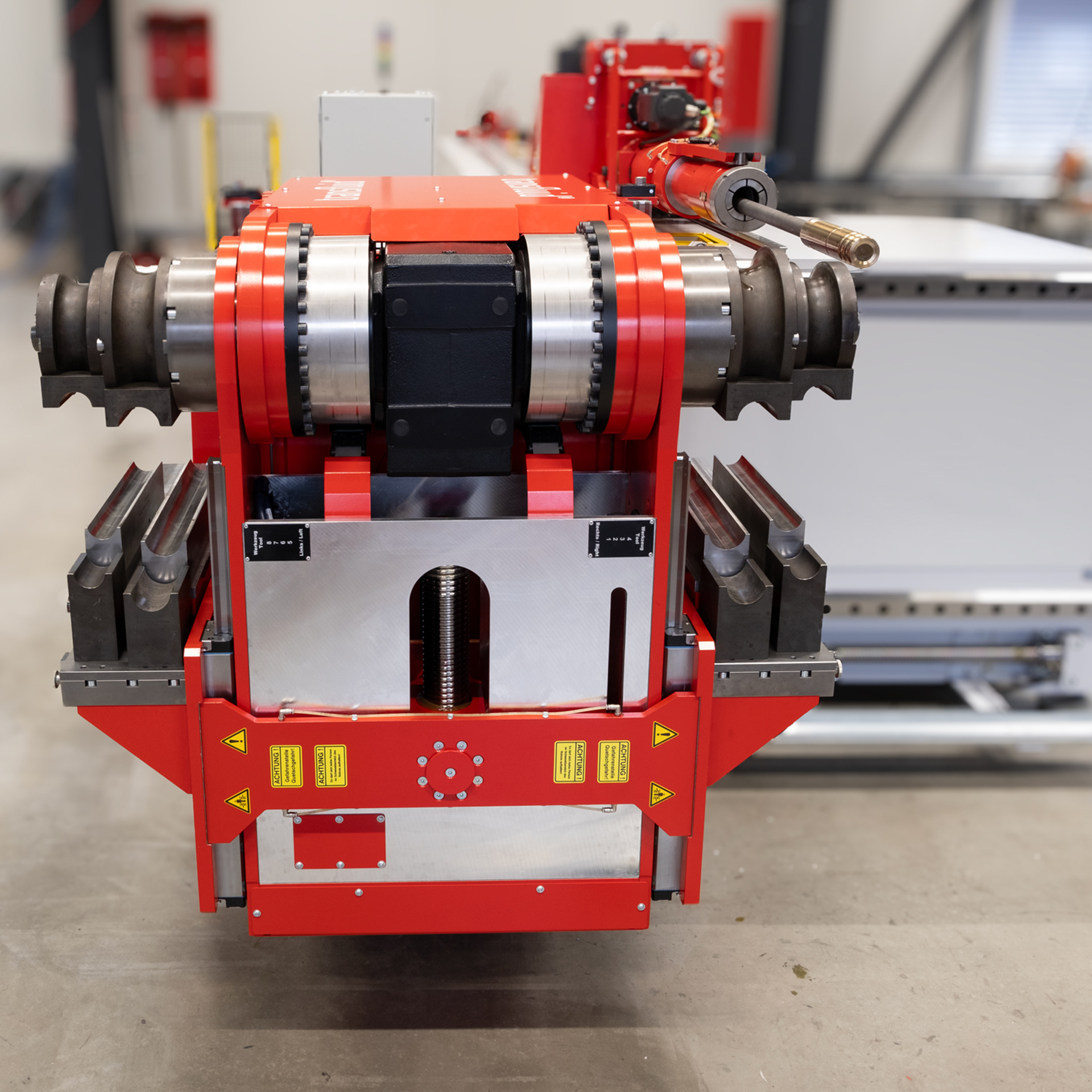

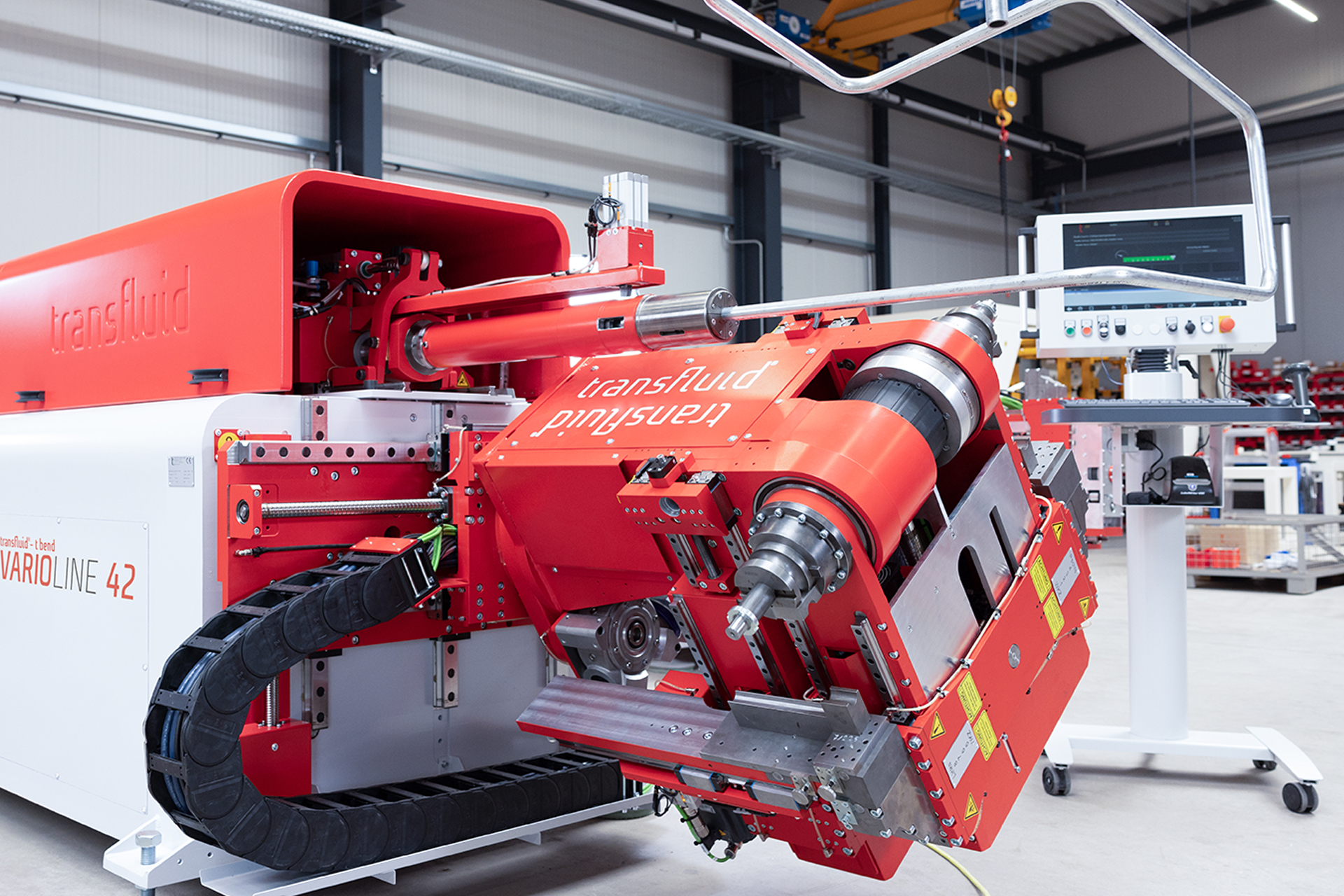

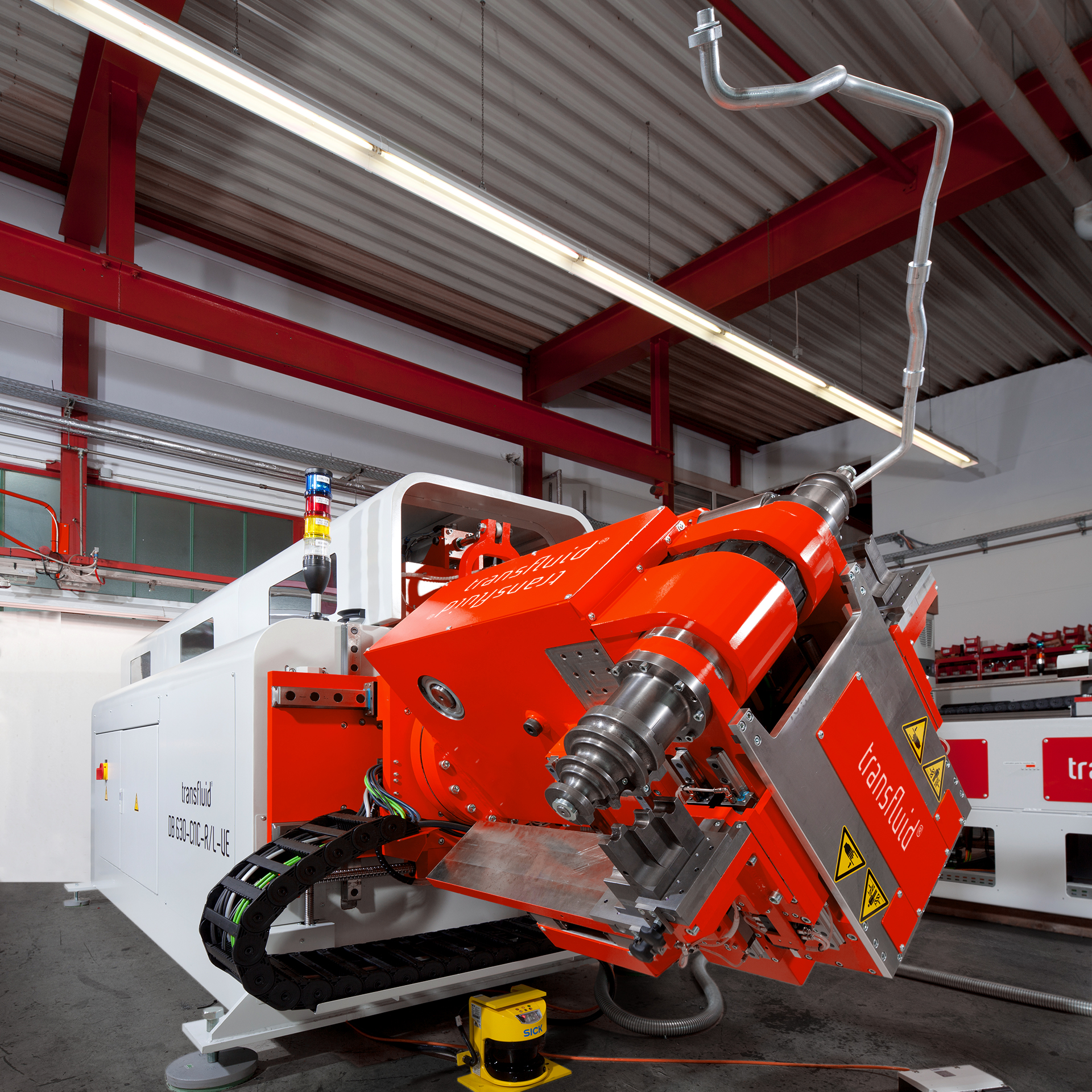

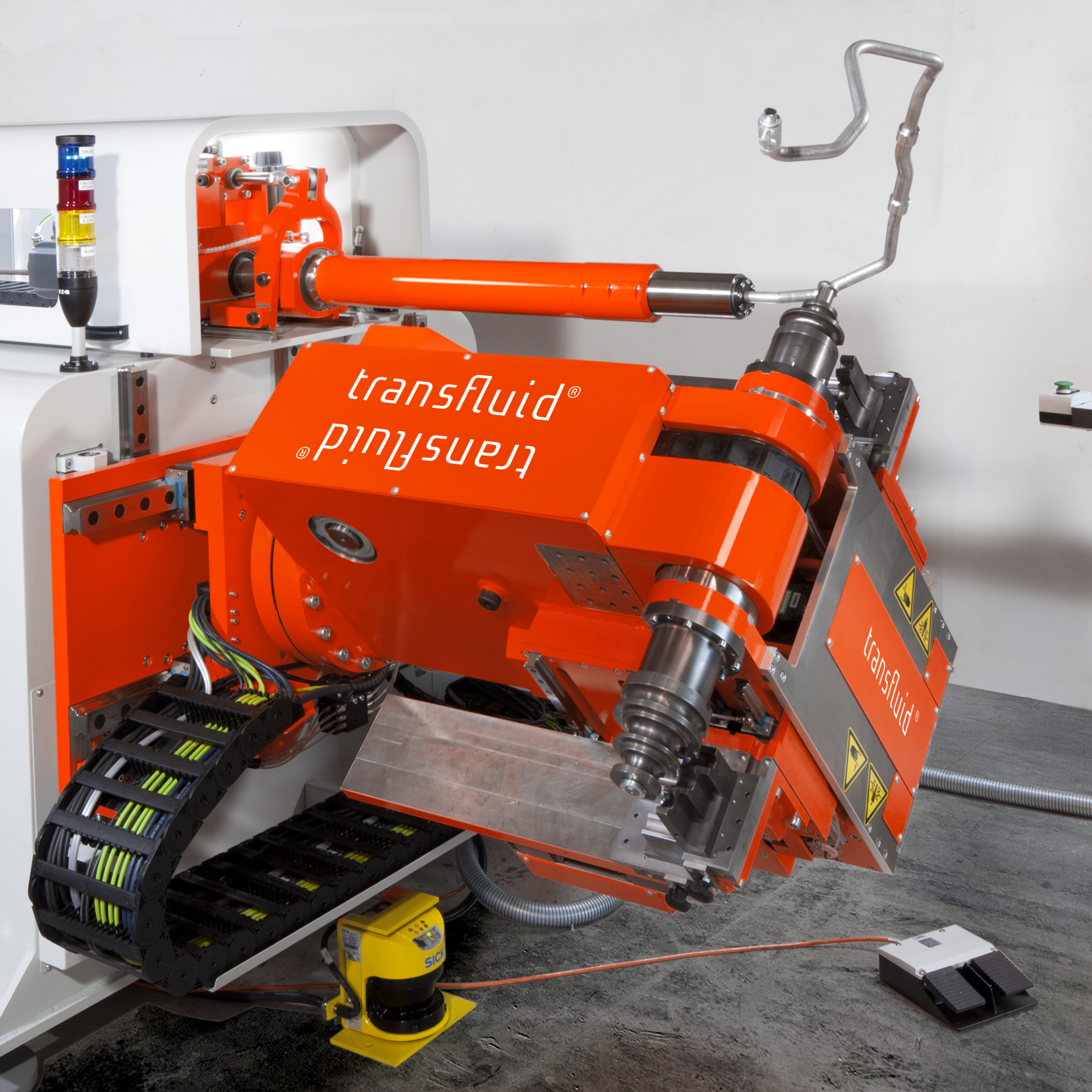

360° HEAD

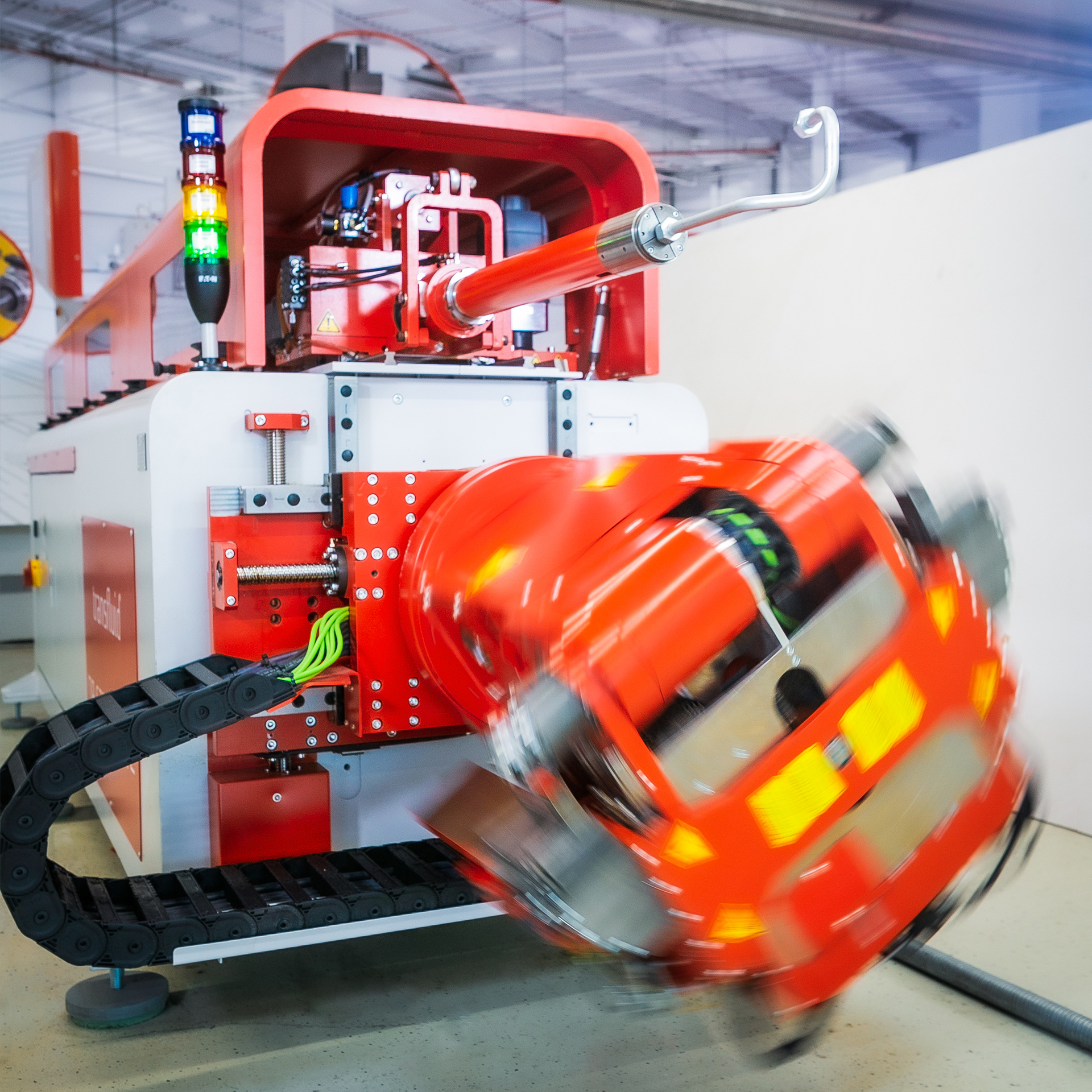

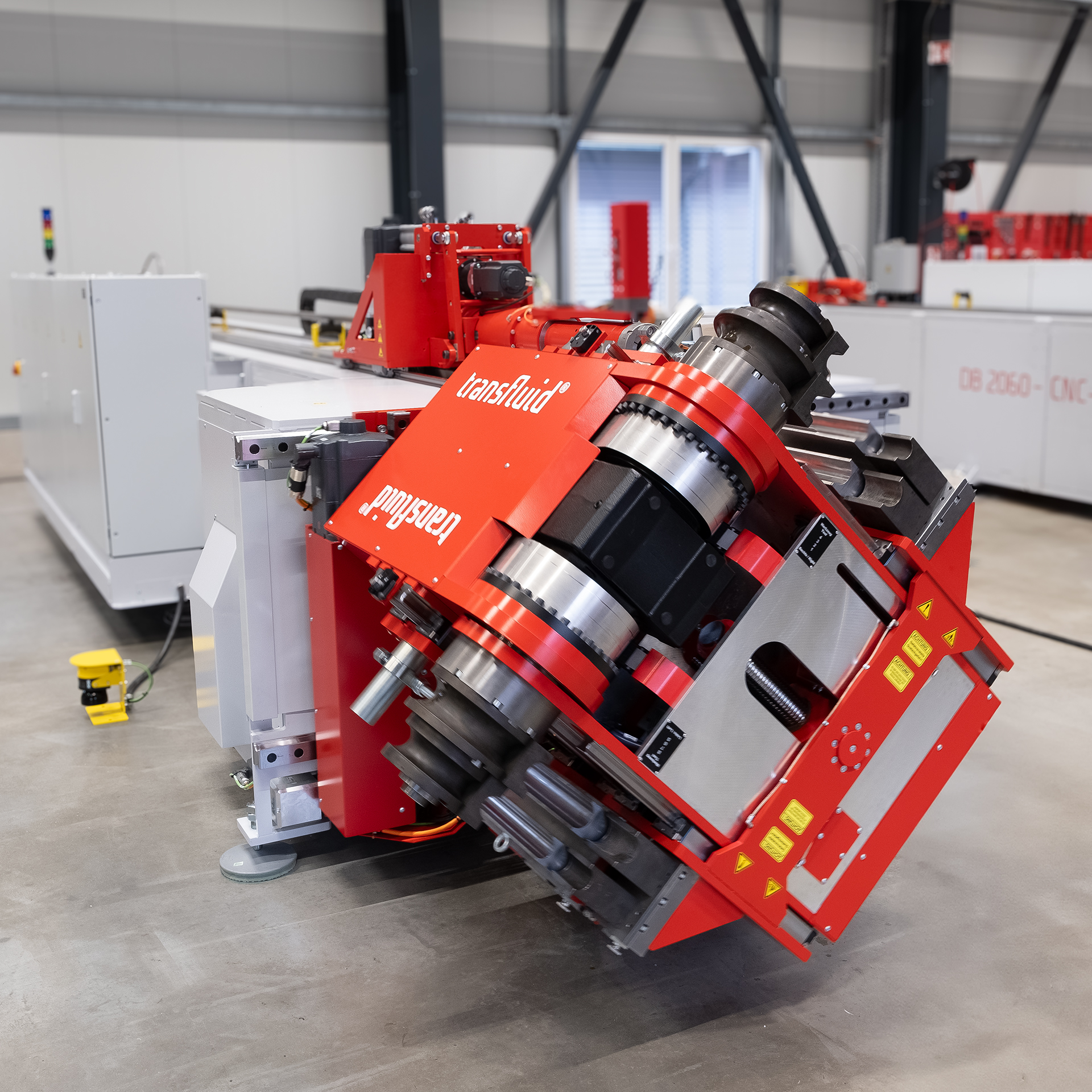

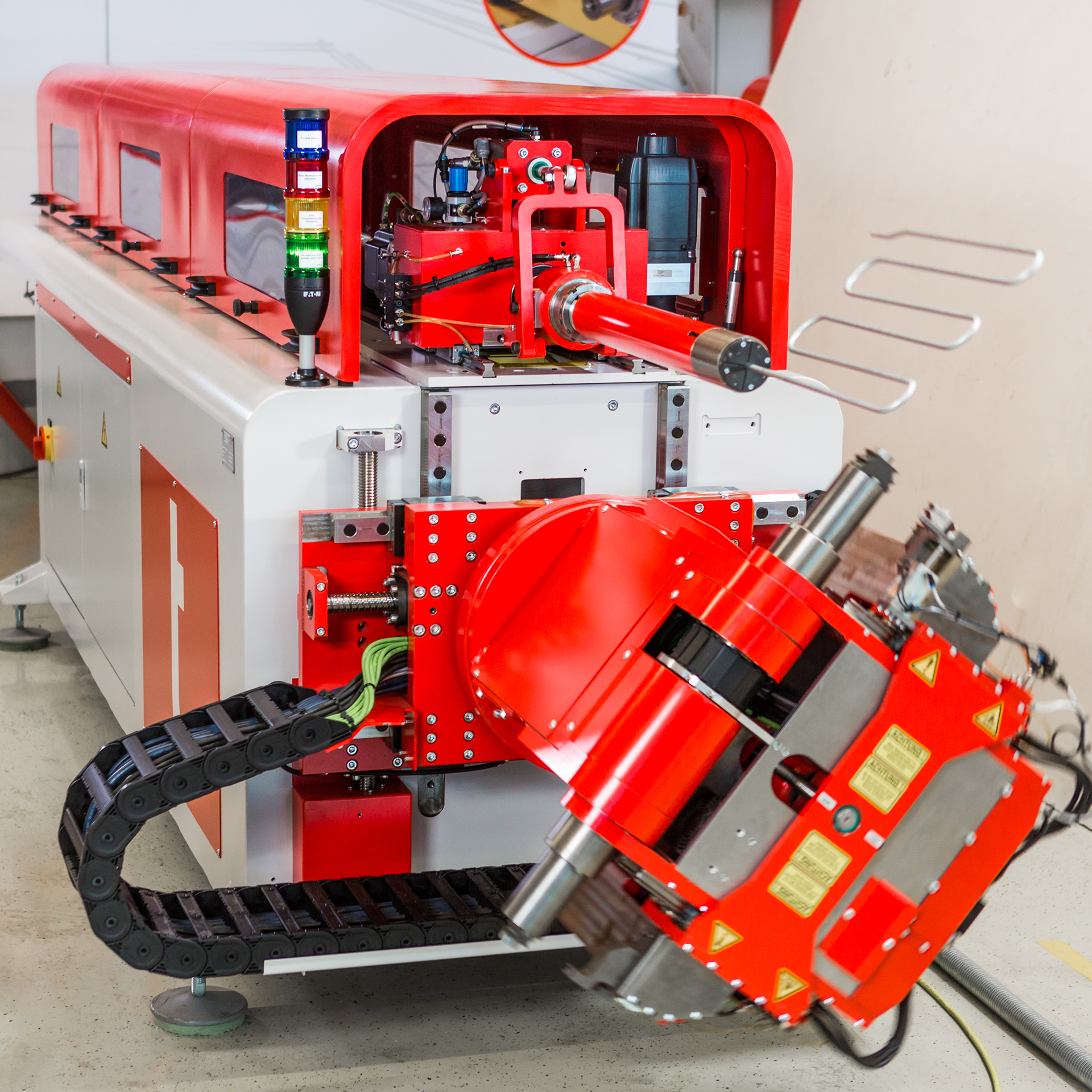

Freely positionable, with horizontal and vertical axis, enables right and left bending in one operation.
-

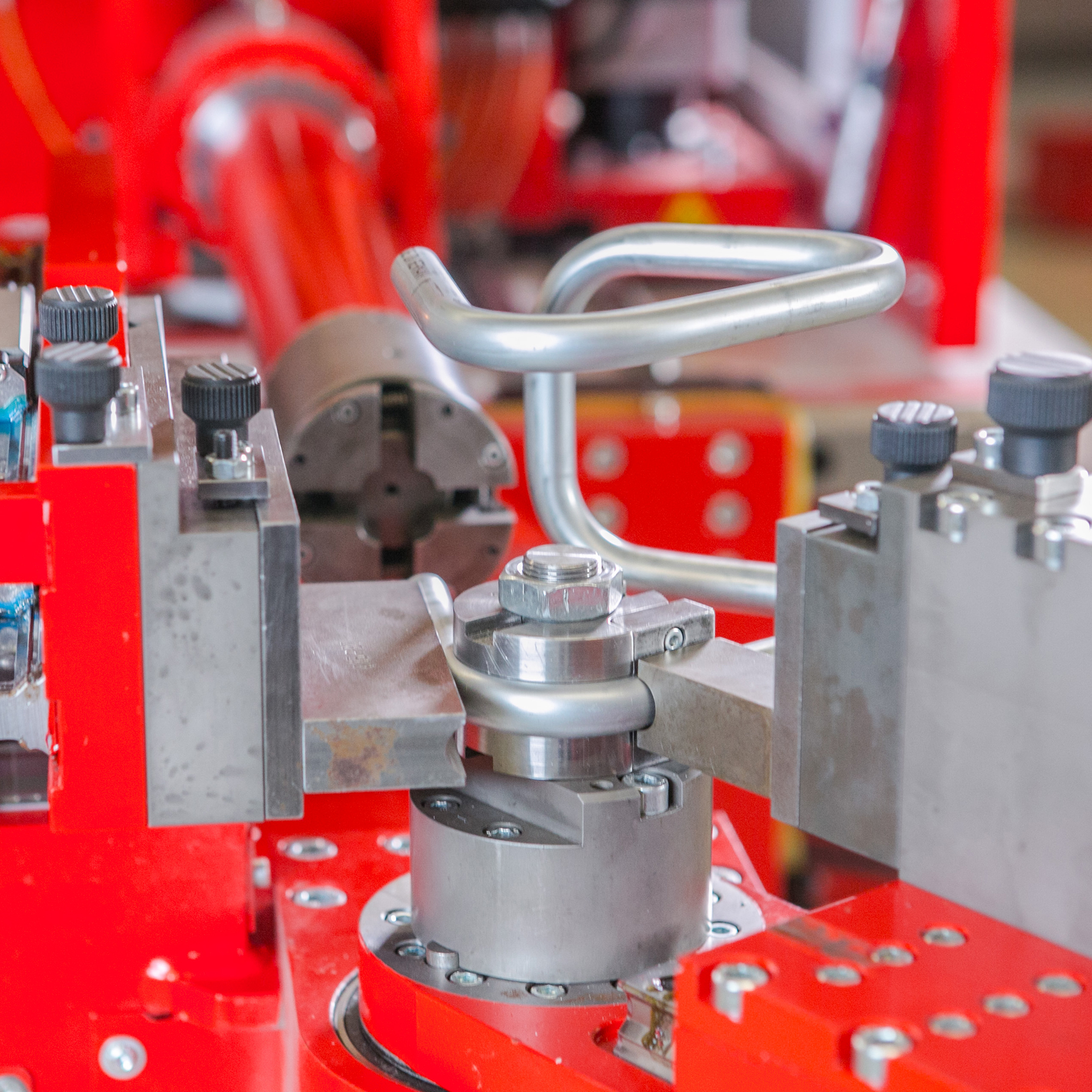

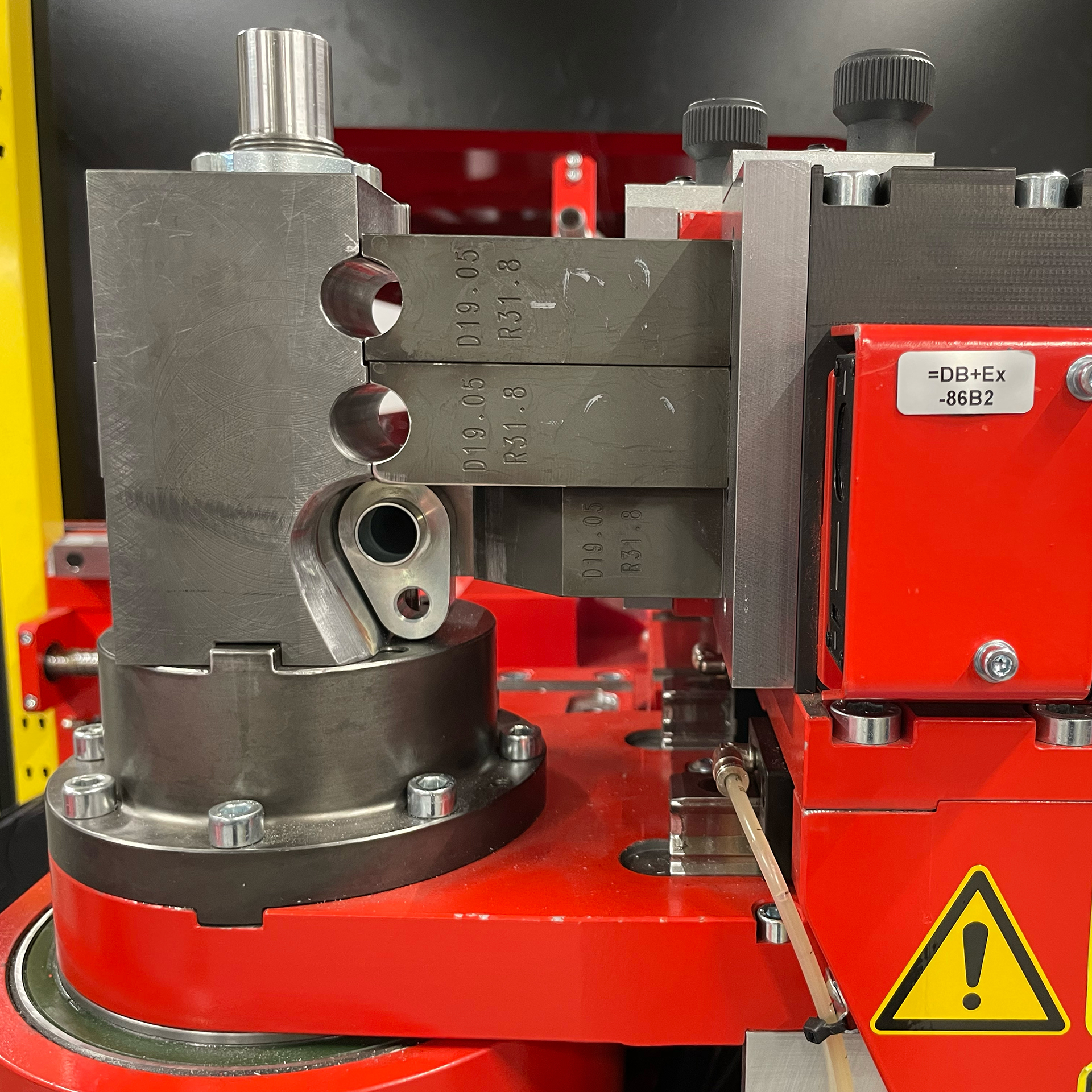

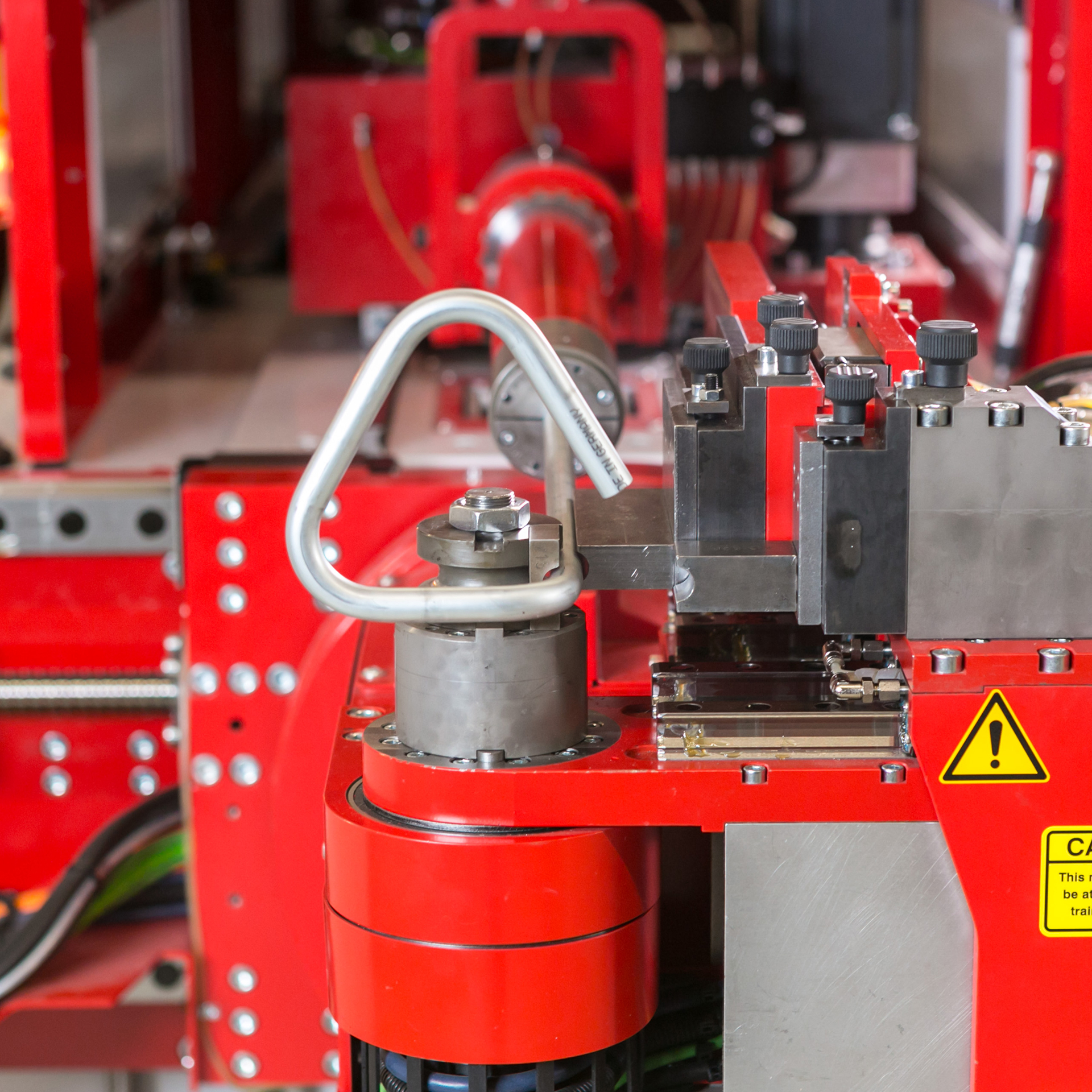

MULTI-STAGE BENDING

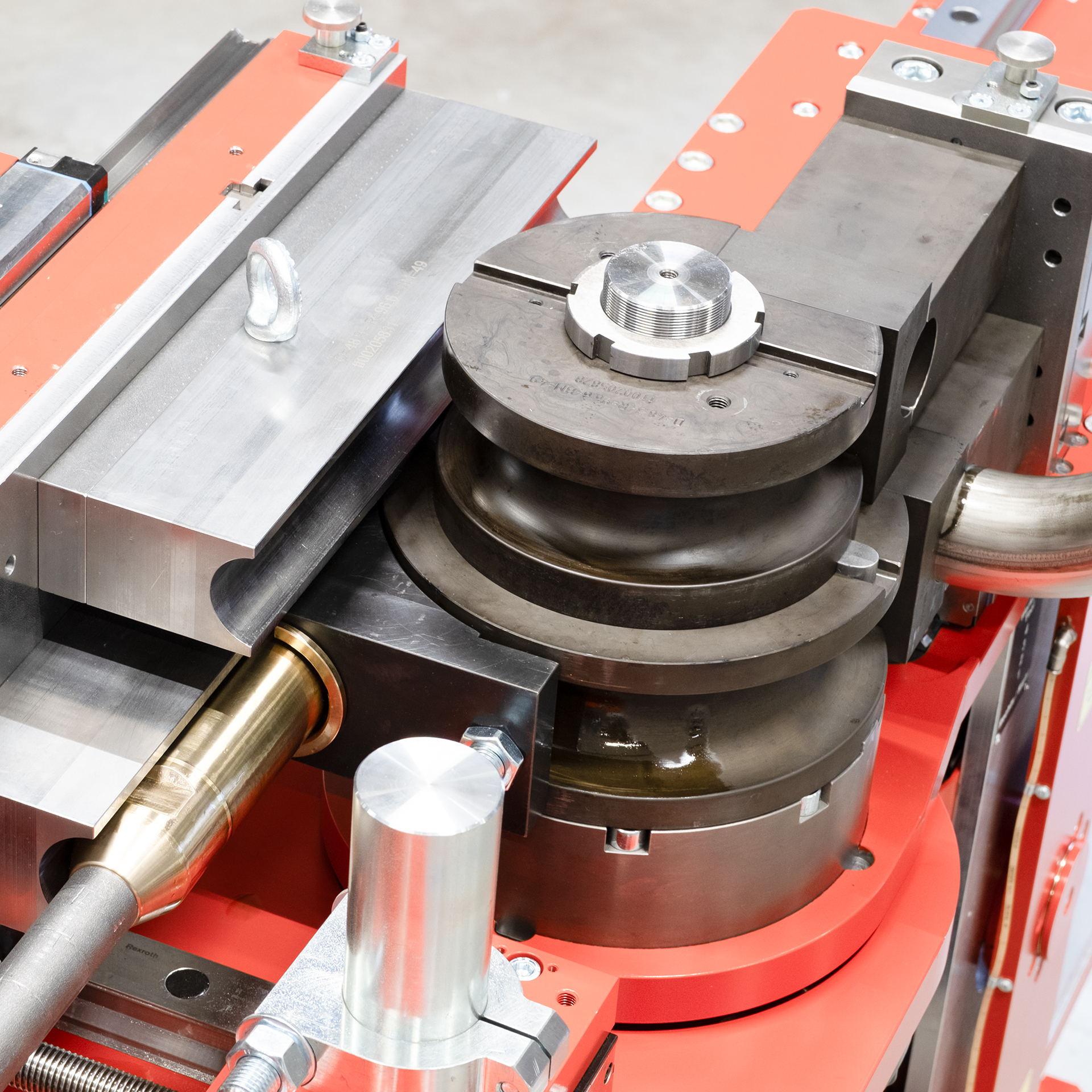

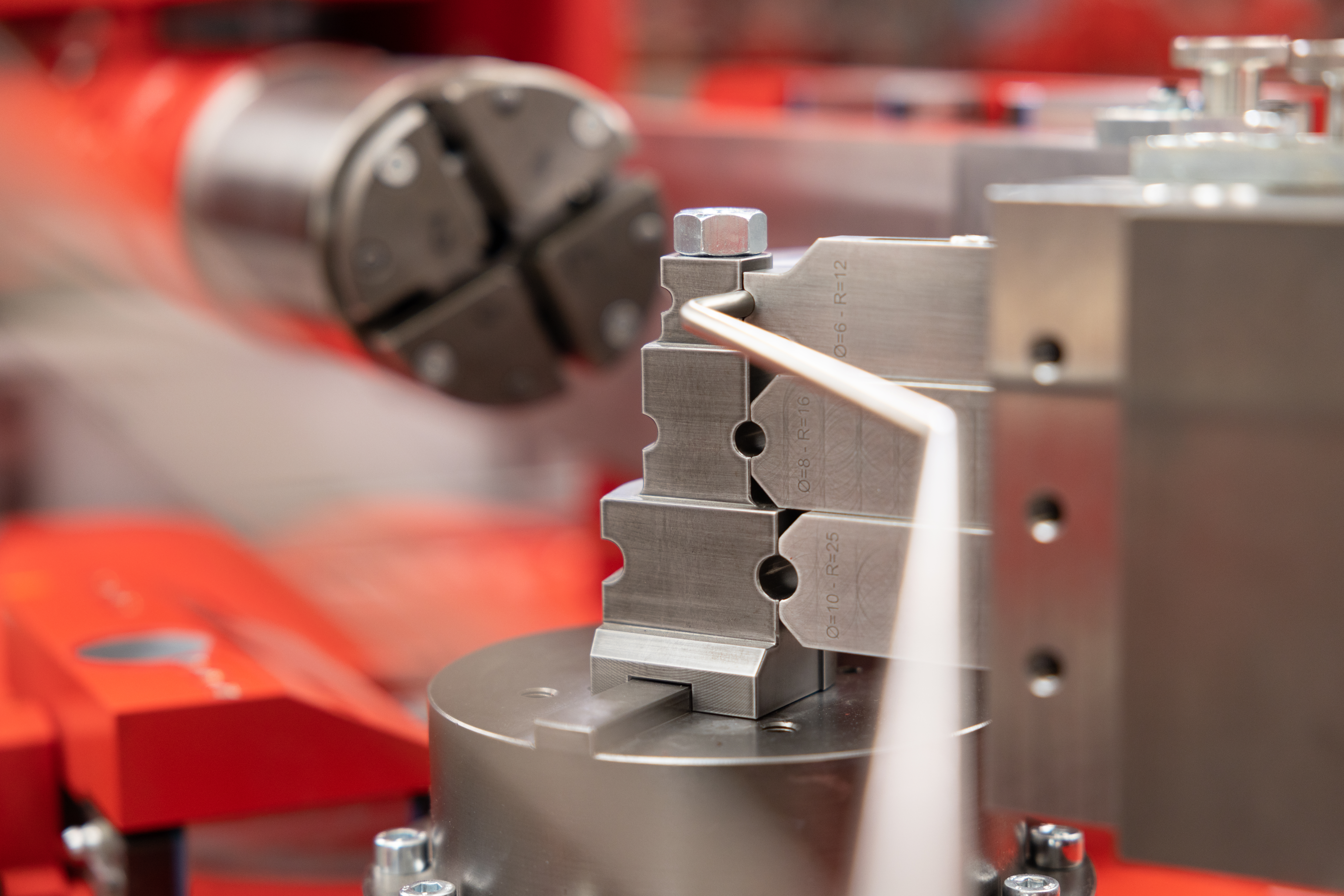

Equipped with several radii and tool levels for maximum geometric diversity.
-
FREE BENDING DIRECTION
Right and left bending in one operation.
-

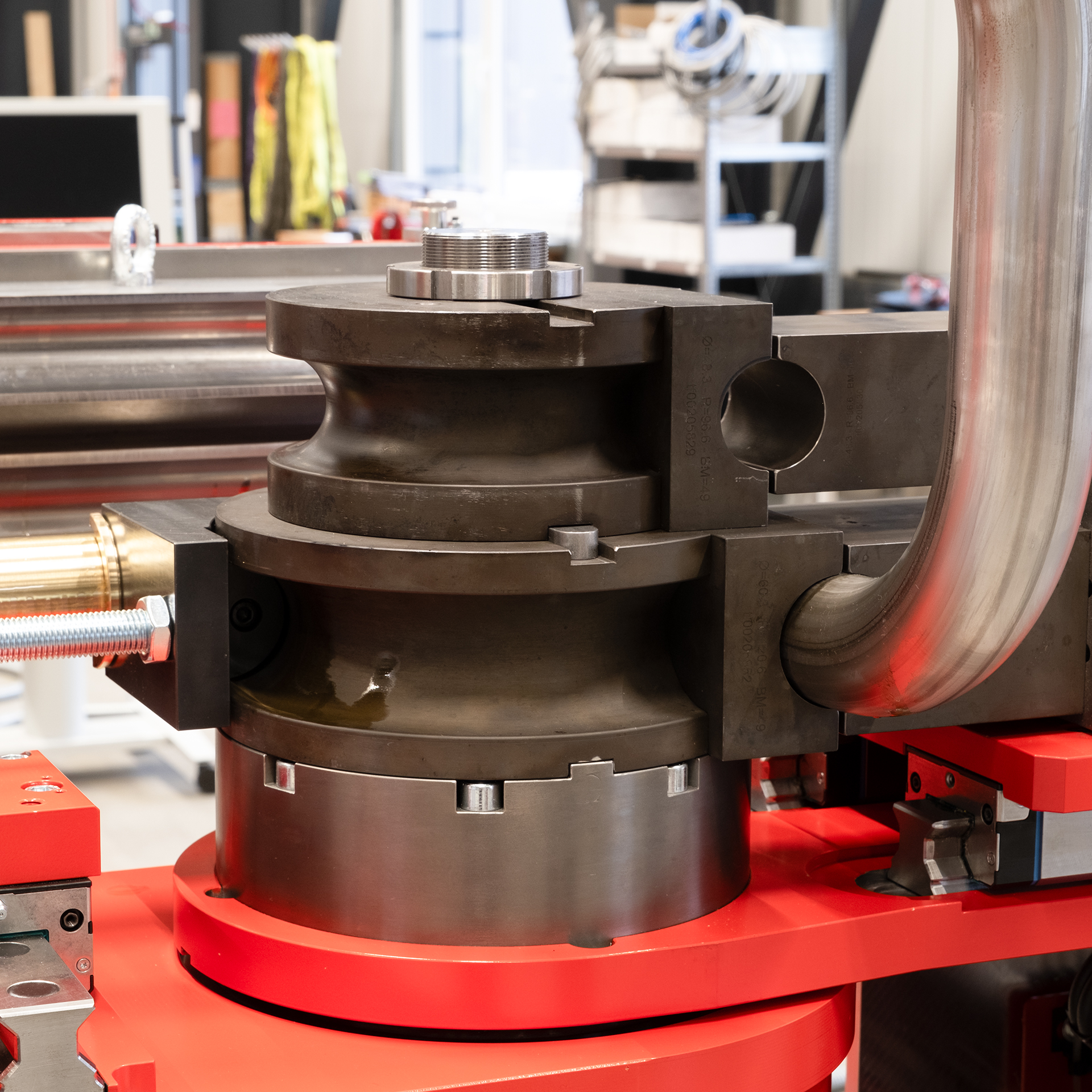

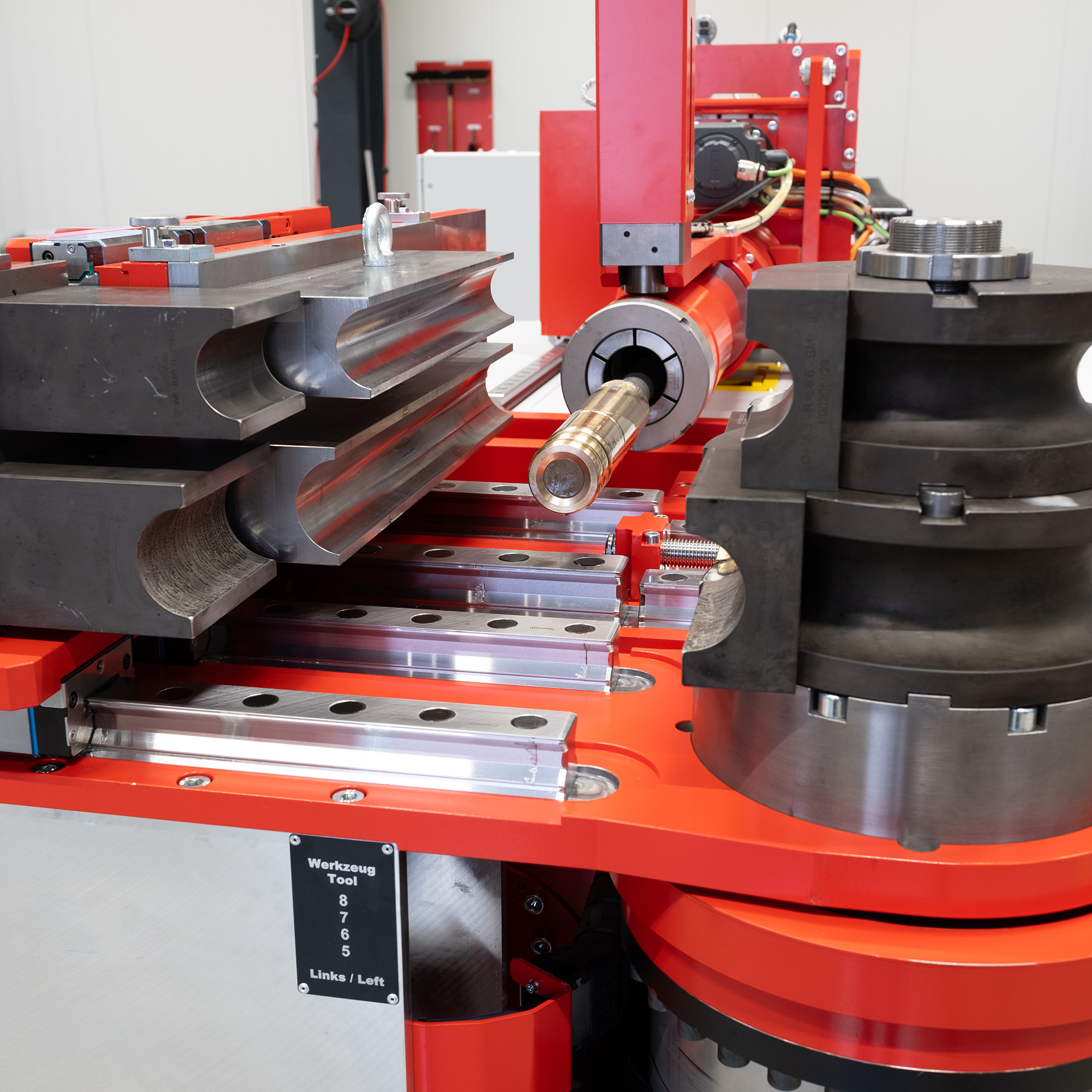

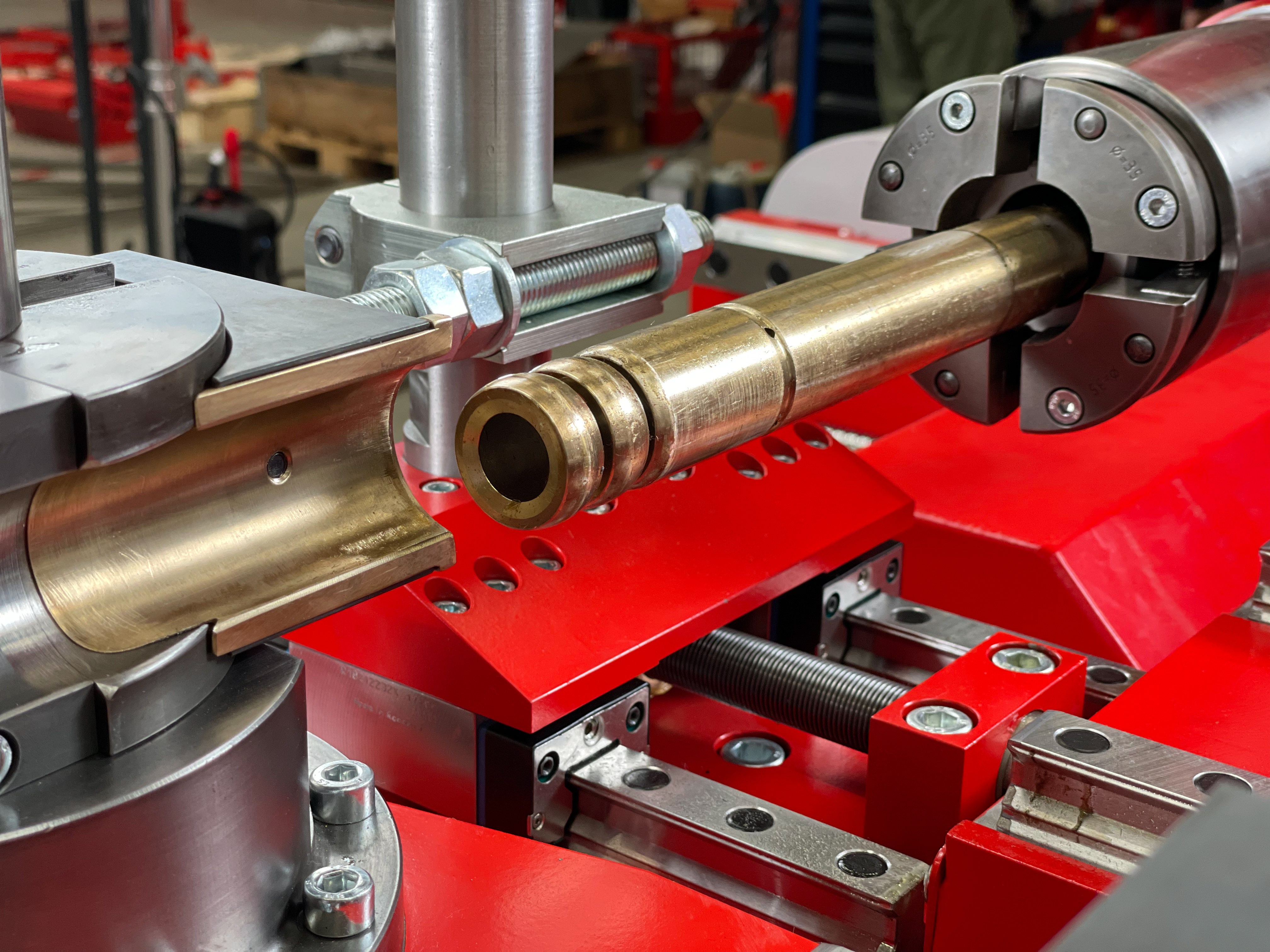

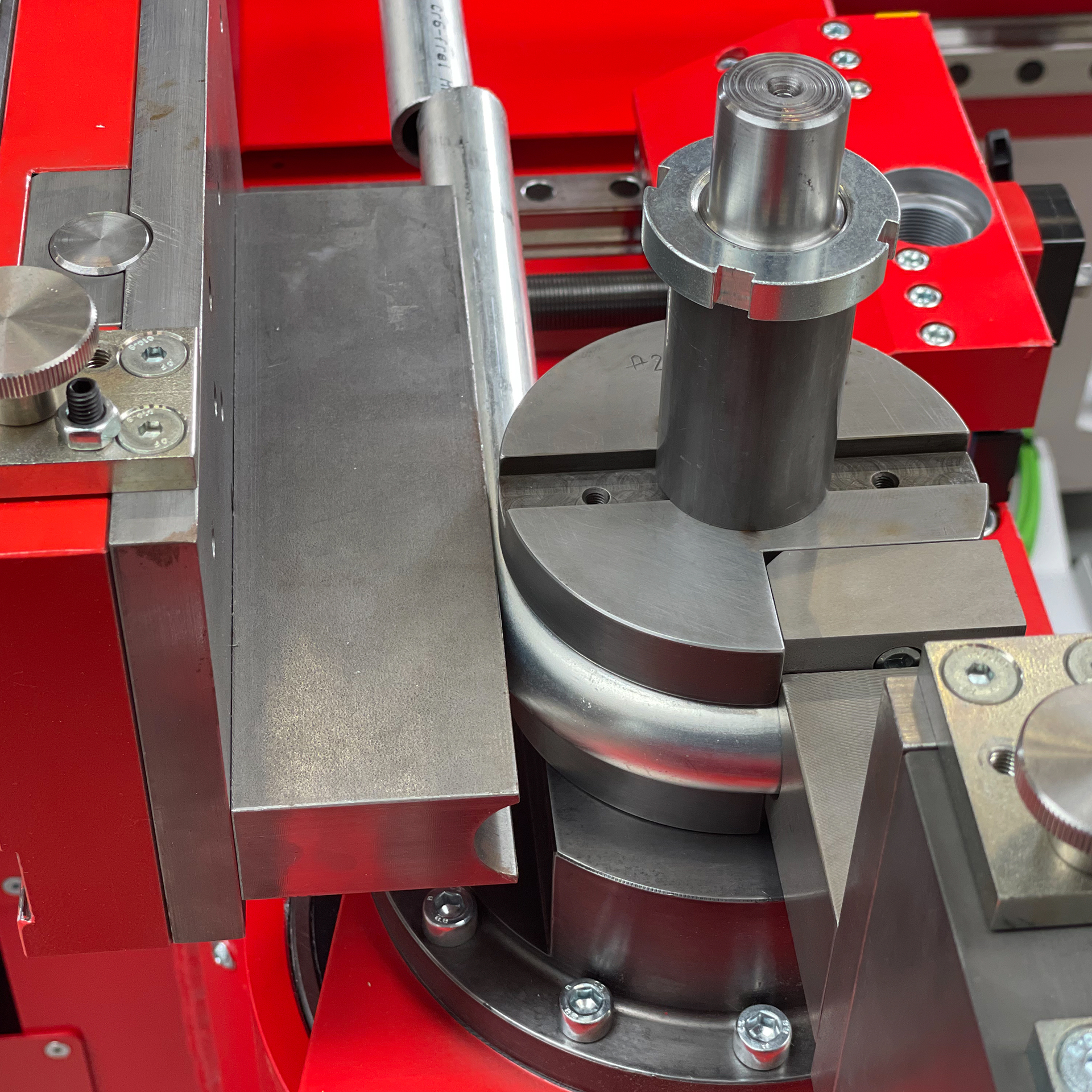

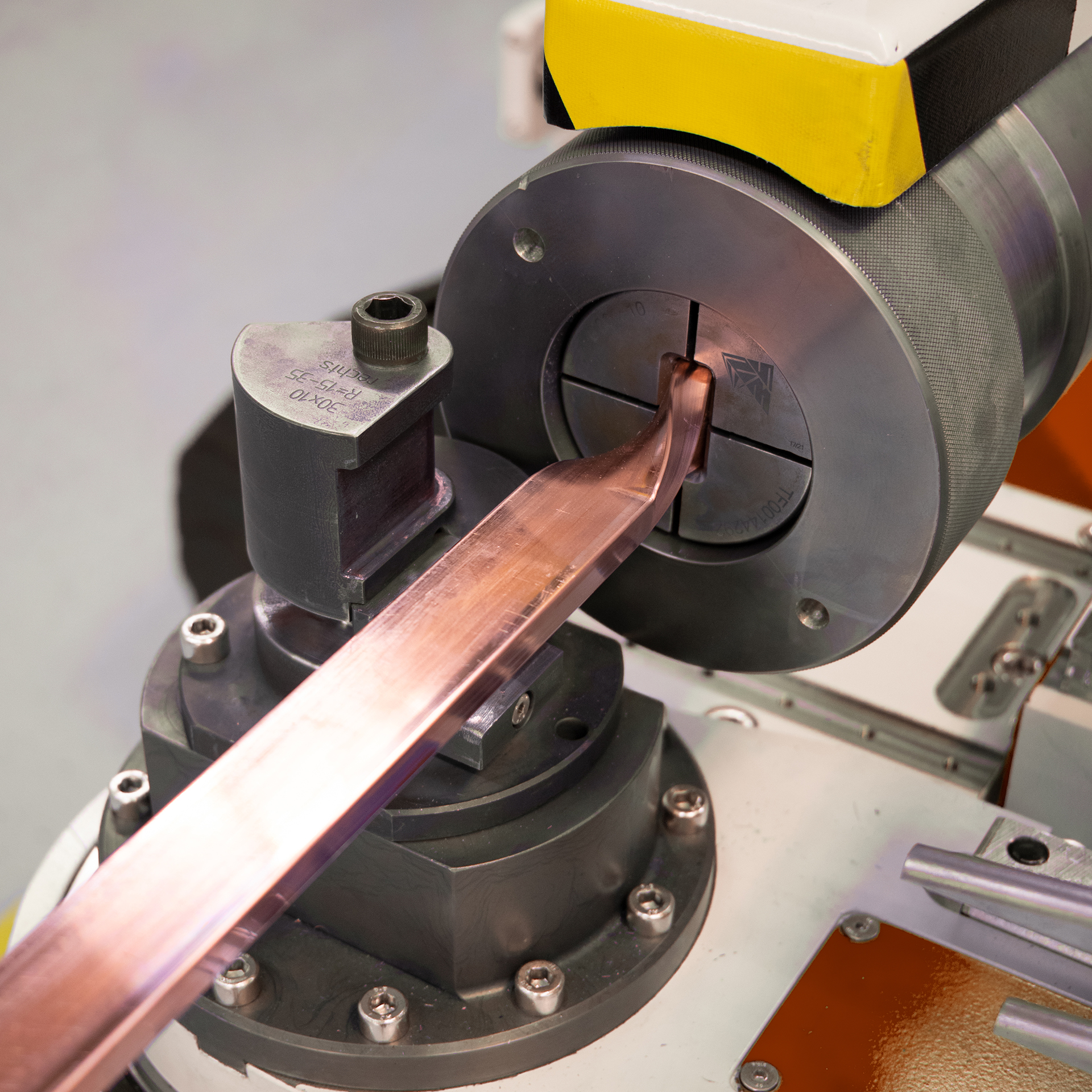

BENDING MANDRELS
Bending mandrels for a wide range of materials and requirements.
-

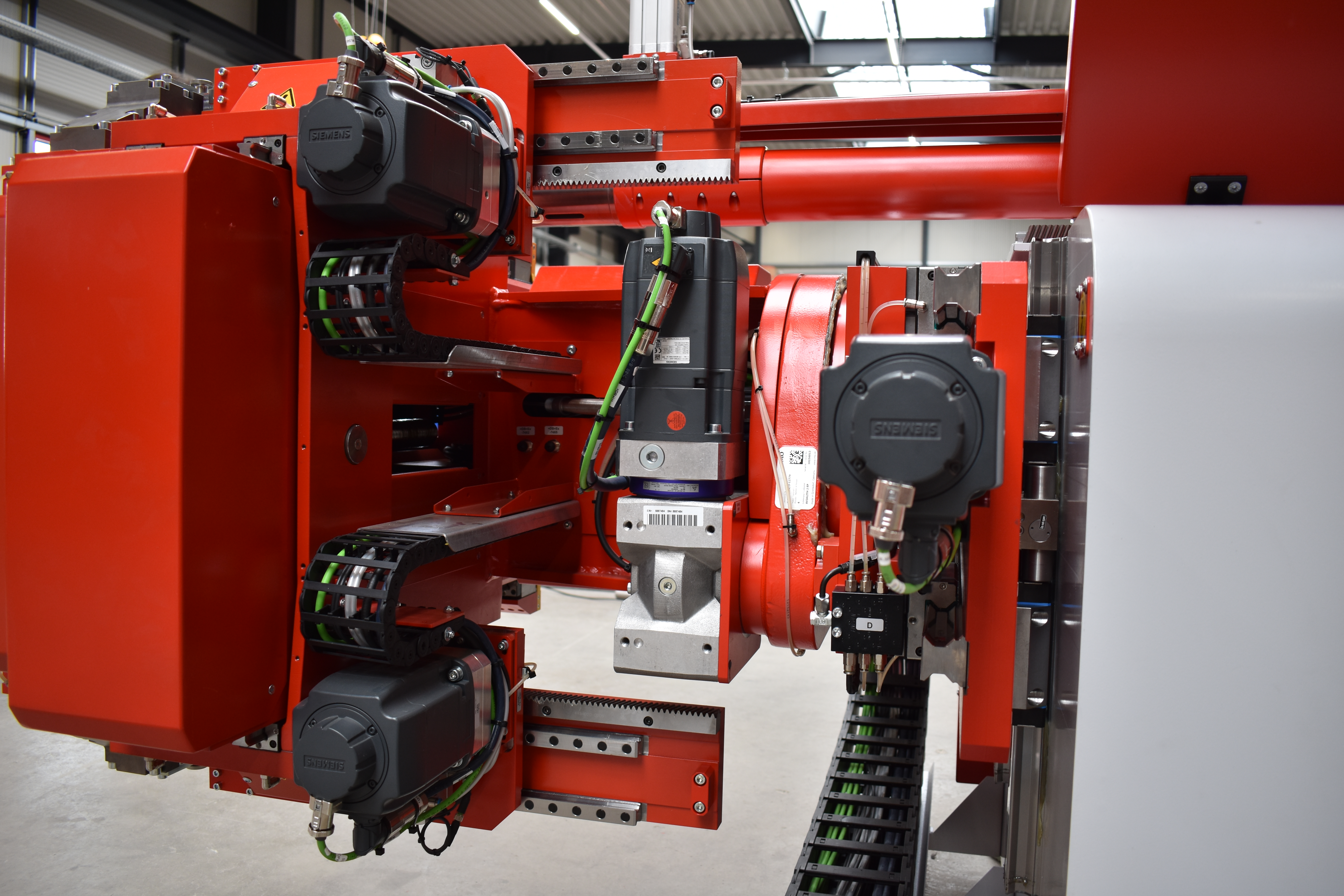

SERVO-ELECTRIC TECHNOLOGY
100 % electric drives for up to 70 % energy savings compared to hydraulic systems.
-

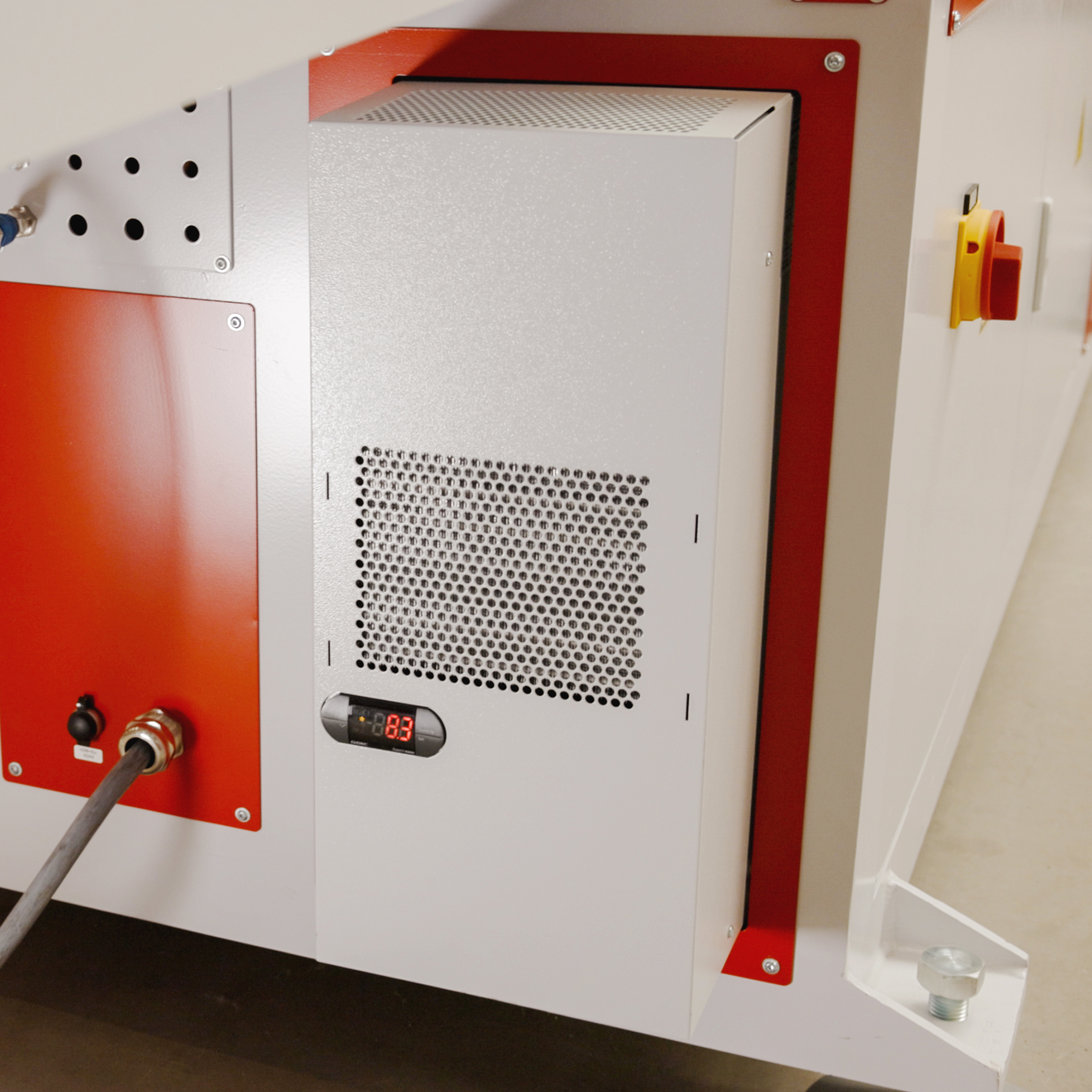

CONTROL

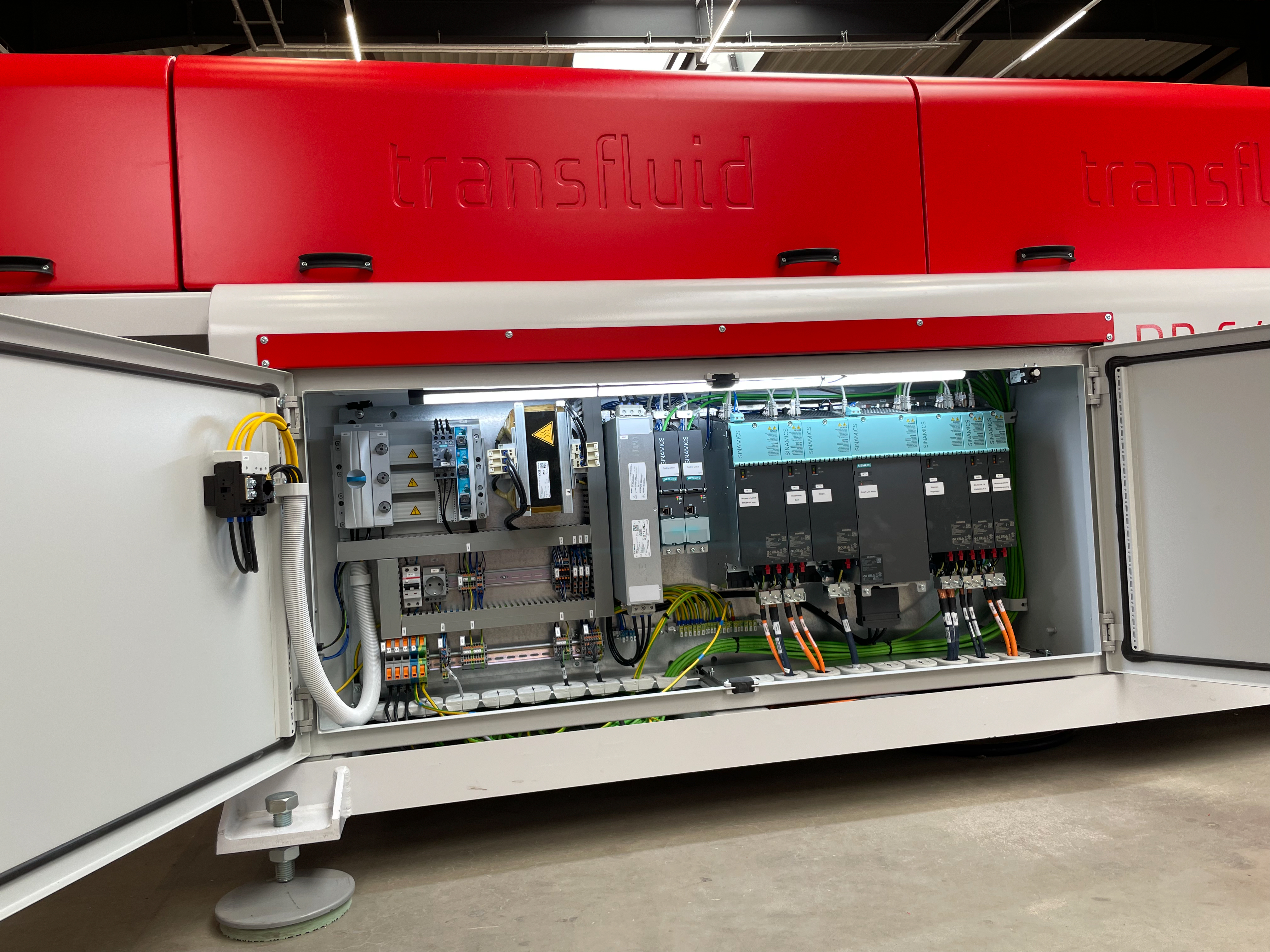

The control unit is equipped with high-quality electronic components from leading suppliers. This ensures a long service life and a reliable supply of spare parts over a long period of time.
-

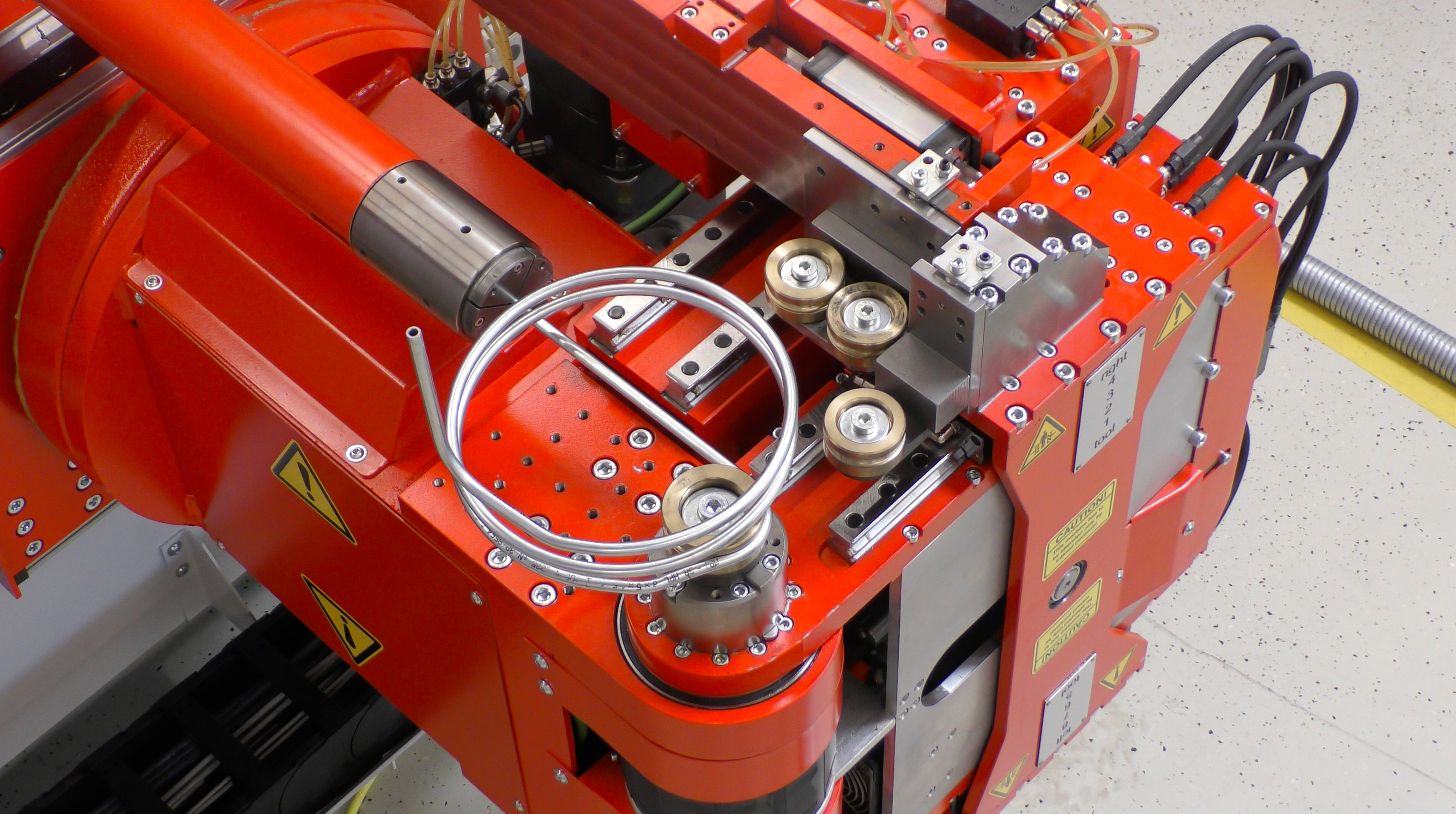

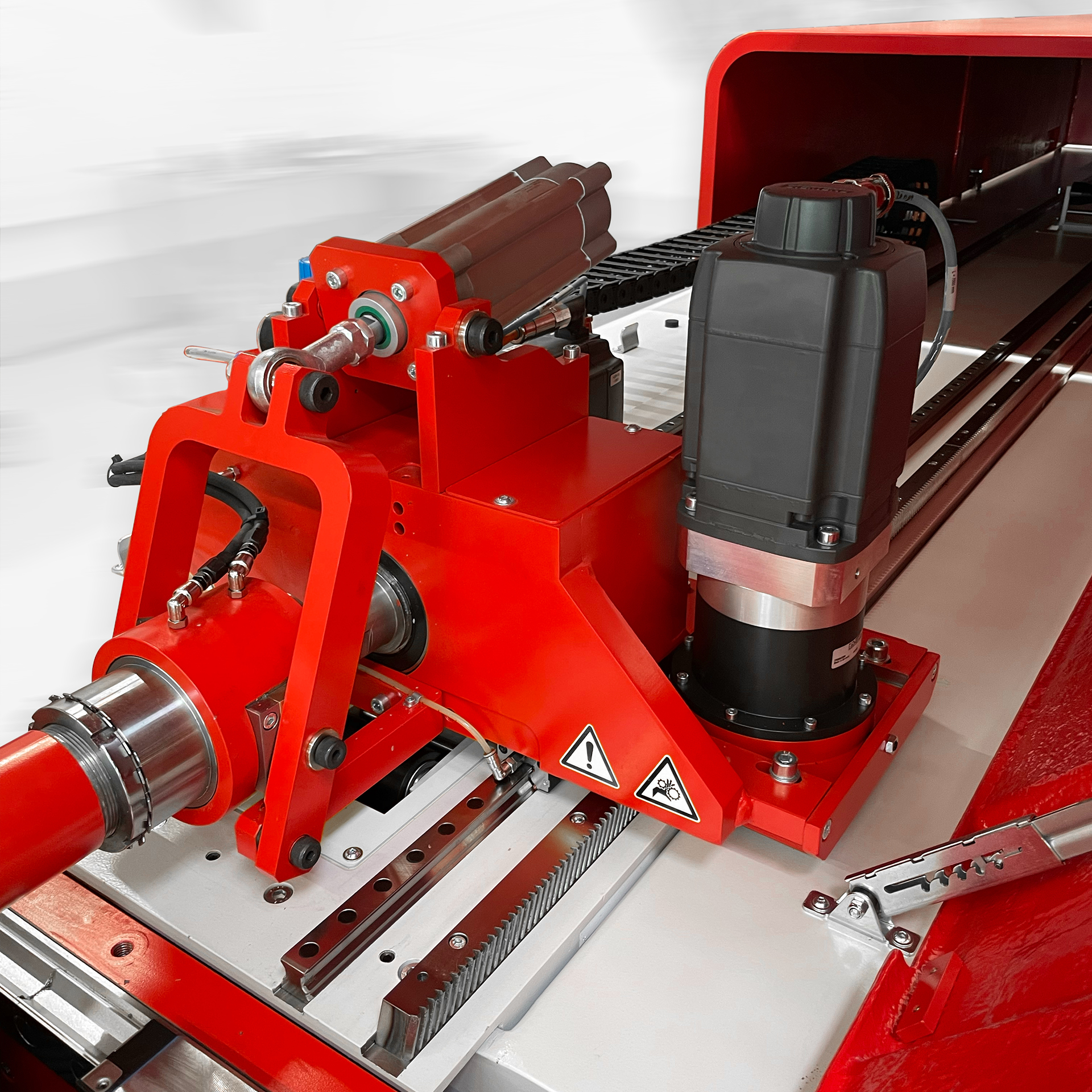

PUSH-ON DEVICE & PUSH BENDING
The machine can be equipped with an additional powerful motor with a post-compression / free-form function. Especially when bending thin-walled materials and very small bending radii, this function can improve the sheet quality and minimize wall thickness weakening.
Special tools are available for free-forming large radii.

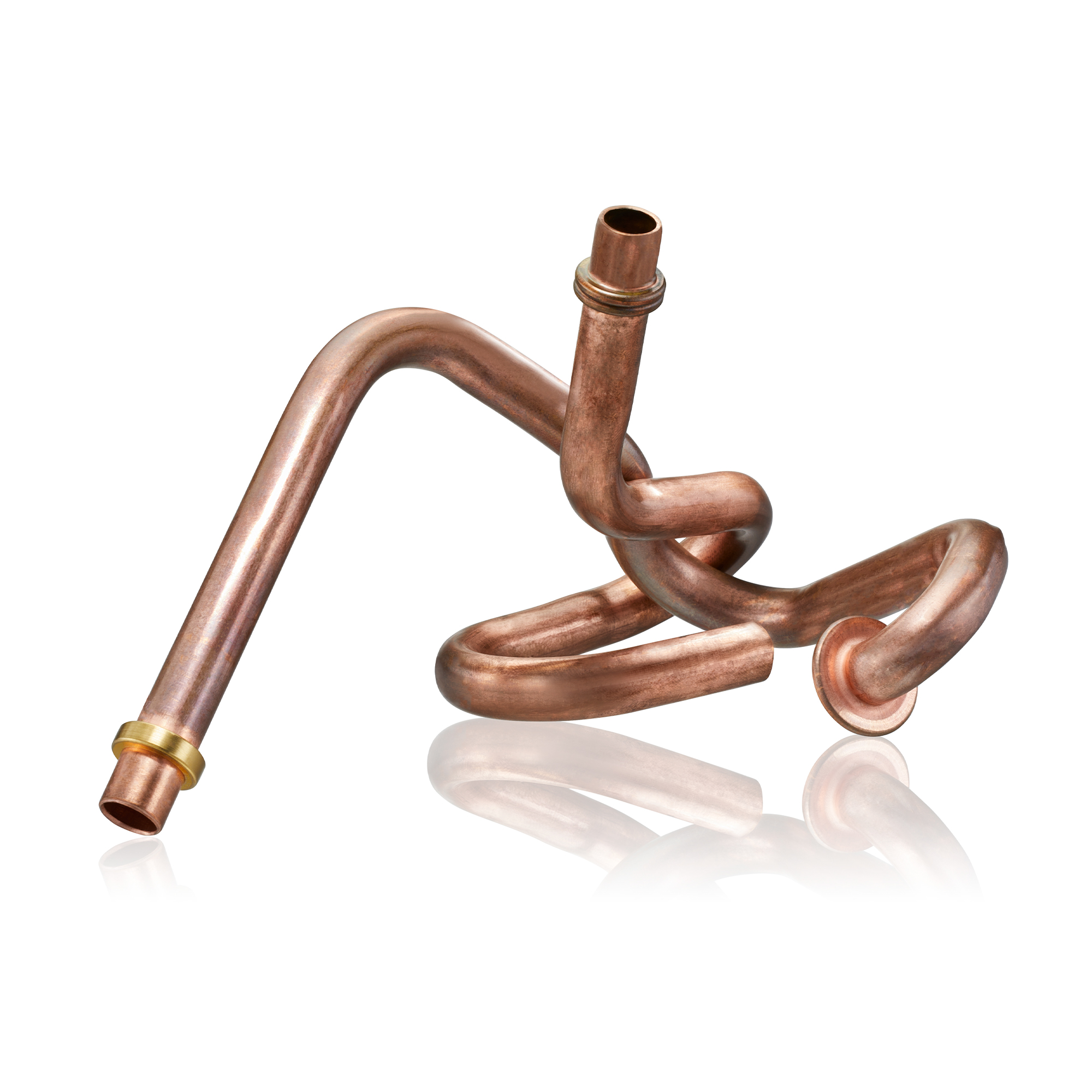

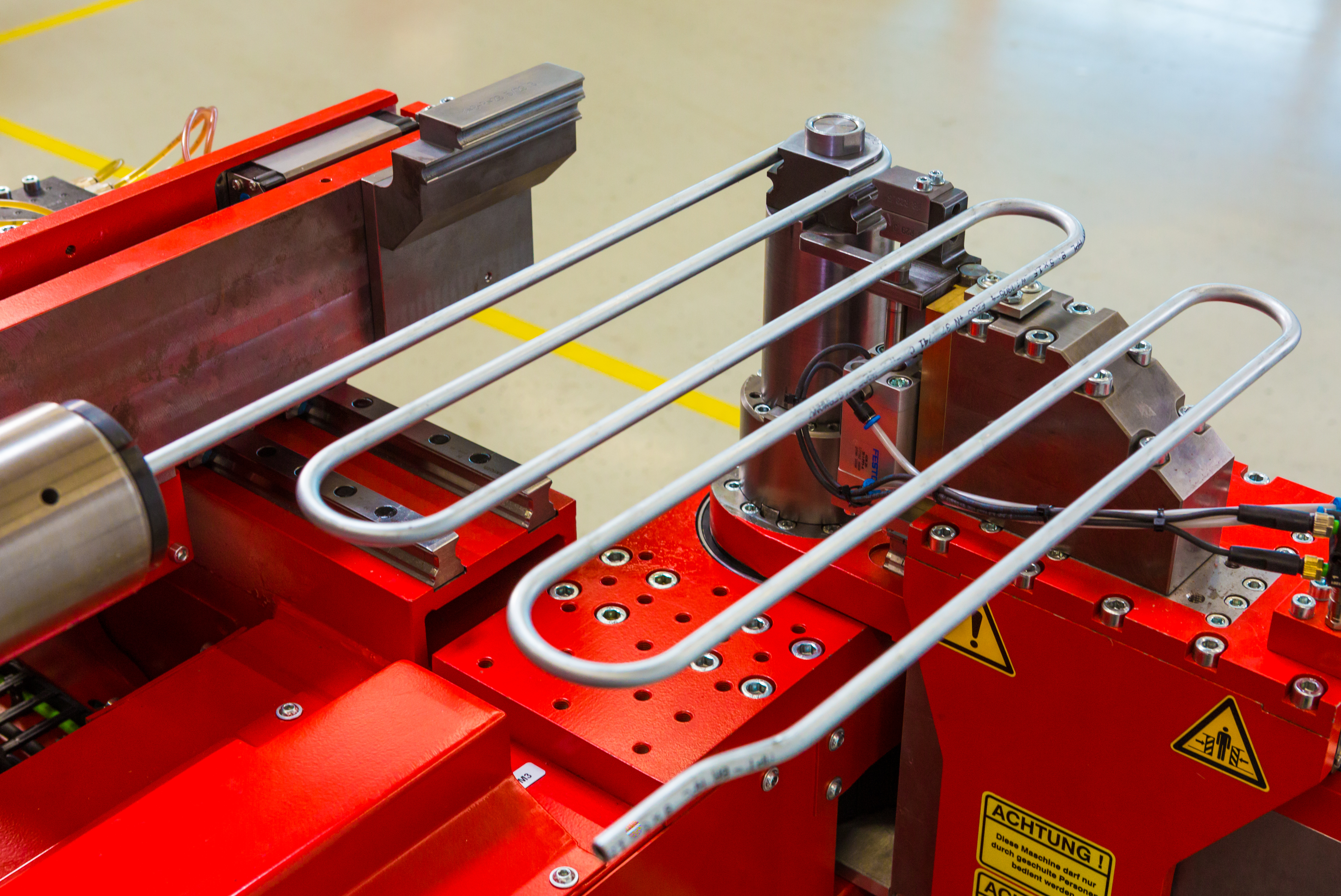

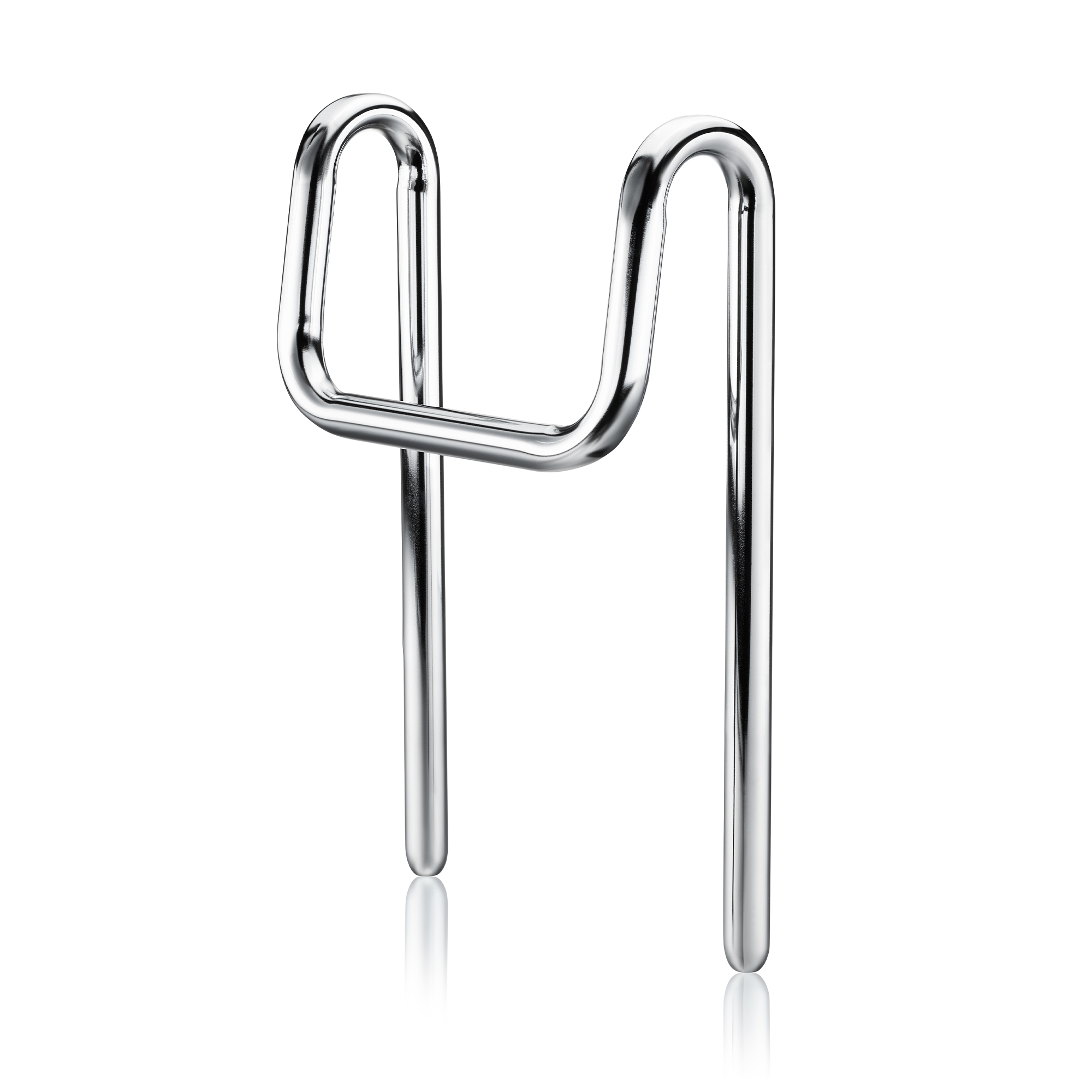

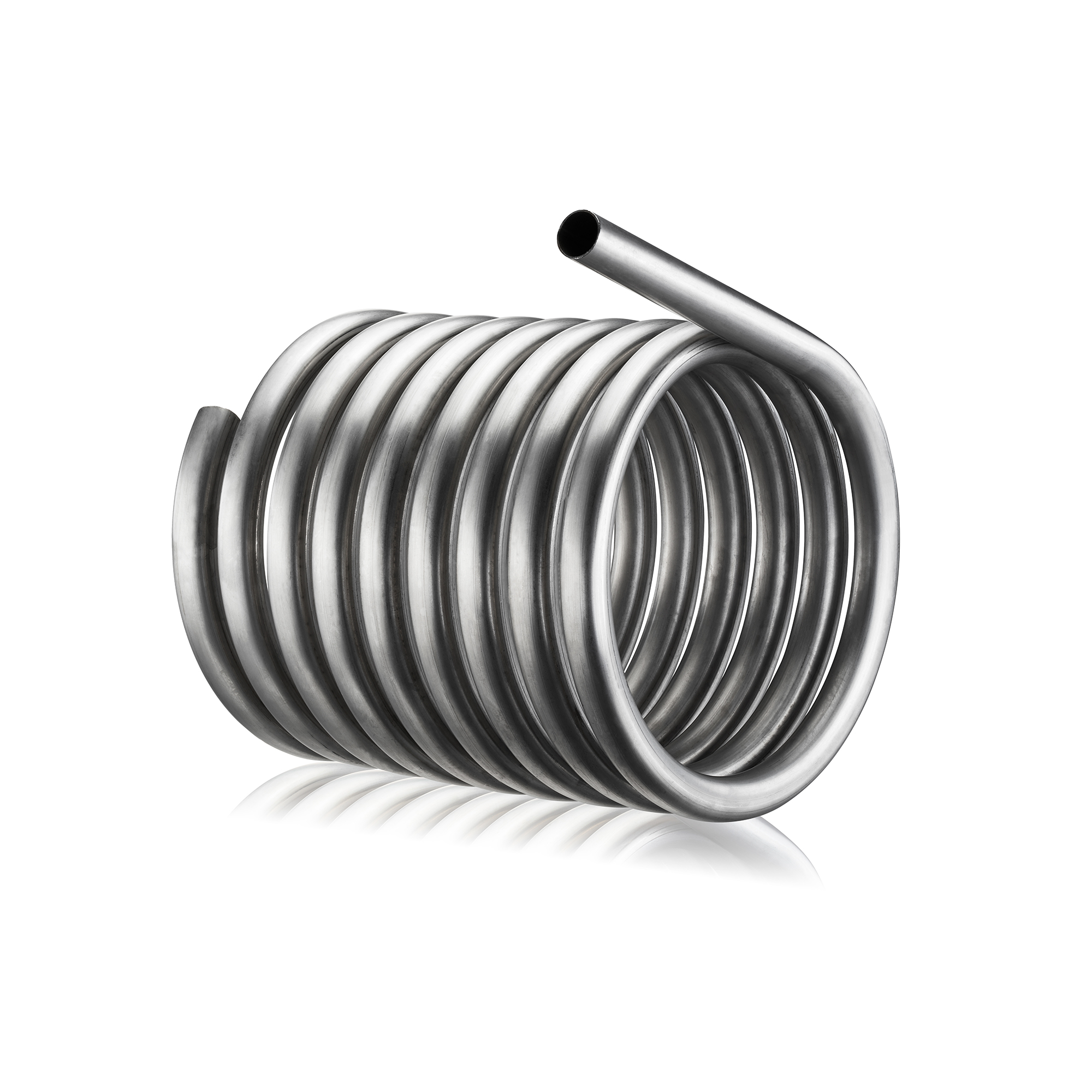

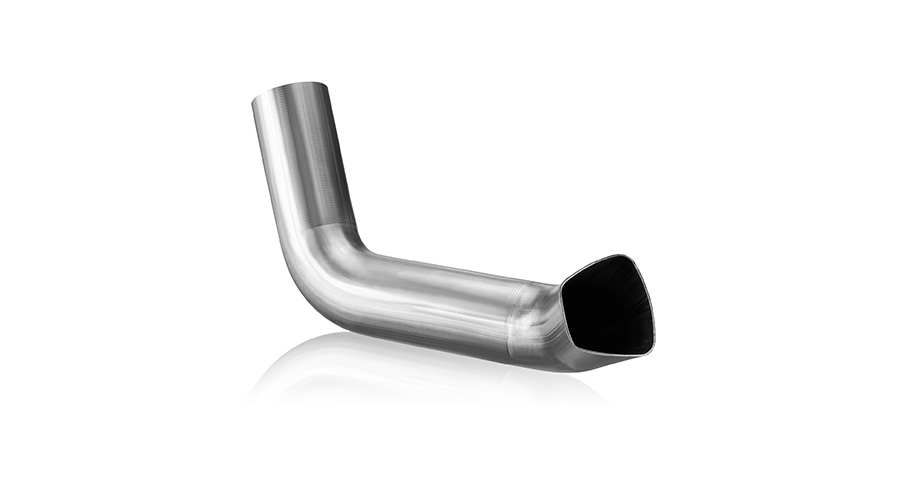

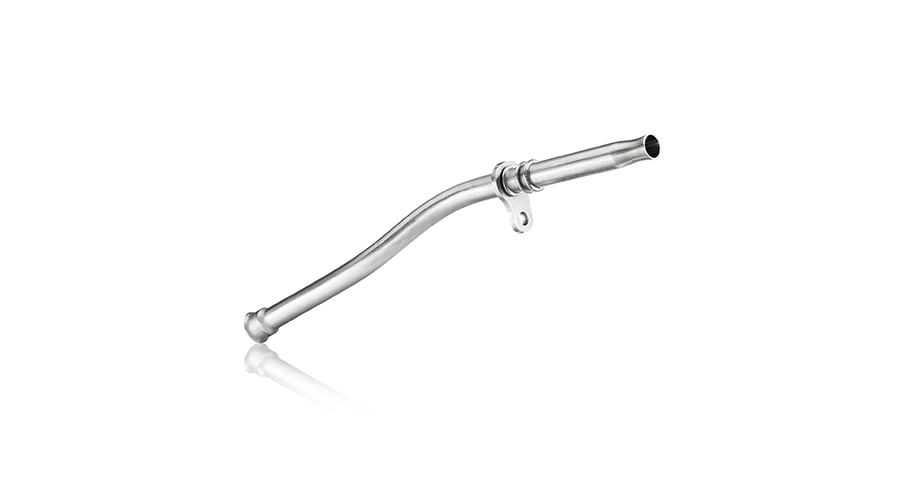

Production samples
COST-EFFECTIVE MATERIAL FEEDING
We offer a variety of loading systems for all machines, depending on the material, tube diameter and tube length. Even tubes that have already been formed with attachments can be loaded without any problems. Correct alignment is very important when feeding the tube into the production cell. External workpieces, such as nuts, flanges and support sleeves, can be fed into the system in a controlled manner and included in the subsequent processing steps. A wide range of loading volumes can be realized.
POWERFUL SOFTWARE
With the tube bending software t project and the upload functions, you can go directly from CAD to the bending machine. The virtual bending simulation determines exact bending times and cut lengths and checks tube geometries for feasibility in advance. Tube data and bending results are documented precisely and are then 100% reproducible. Simple programming from your desk, quick calculation of new projects, collision check before the component is fed into the machine and direct upload of the tube bending sequence to the tube bending machine.

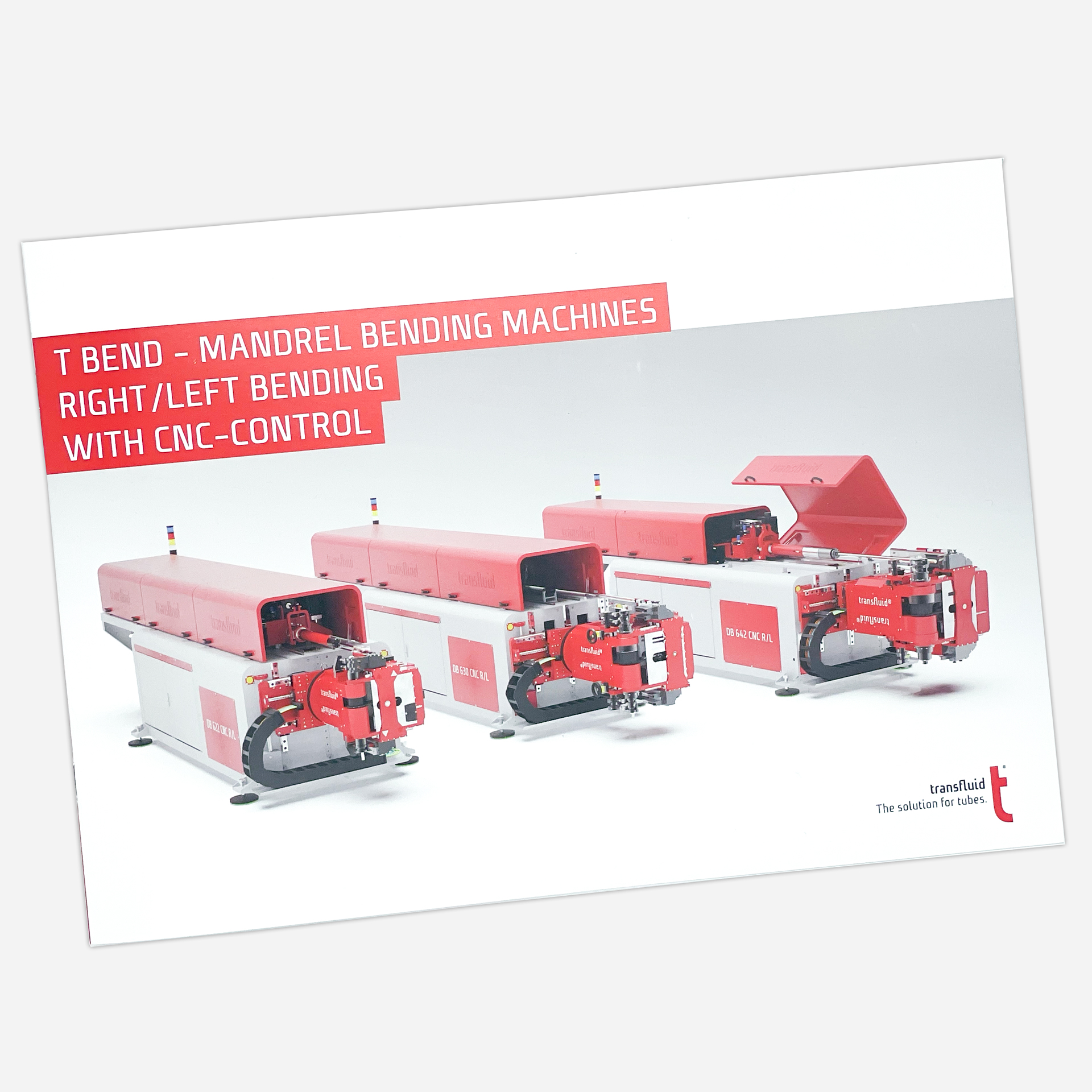

CATALOG DOWNLOAD
