transfluid - t bend PROLINE
Servo-electric CNC mandrel bending machines
Powerful - synchronously programmable electric axes for optimum cycle times- Flexible - various radii and the most complex tube geometries thanks to multiple bending levels with automatic level change
- Digital - project management and CAD connection for end-to-end planning
- Future-proof - predictive control for predictive service and maximum system availability
Explore our machine virtually
Move the slider and click on the info points to obtain further information.
The right machine for your task
Product video
Experience in 3D

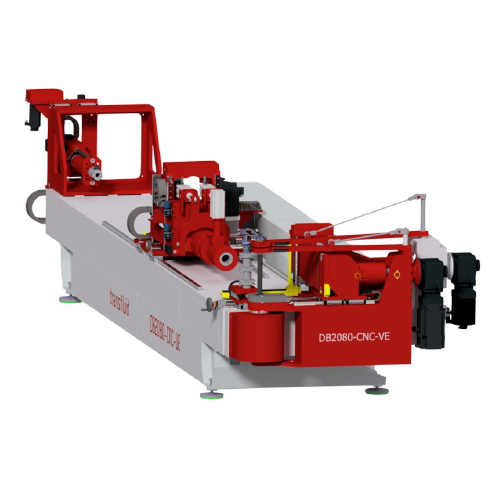

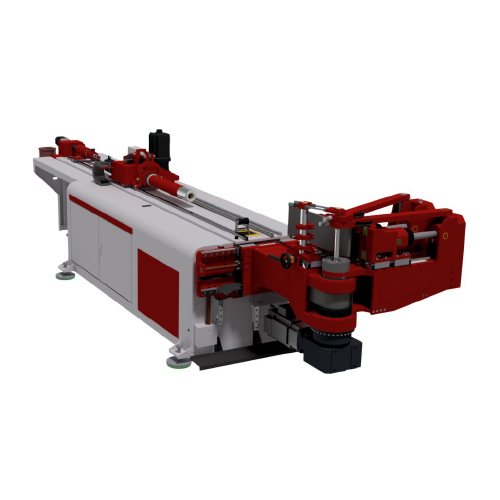

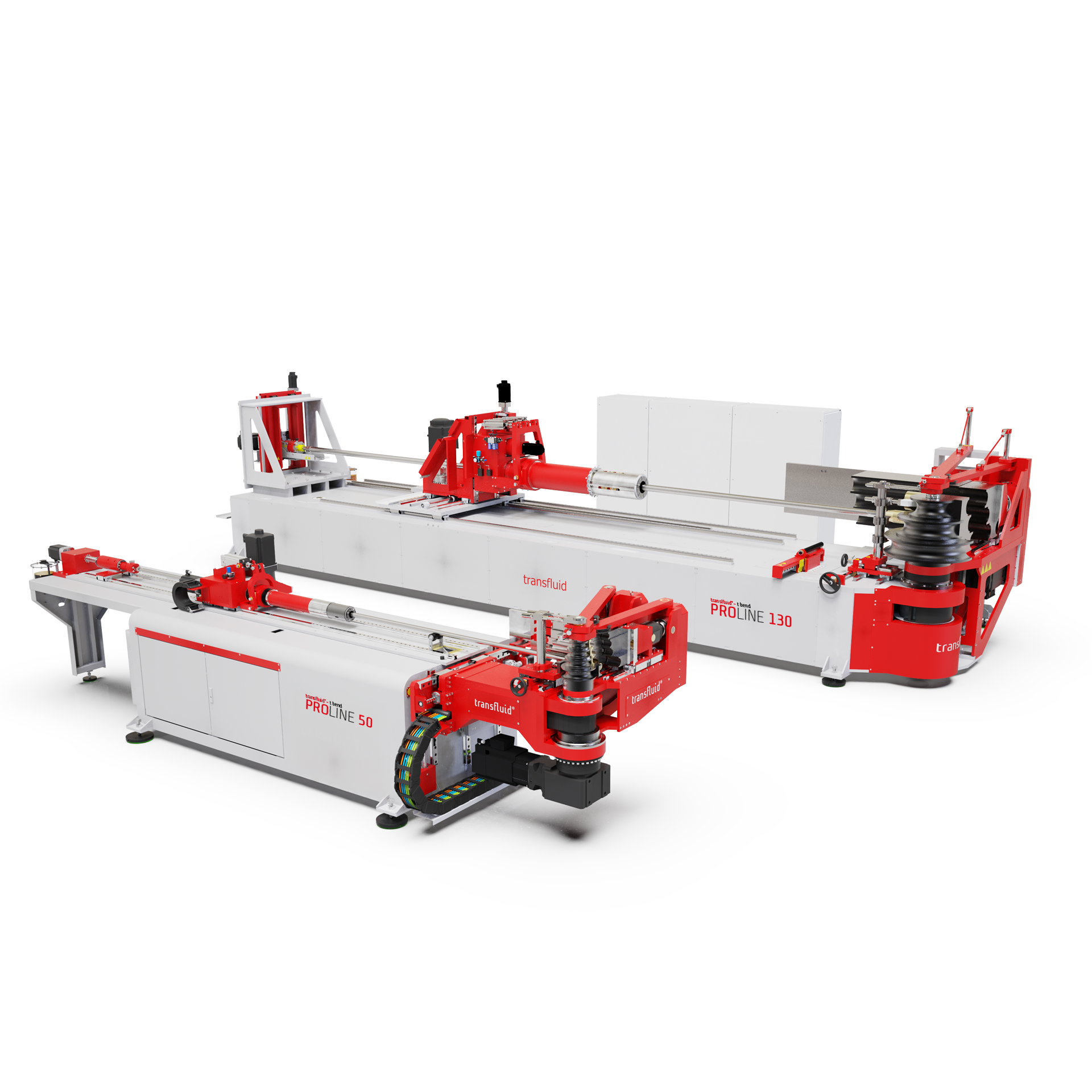

Servo-electric mandrel bending machines with CNC control

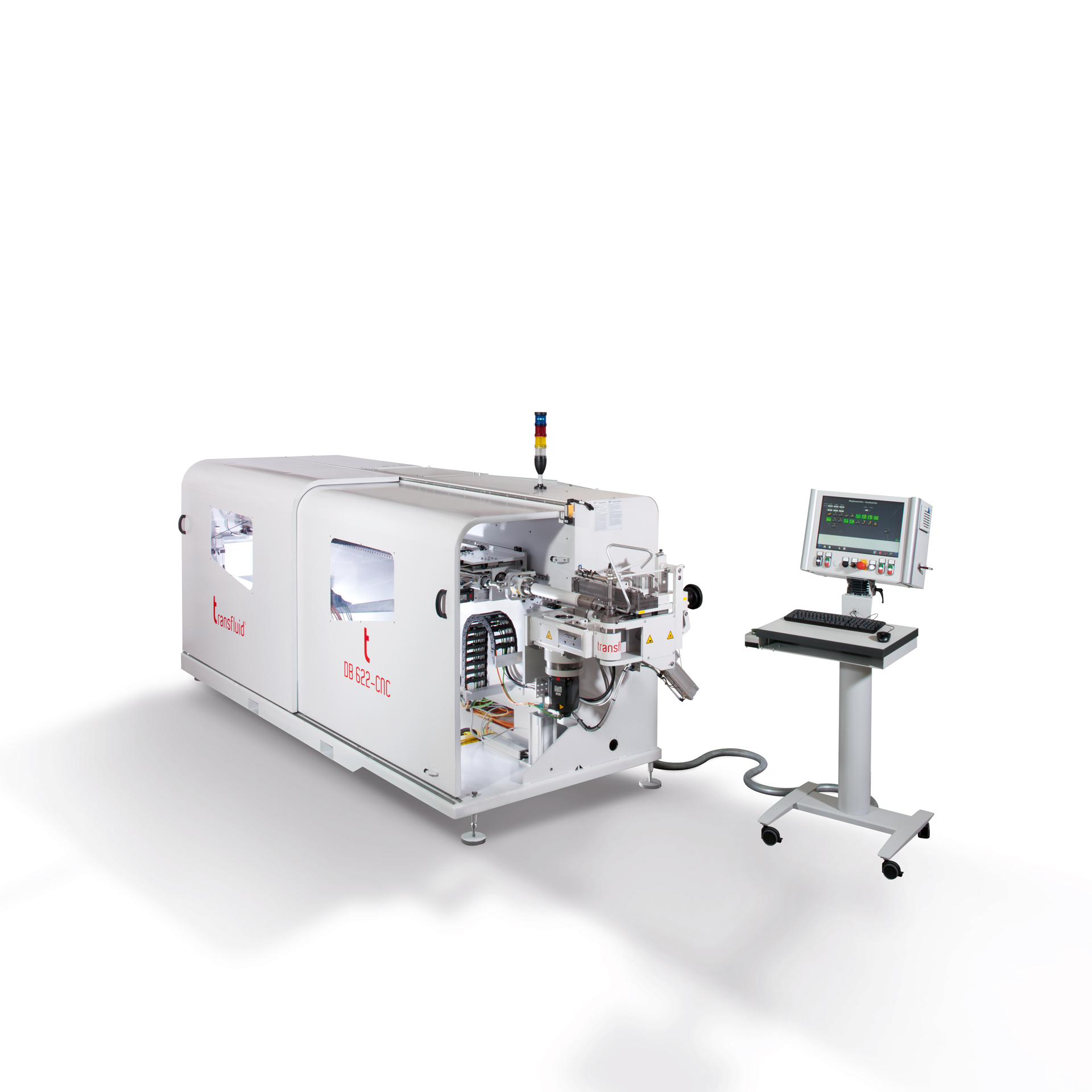

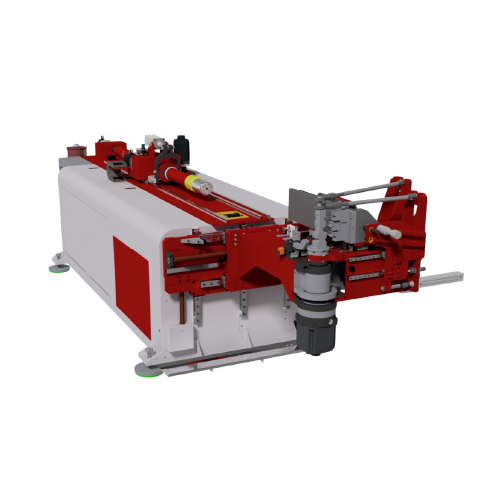

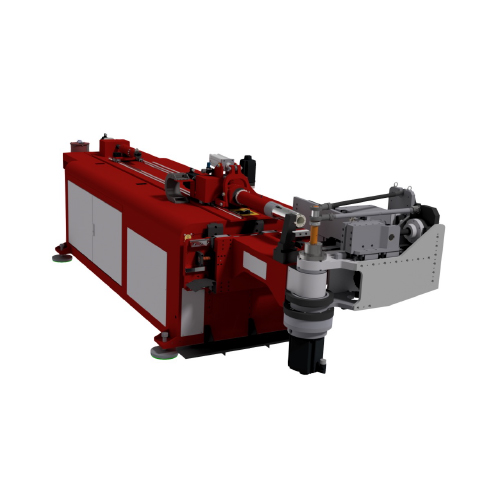

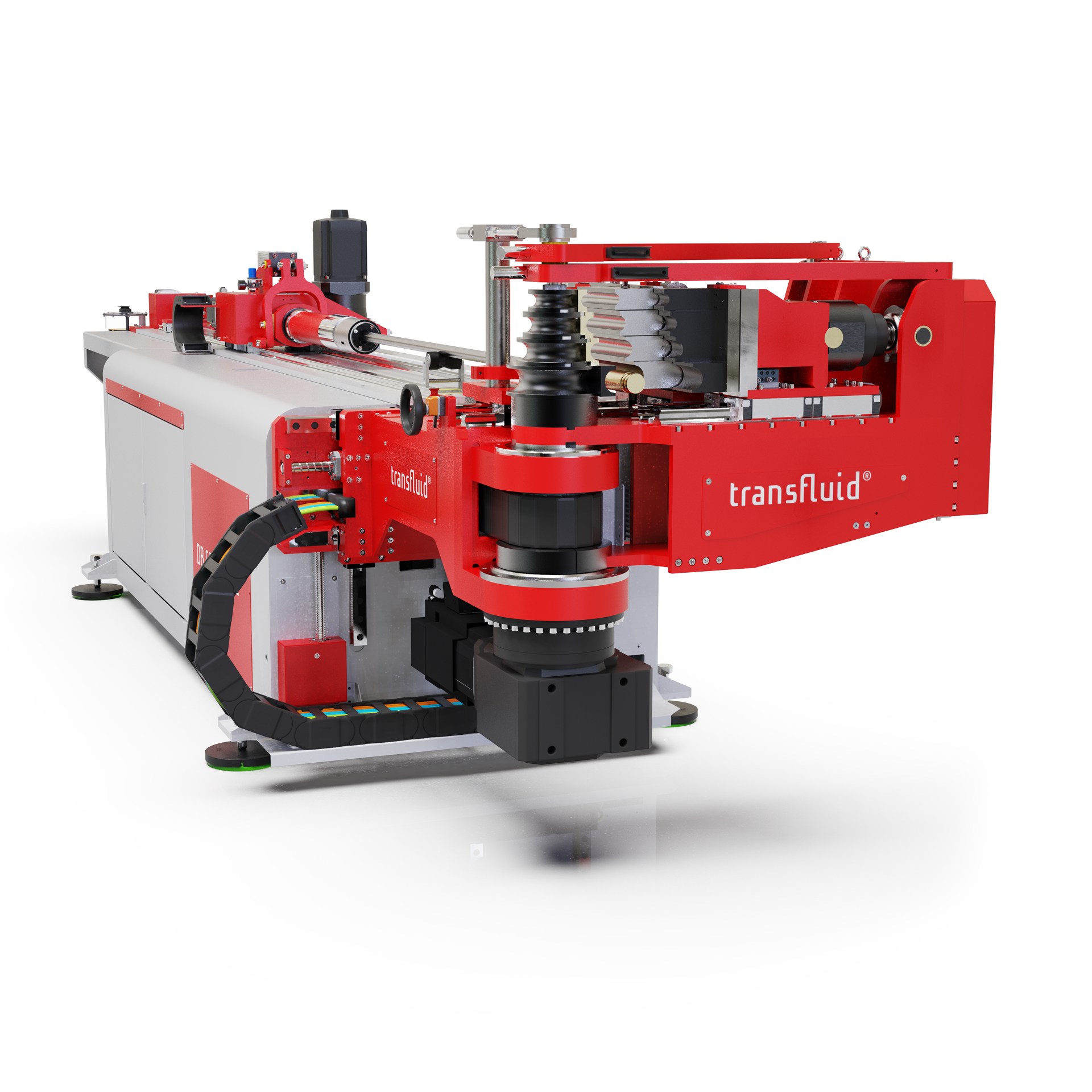

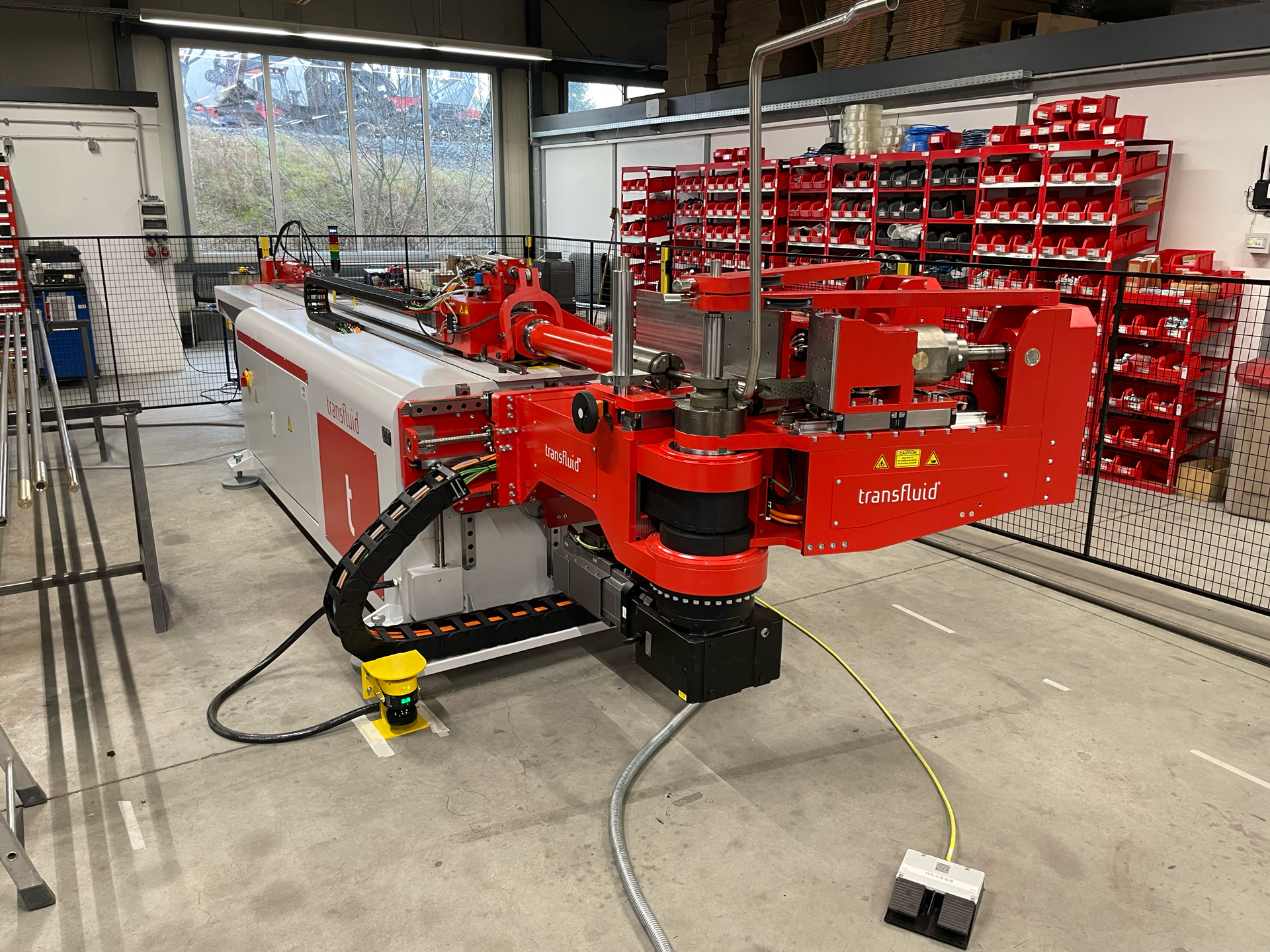

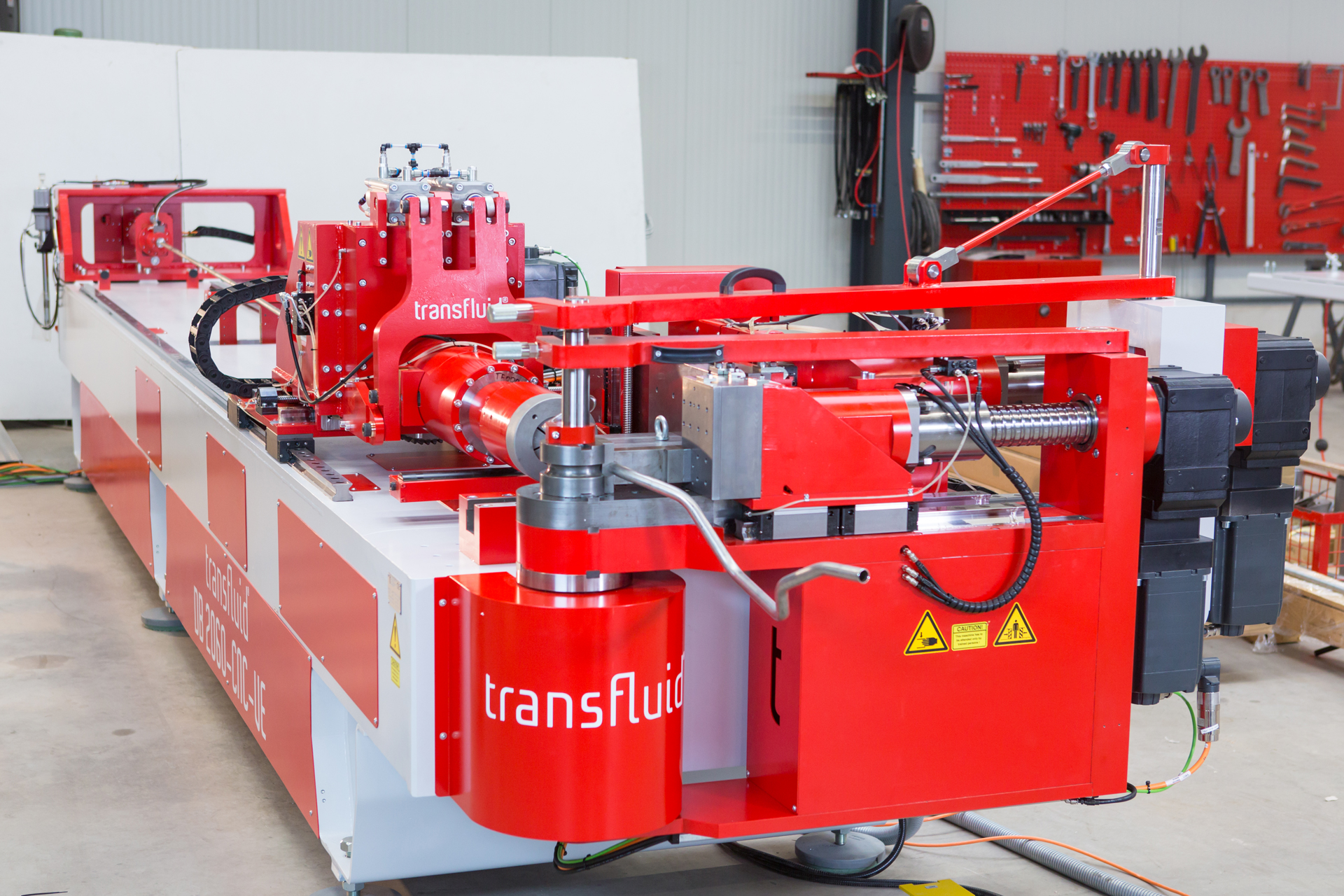

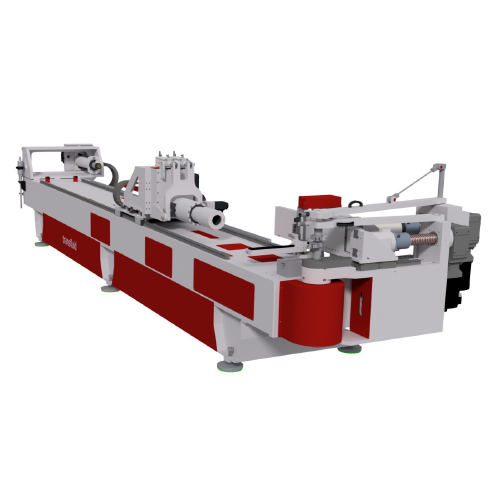

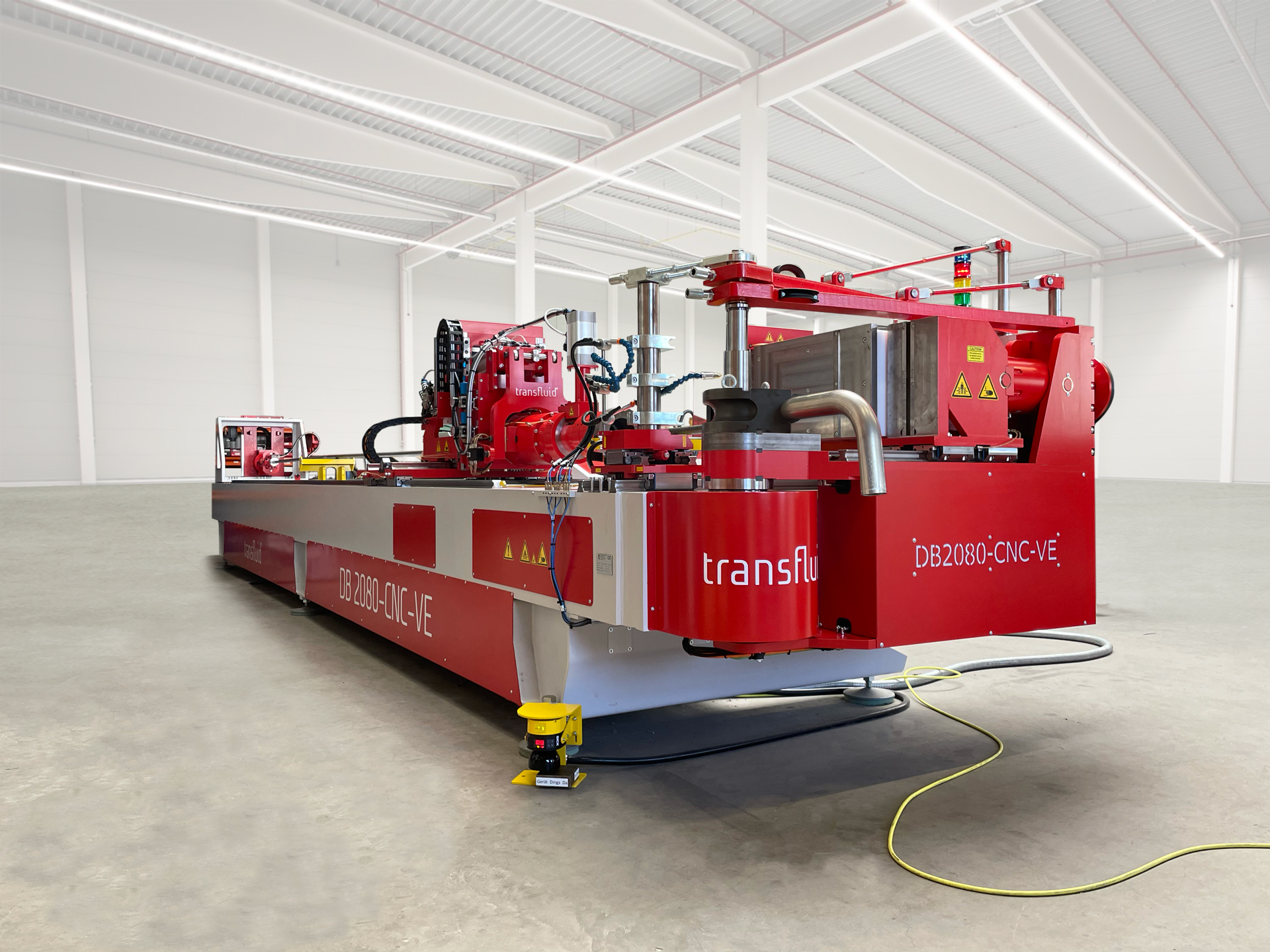

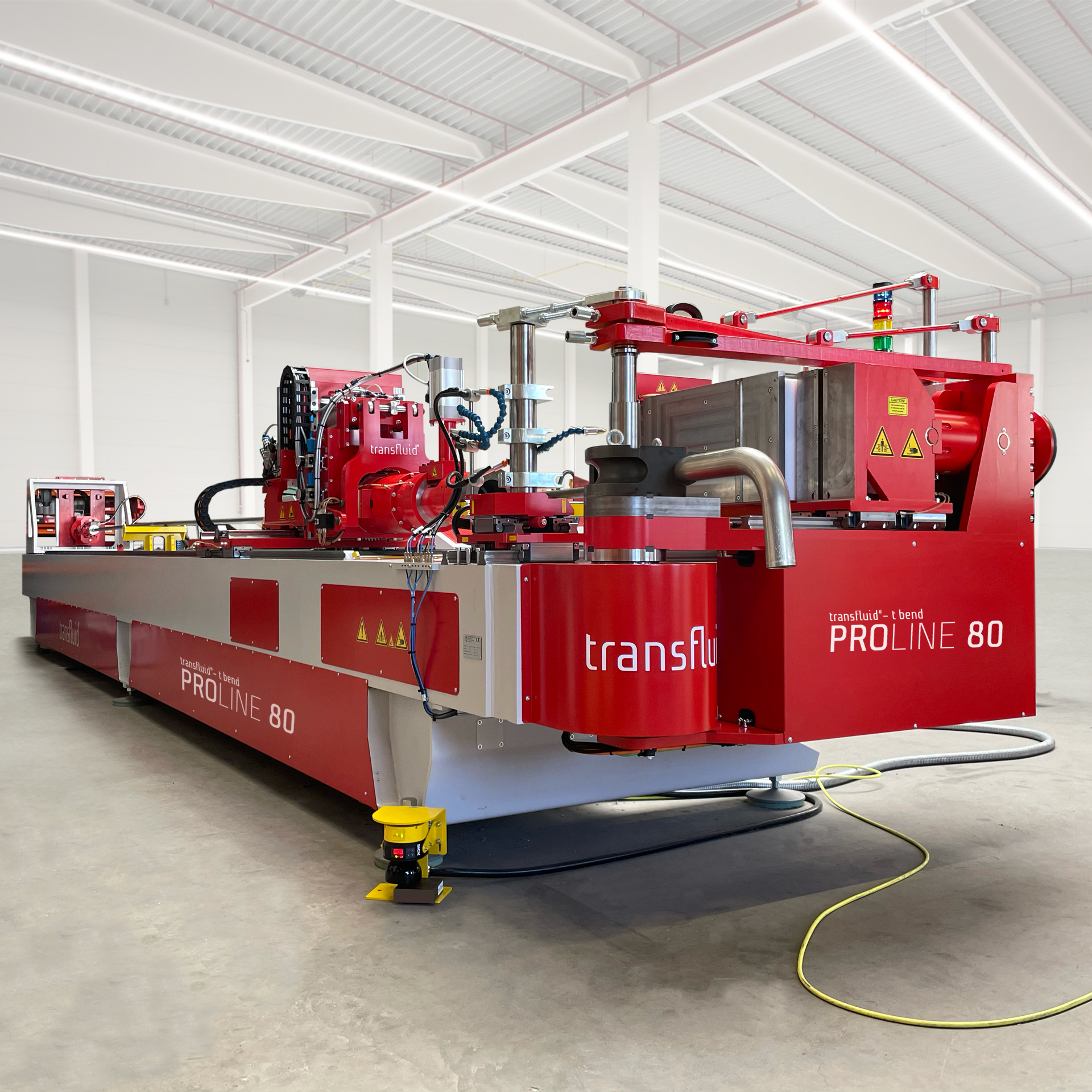

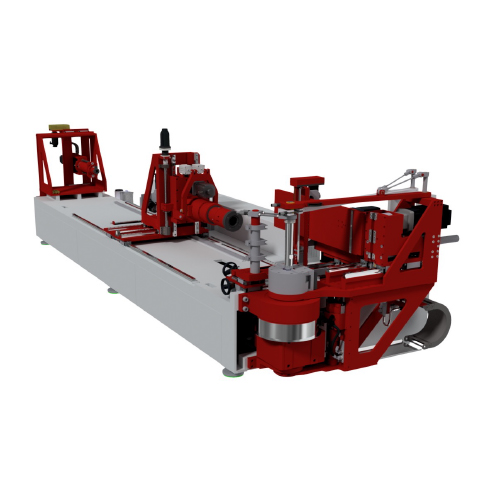

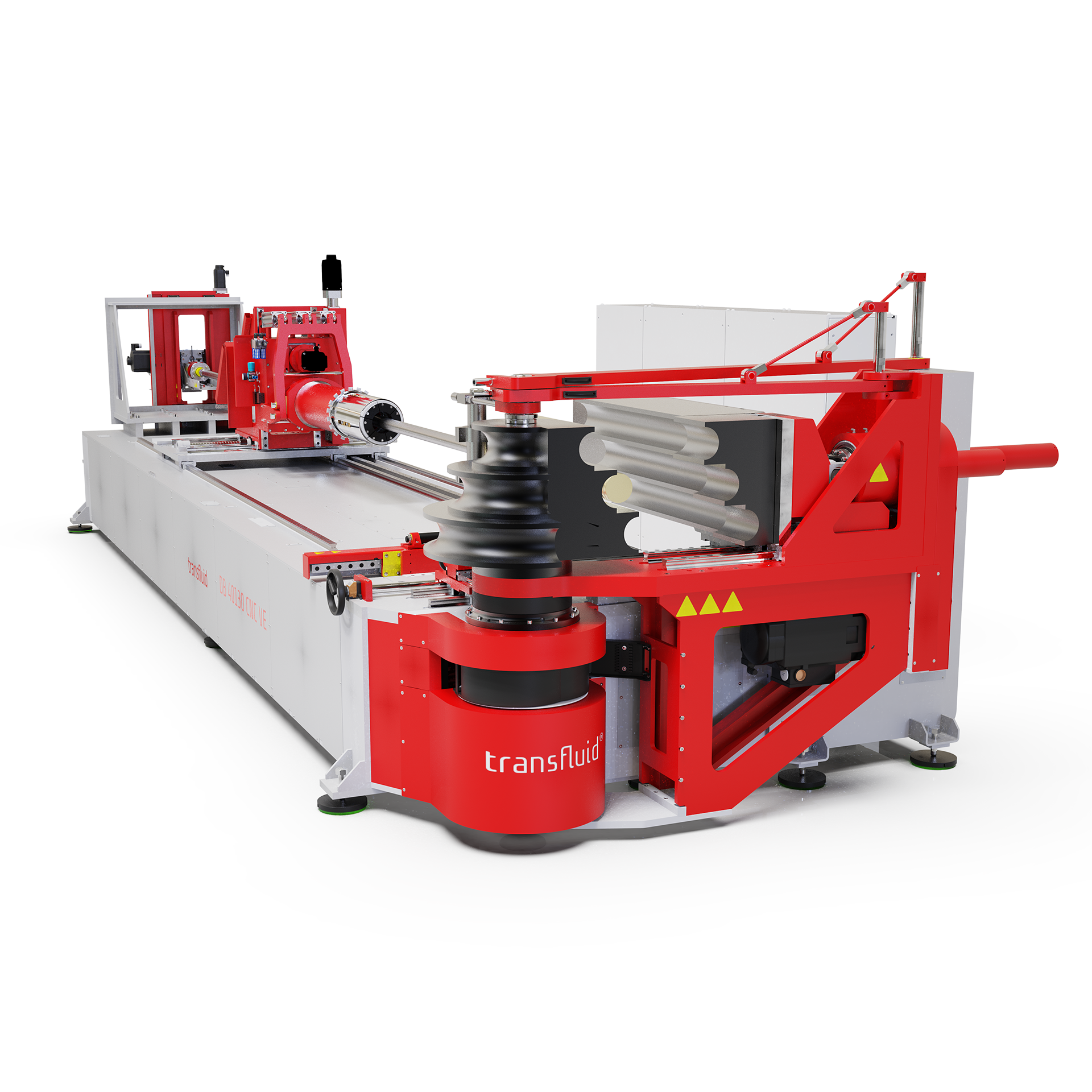

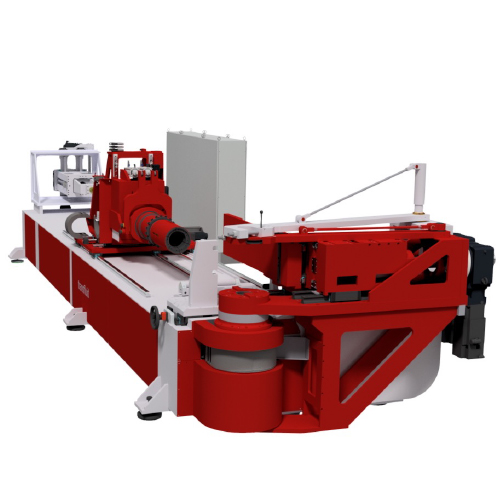

| Range | 6-22 mm |
| Max. Max. capacity | 22 x 2 mm (mild steel) 22 x 1.5 mm (stainless steel) 16 x 1.5 mm (square structural steel) |
| Max. Radii | 66 mm |
| Usable length | 2000 mm (standard) 3048 mm 4572 mm 6096 mm (special) |
| Speed of the bending axis | 300 °/sec. |
| Capacity | 6-30 mm |
| Max. Max. capacity | 30 x 2 mm (mild steel) 30 x 1.5 mm (stainless steel) 20 x 2.5 mm (square structural steel) |
| Max. Radius | 90 mm |
| Usable length | 2000 mm (standard) 3048 mm 4572 mm 6096 mm (special) |
| Speed of the bending axis | 275 °/sec. |
| Capacity | 6-42 mm |
| Max. Max. capacity | 42 x 3 mm (mild steel) 42 x 1.5 mm (stainless steel) 25 x 2.5 mm (square structural steel) |
| Max. Radius | 168 mm |
| Usable length | 2000 mm (standard) 3048 mm 4572 mm 6096 mm (special) |
| Speed of the bending axis | 180 °/sec. |
| Range | 6-50.8 mm |
| Max. Max. capacity | 50.8 x 3 mm (mild steel) 50.8 x 2 mm (stainless steel) 35 x 35 x 4 mm (square structural steel) |
| Max. Radii | 150 mm |
| Usable length | 2000 mm (standard) 3048 mm 4572 mm 6096 mm (special) |
| Speed of the bending axis | 180 °/sec. |
| Range | 6-60 mm |
| Max. Max. capacity | 63 x 2.0 mm (mild steel) 63 x 1.5 mm (stainless steel) 35 x 35 x 4 (square structural steel) |
| Max. Radii | 150 mm |
| Usable length | 2000 mm 3048 mm (standard) 4572 mm 6096 mm (special) |
| Speed of the bending axis | 180 °/sec. |
| Range | 6-80 mm |
| Max. Capacity | 80 x 3 mm (mild steel) 80 x 2 mm (stainless steel) 55 x 4.0 mm (square structural steel) |
| Max. Radii | 240 mm |
| Usable length | 3048 mm (standard) 4572 mm 6096 mm (special) |
| Speed of the bending axis | 100 °/sec. |
| Range | 20-101.6 mm |
| Max. Max. capacity | 101.6 mm x 3 mm (mild steel) 101.6 mm x 3 mm (stainless steel) 70 x 70 x 4 mm (square structural steel) |
| Max. Radii | 305 mm |
| Usable length | 3048 mm (standard) 4572 mm 6096 mm (special) |
| Speed of the bending axis | 80 °/sec. |
| Range | 40-130 mm |
| Max. Capacity | 130 x 3.0 mm (mild steel) 130 x 2.5 mm (stainless steel) 90 x 90 x 5.0 (square structural steel) |
| Max. Radii | 390 mm |
| Usable length | 4572 mm 6096 mm (special version) |
| Speed of the bending axis | 65 °/sec. |
| Range | 20-150 mm |
| Max. Max. capacity | 150 x 3.0 mm (mild steel) 150 x 2.5 mm (stainless steel) 90 x 90 x 5.0 mm (square structural steel) |
| Max. Radii | 450 mm |
| Usable length | 4572 mm 6096 mm (special version) |
| Speed of the bending axis | 65 °/sec. |
Your advantages at a glance
-

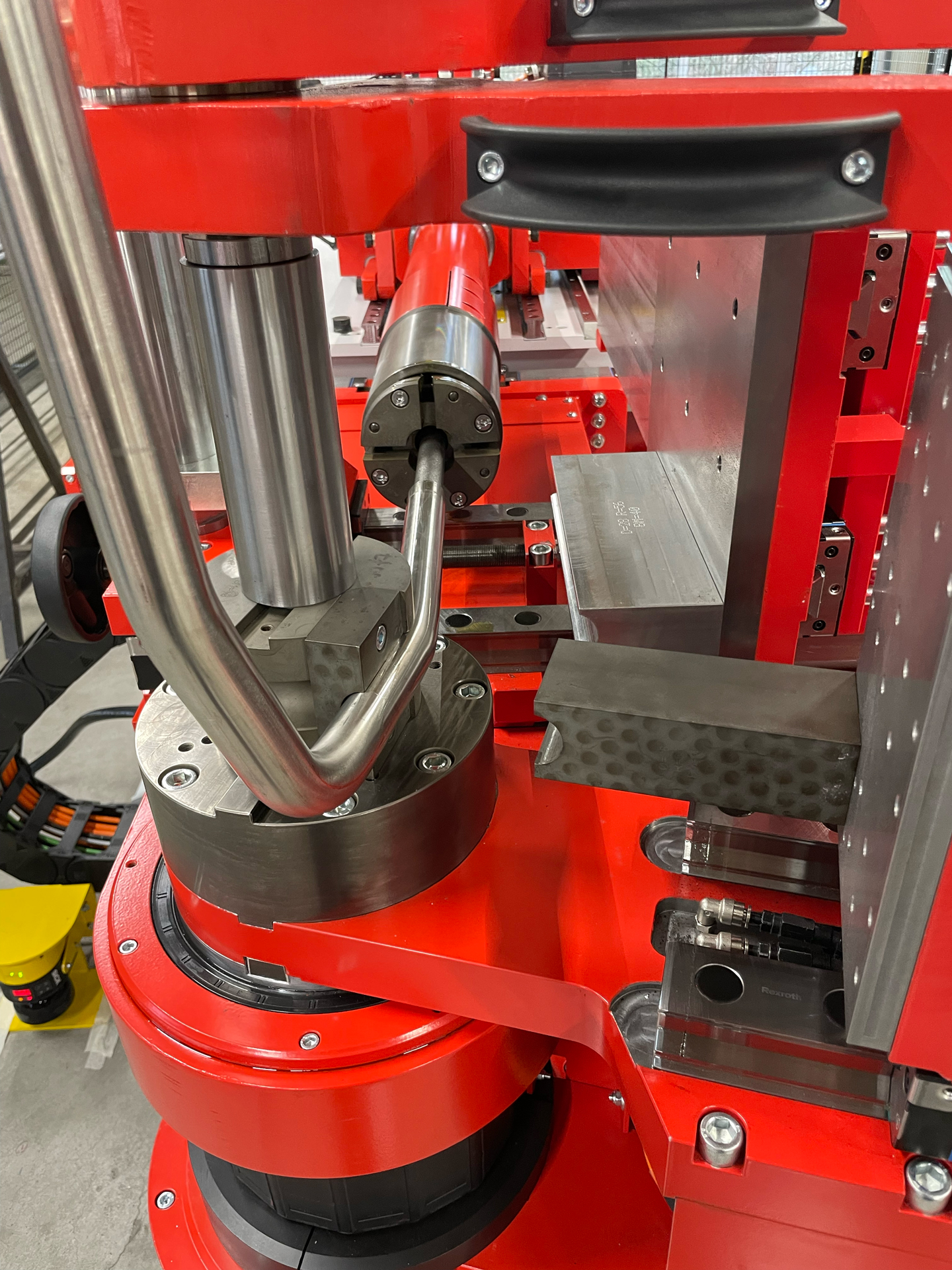

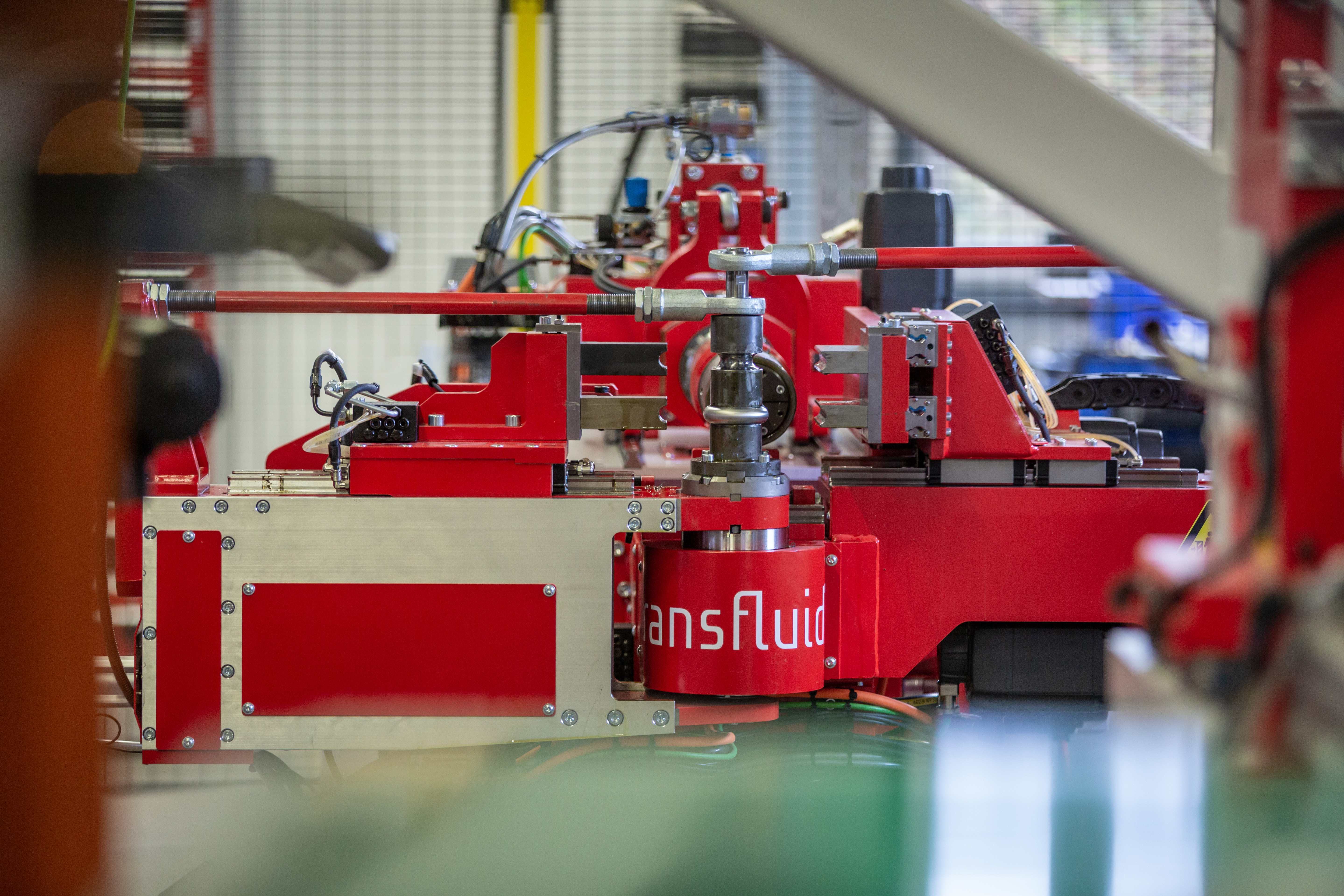

MULTI-STAGE BENDING

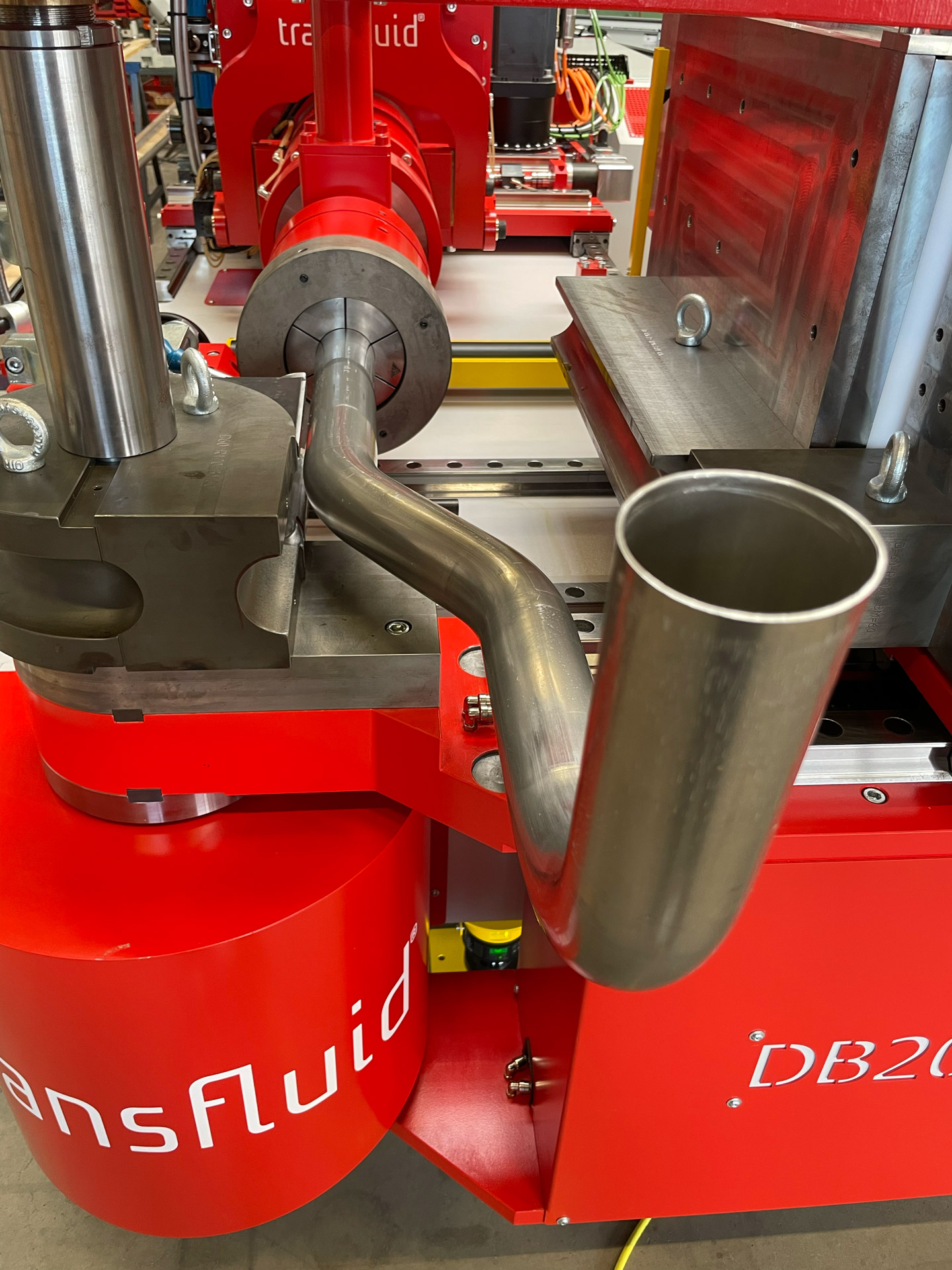

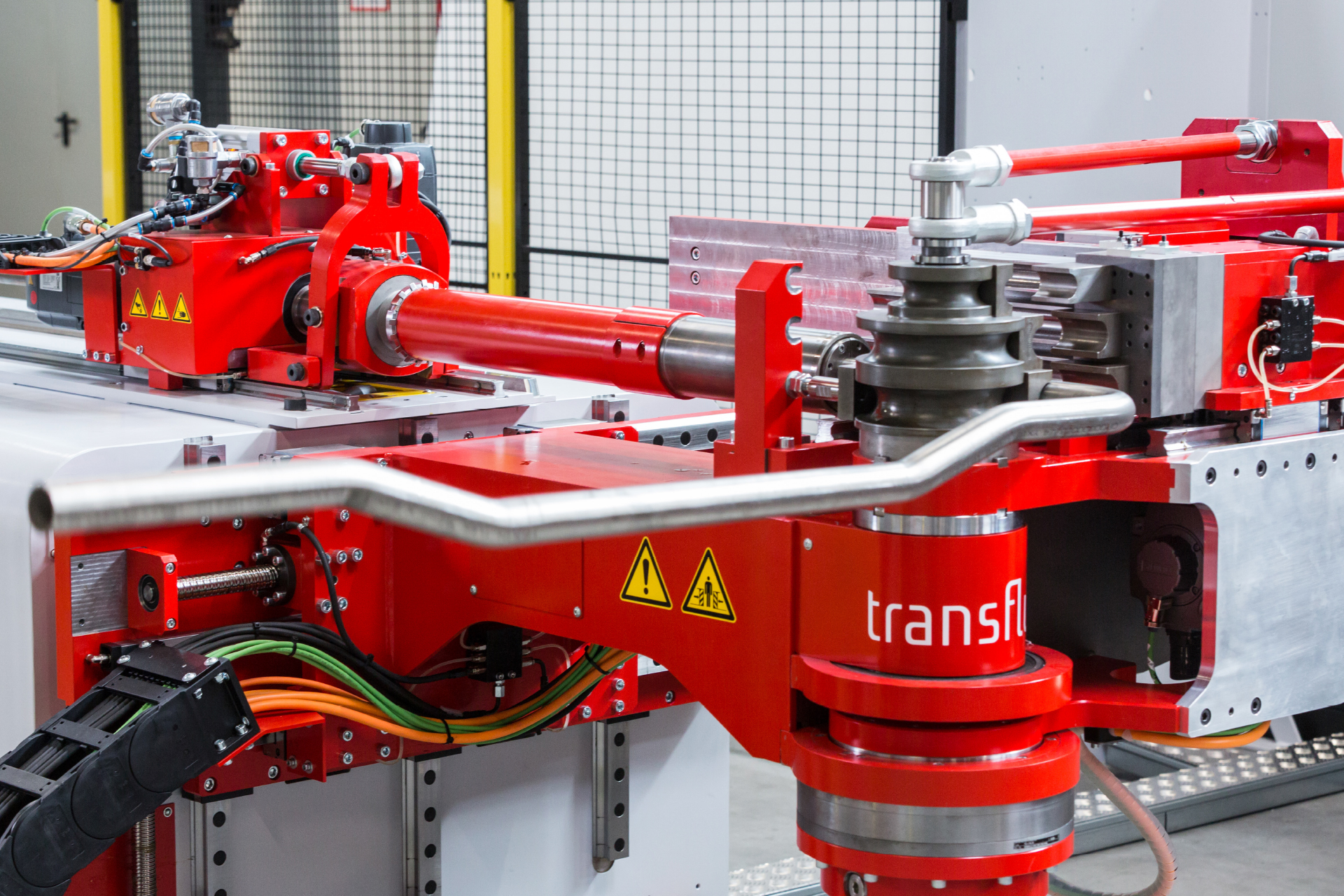

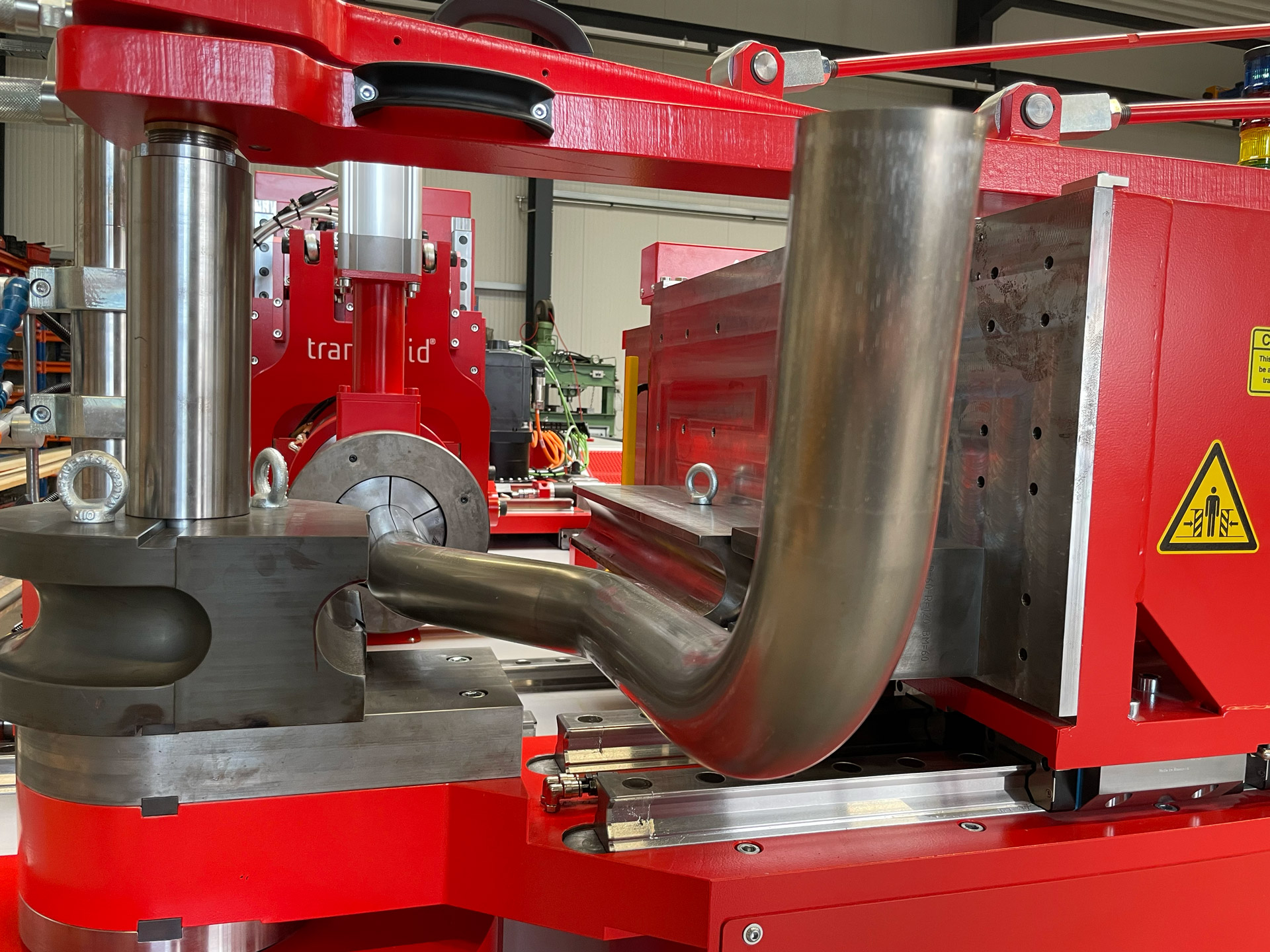

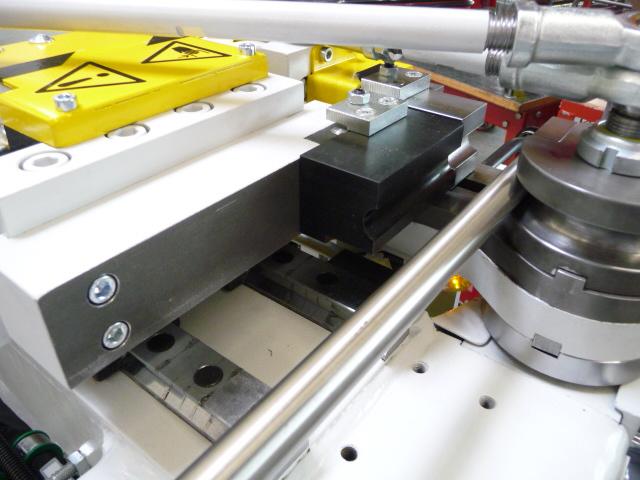

Each bending head can be equipped with at least two bending planes, e.g. with different bending radii or form clamping pieces to accommodate forming or bends in the case of short clamping lengths.
-
CUSTOMIZED BENDING TOOLS

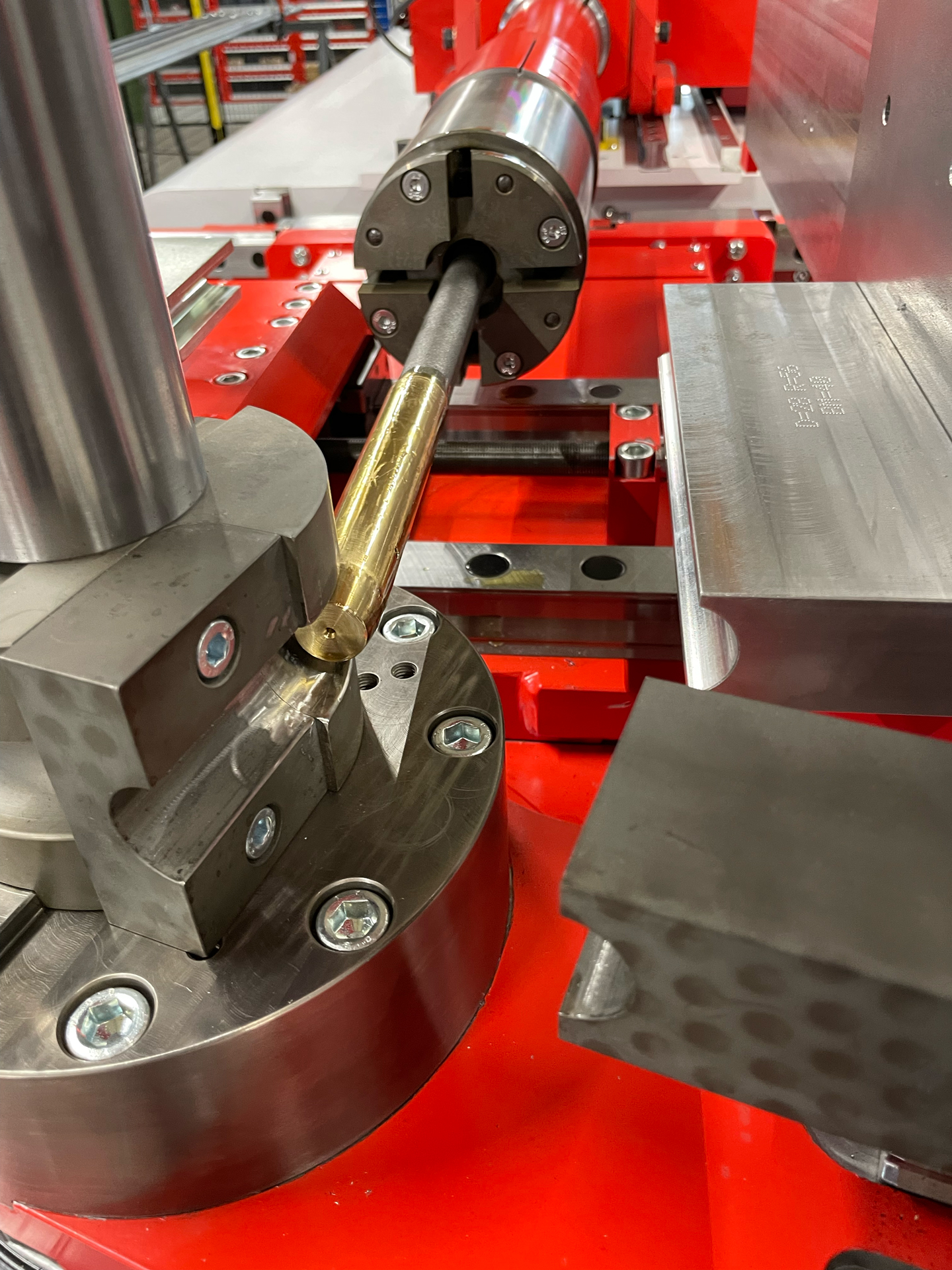

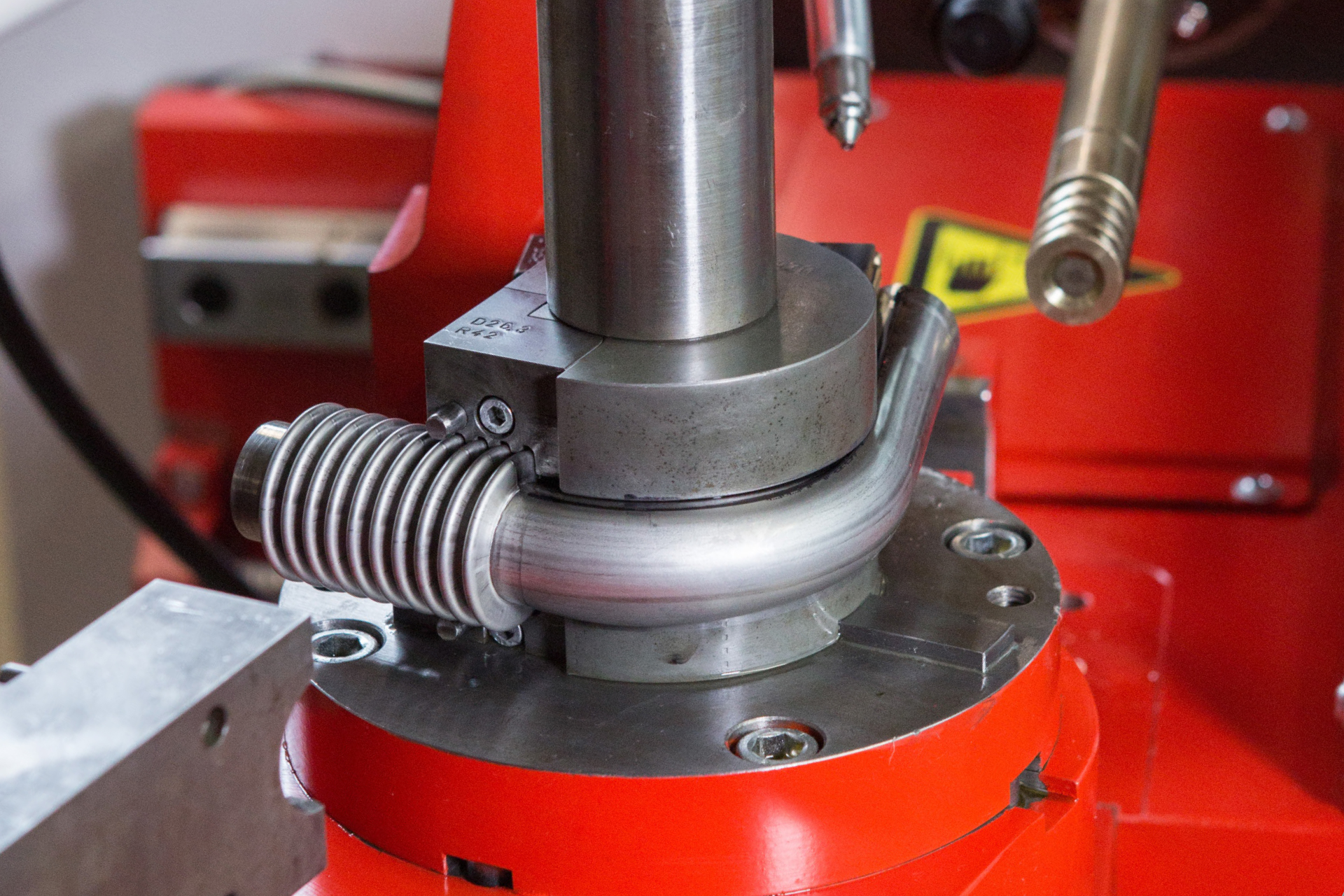

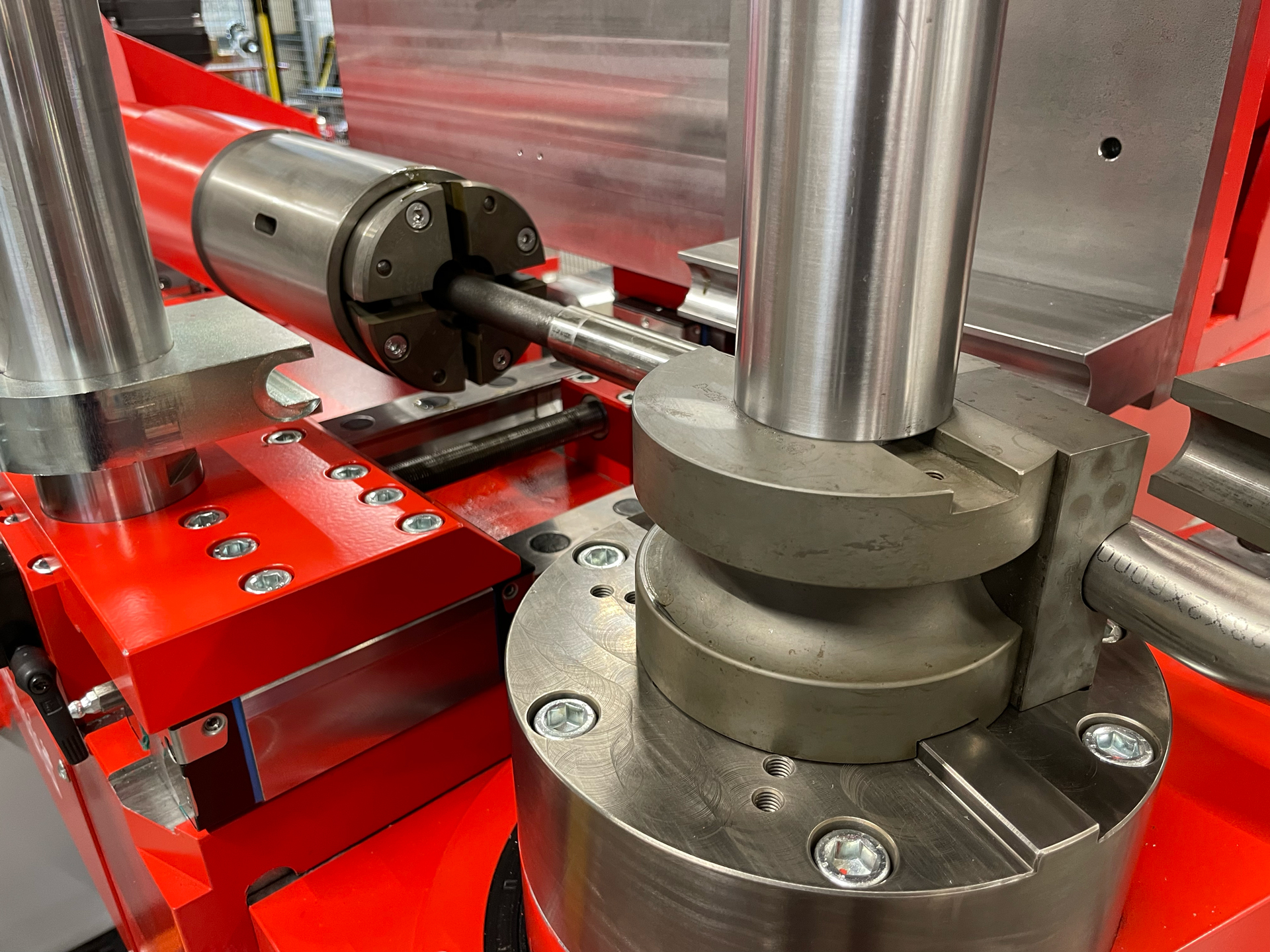

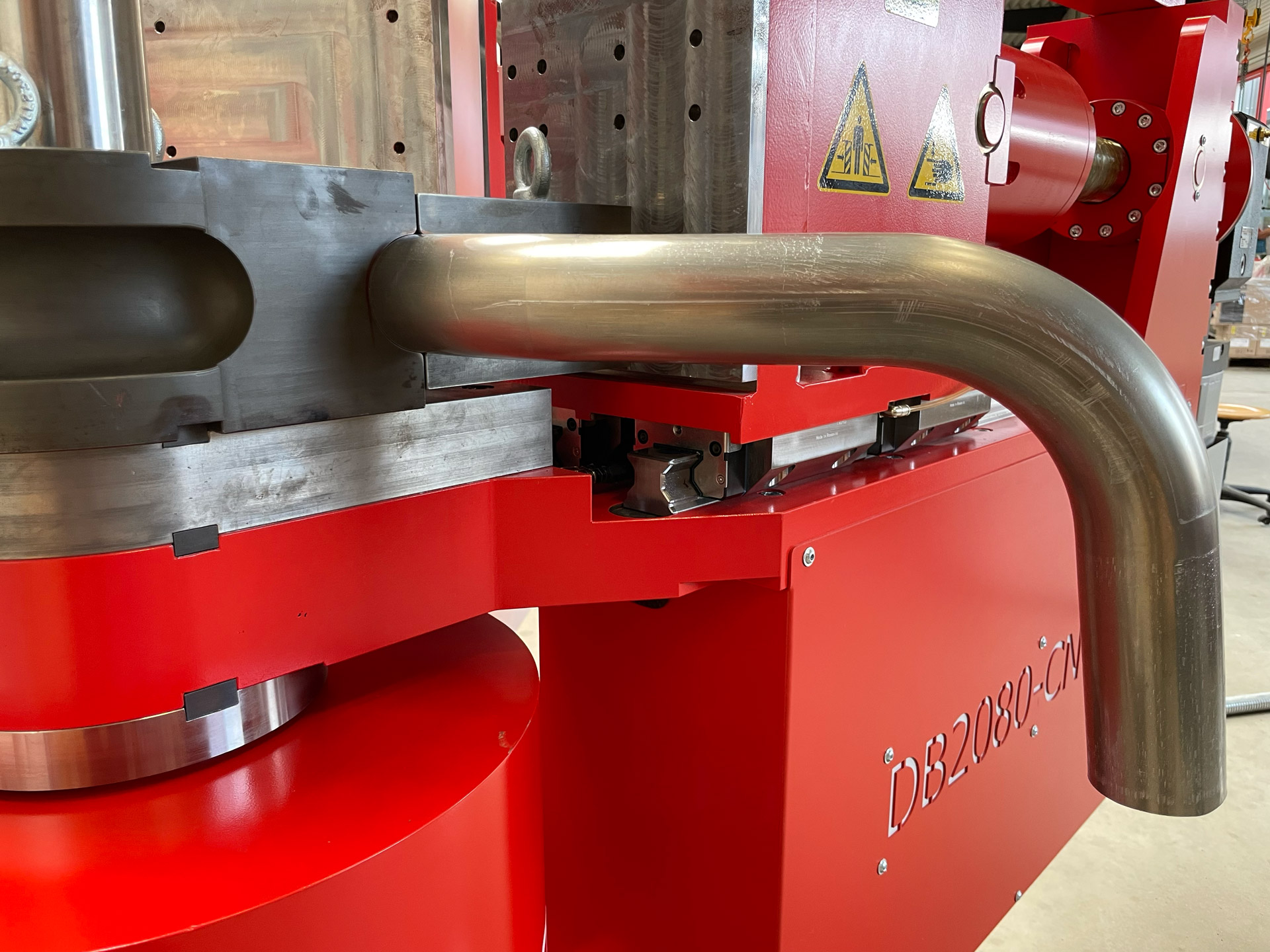

Bending tools for tubes with already formed tube ends.
-
FULL MATERIAL

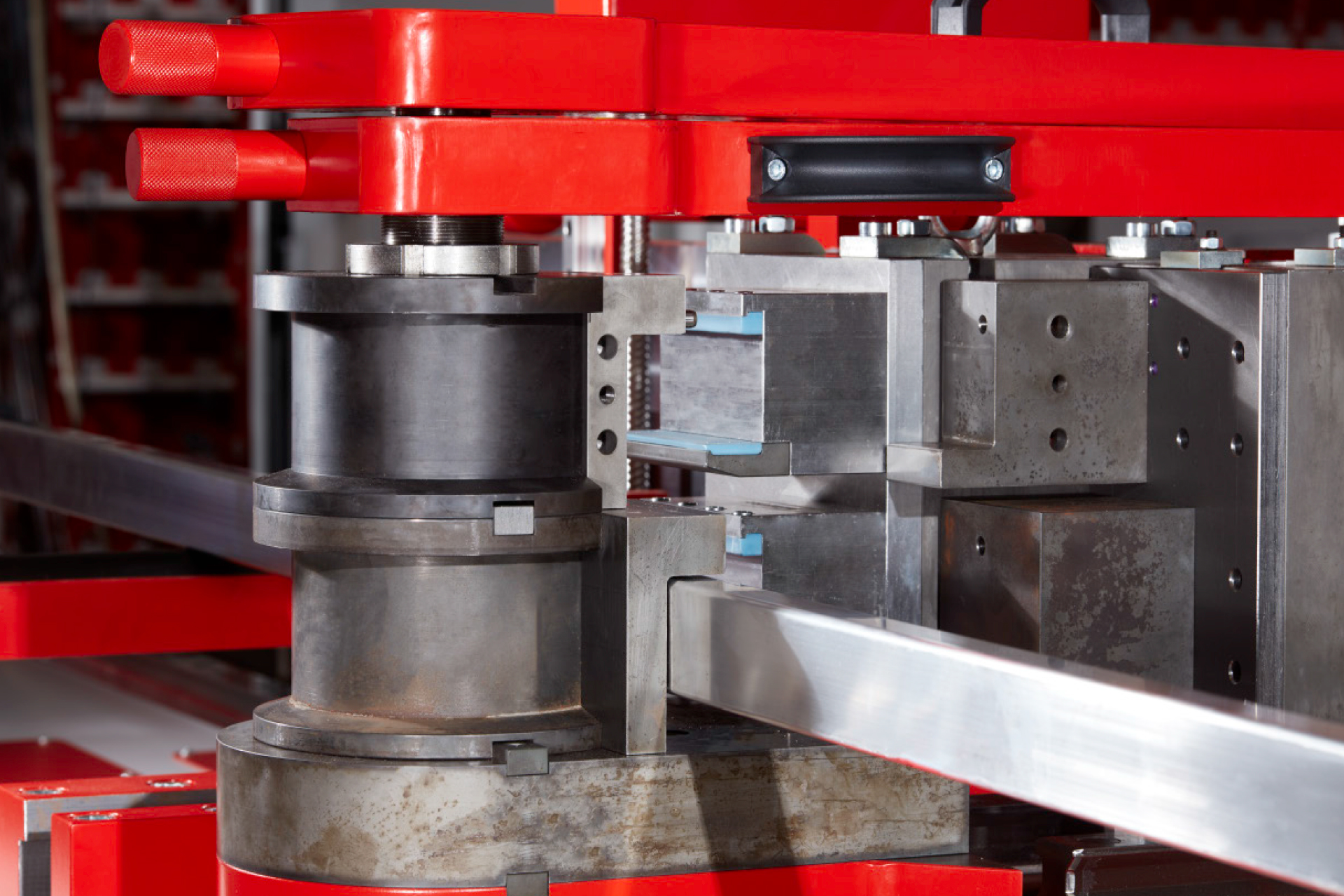

Adaptation of the bending machine for bending busbars / flat conductors.
-

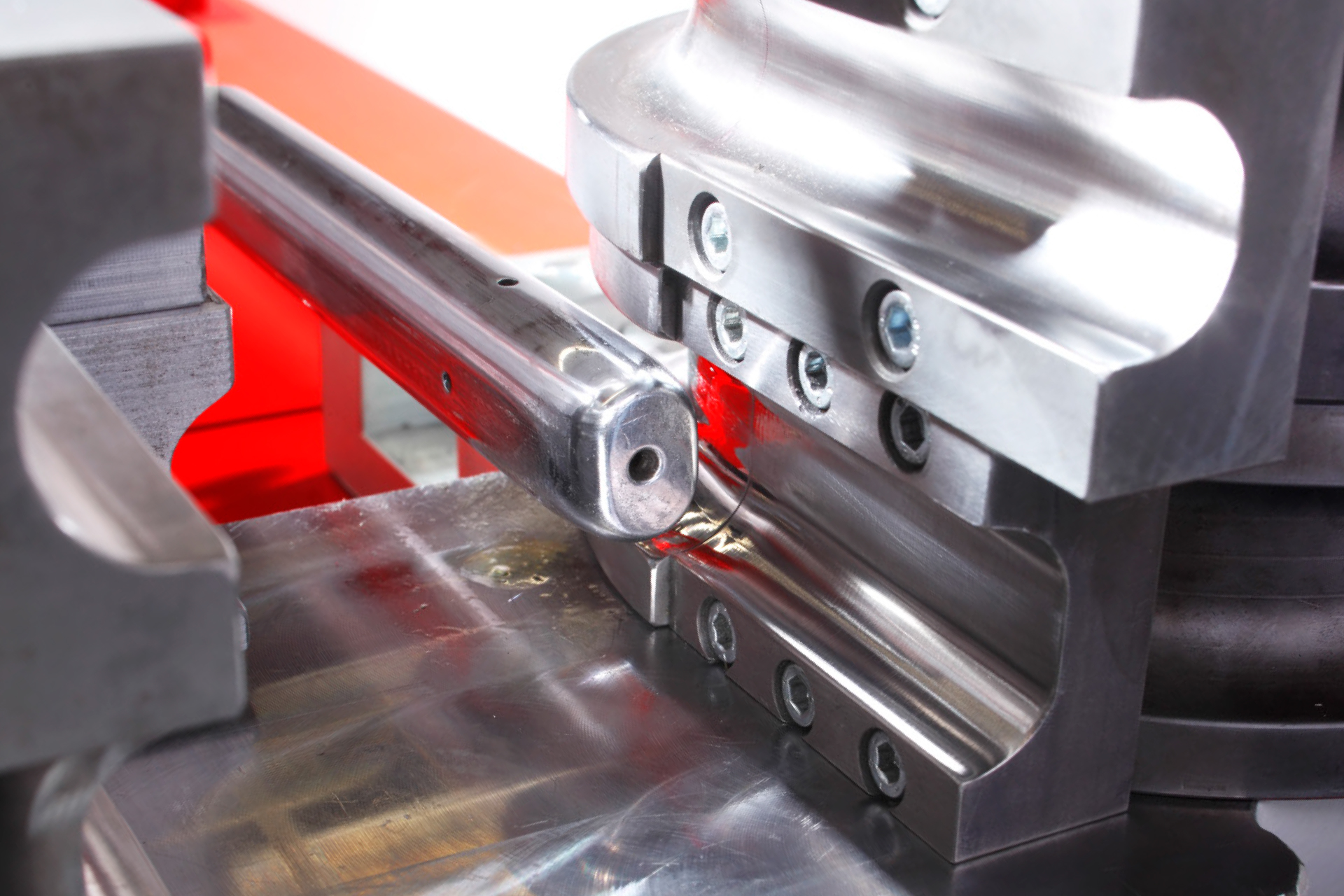

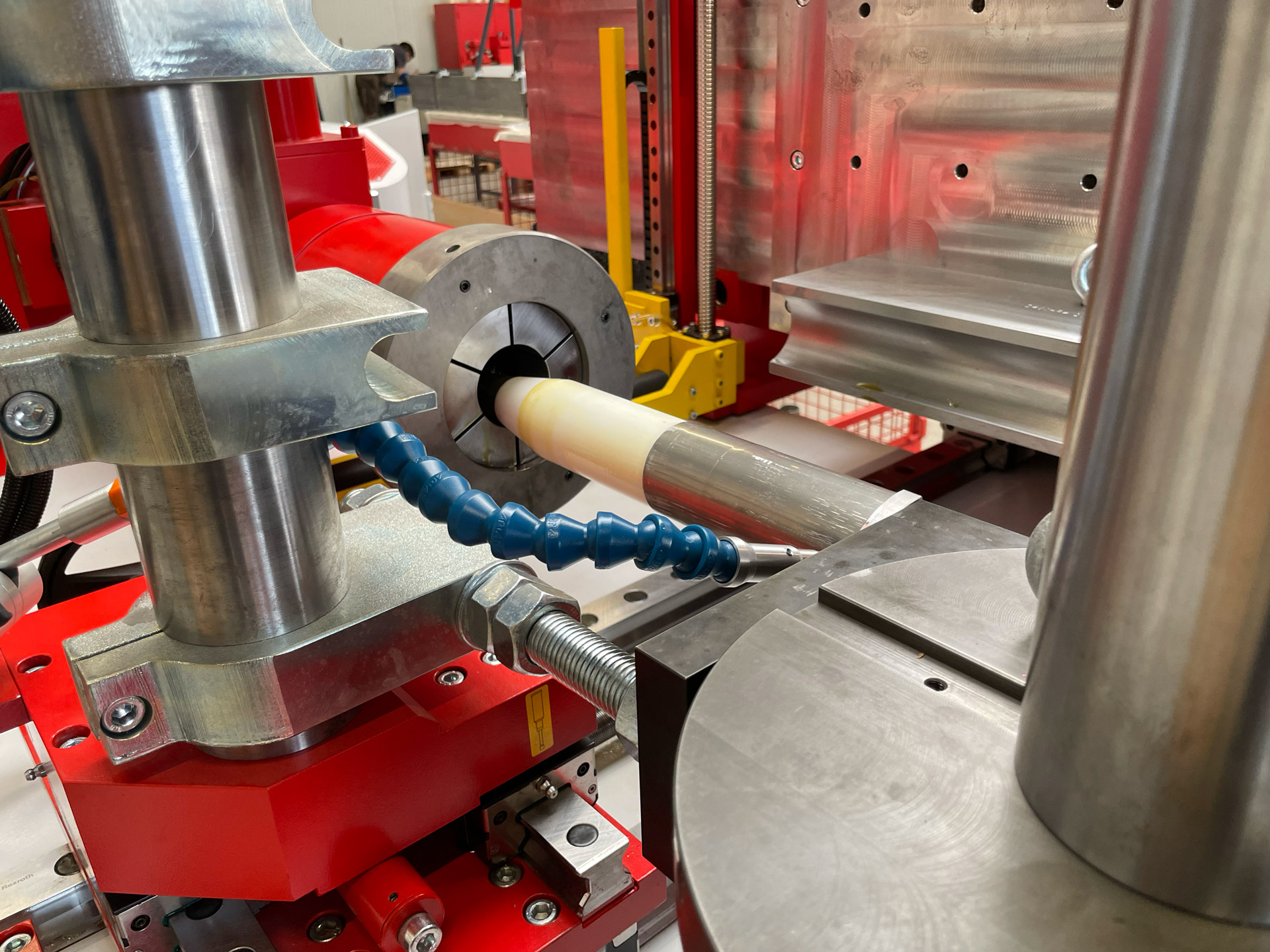

BENDING MANDRELS
Bending mandrels and crease smoothers for a wide range of materials and requirements.
-

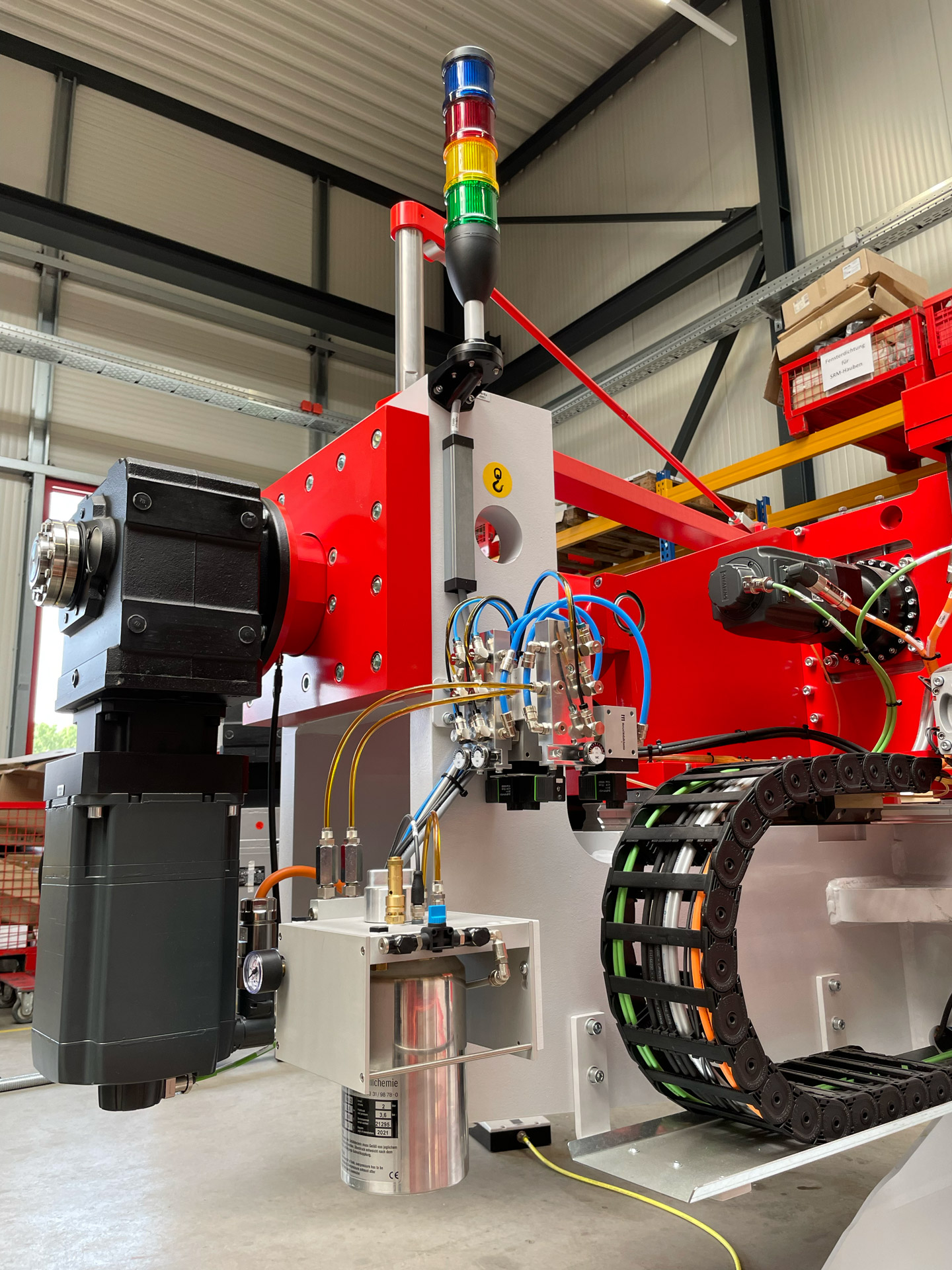

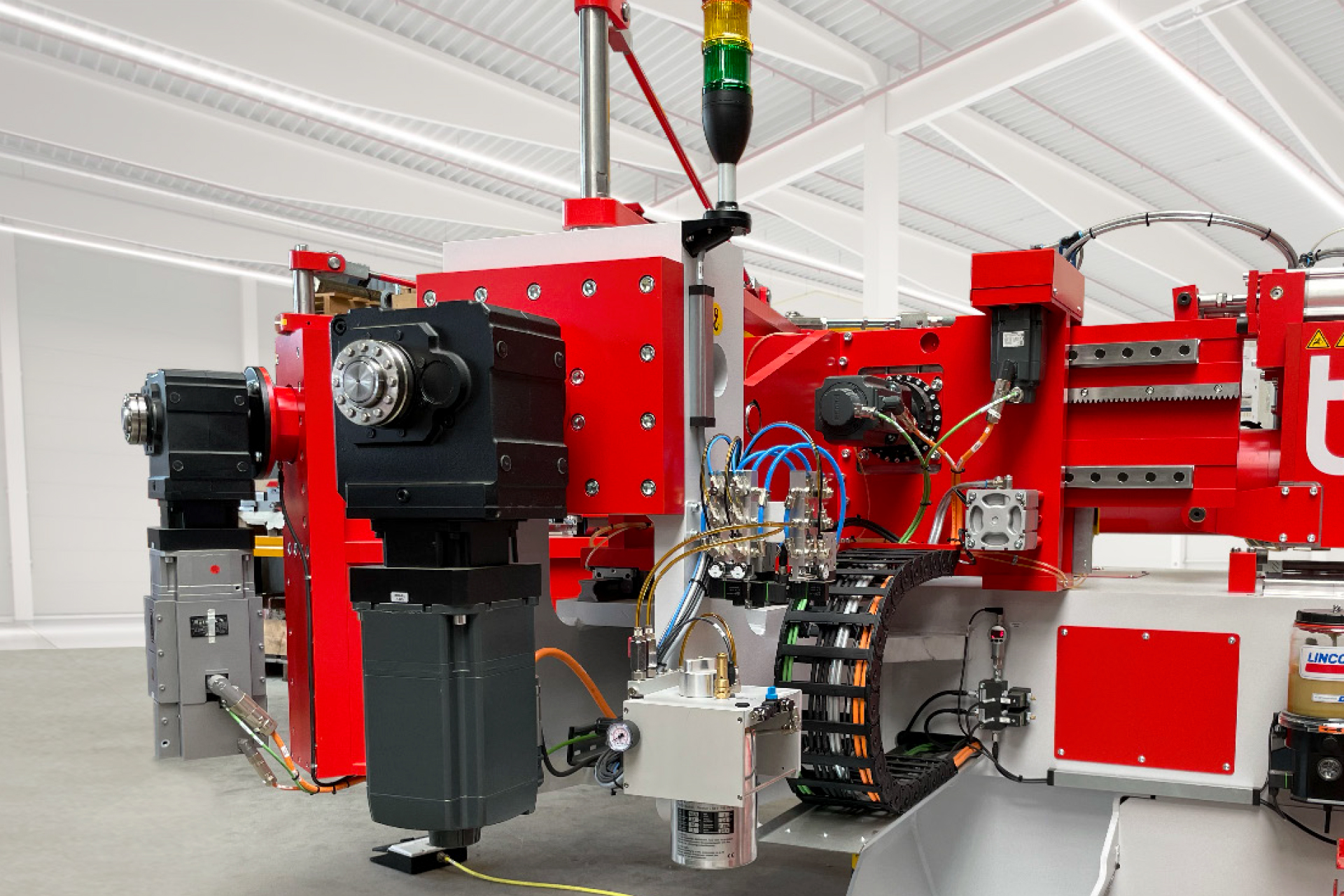

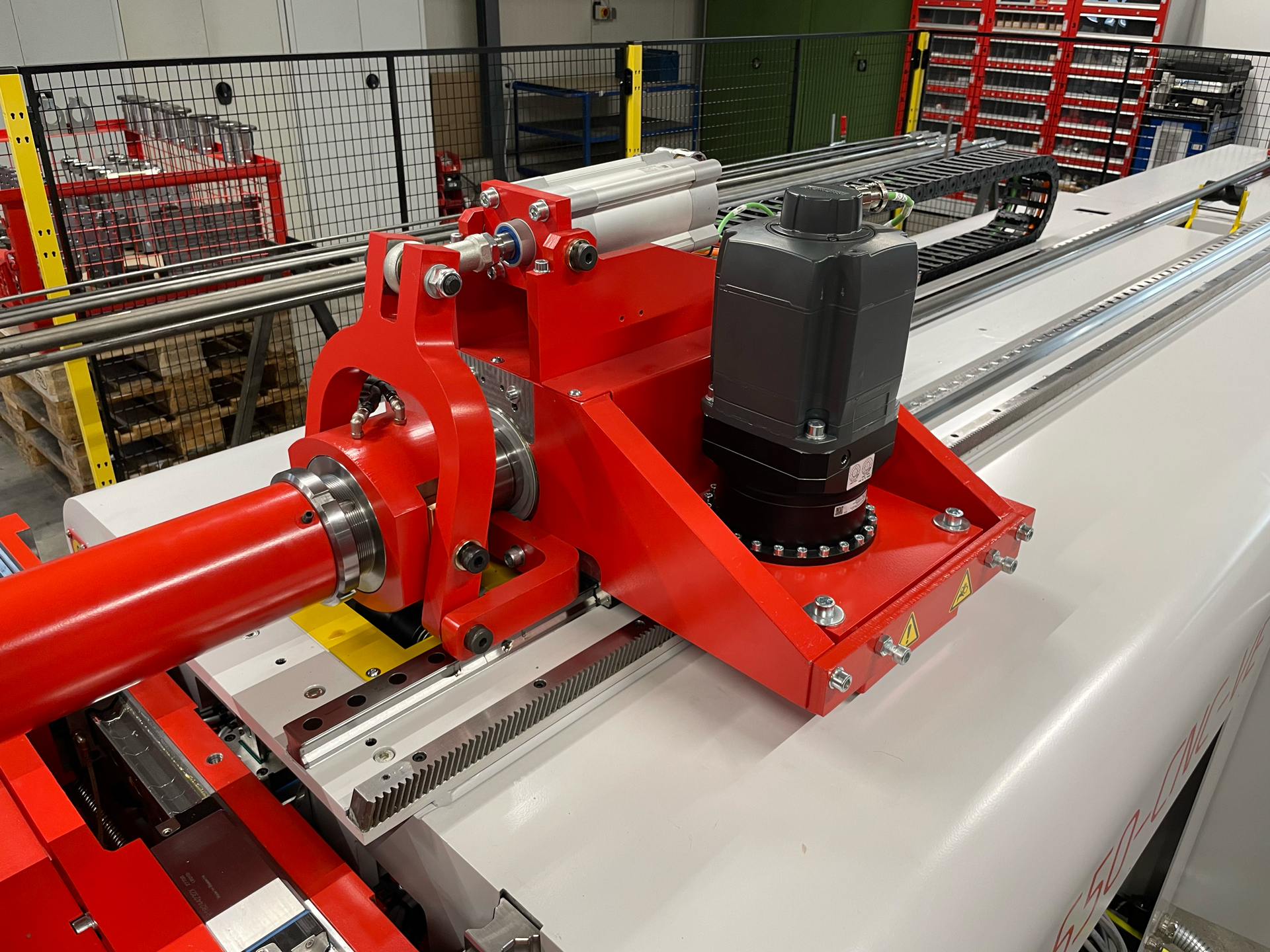

100% SERVO-ELECTRIC TECHNOLOGY
All axles are electrically driven - quietly, precisely and with up to 70 % less energy consumption.
-
CONTROL

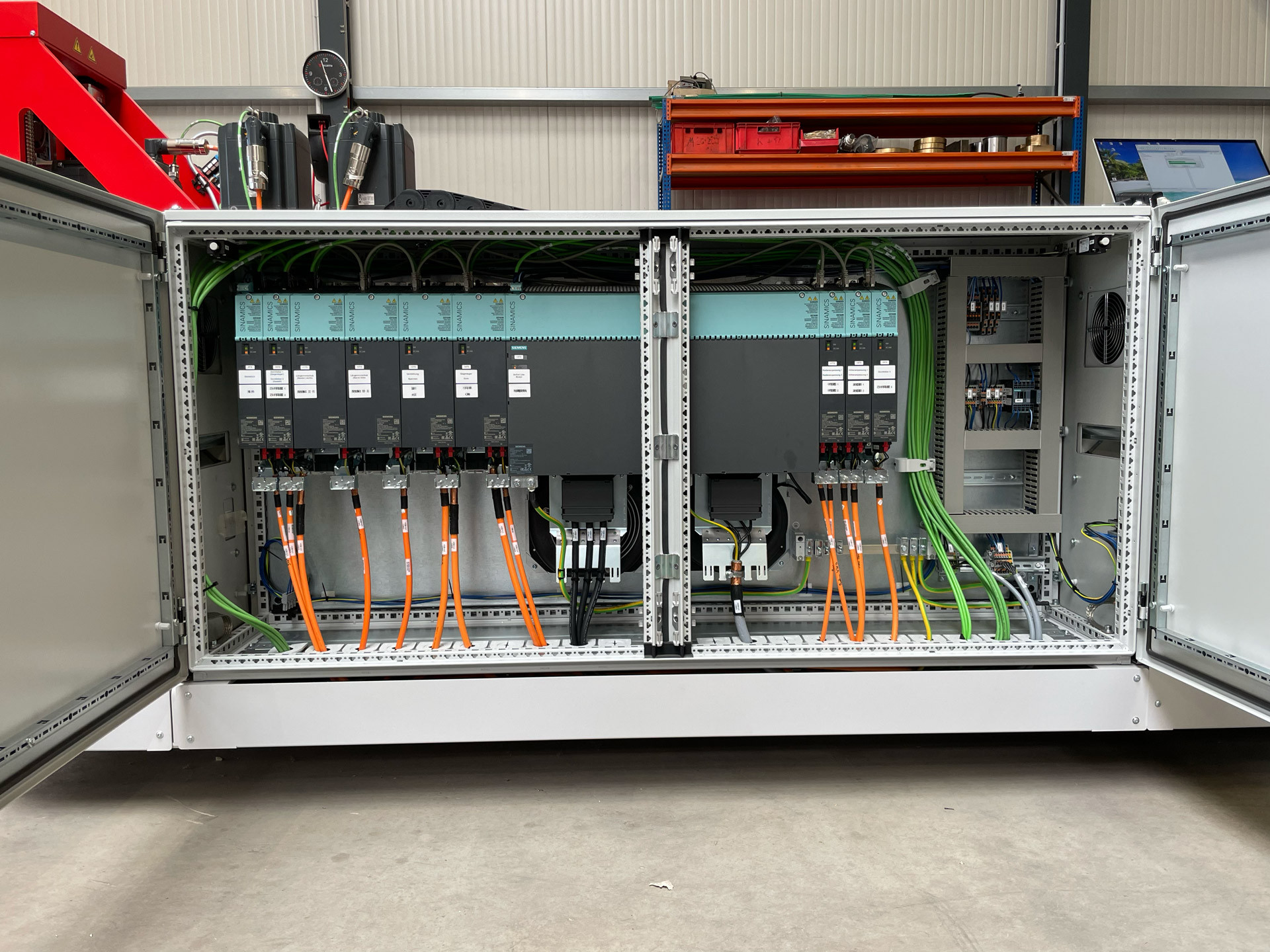

The control unit is equipped with high-quality electronic components from leading suppliers. This ensures a long service life and a reliable supply of spare parts over a long period of time.
-

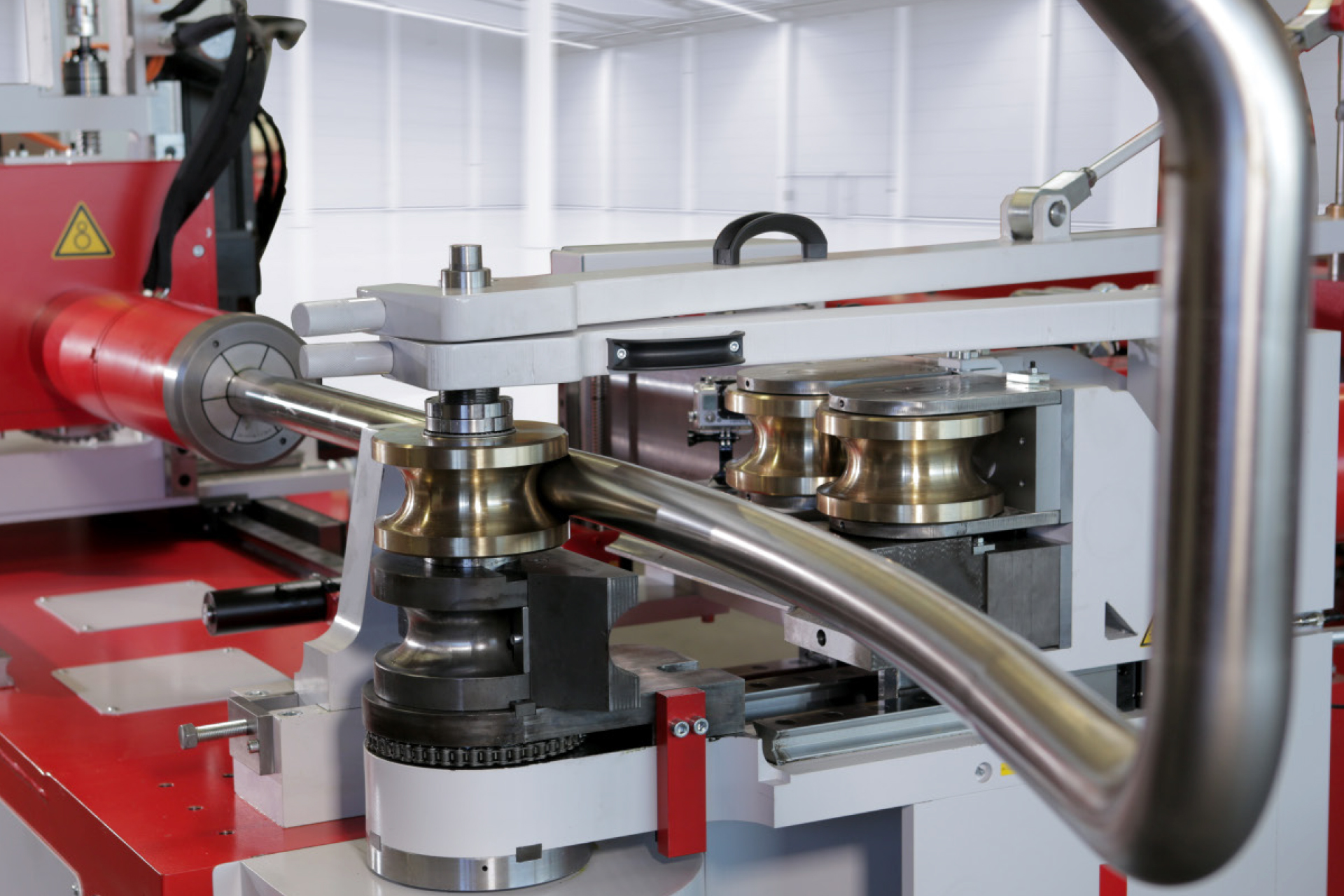

PUSH BENDING
Press-on and free-form option for maximum flexibility in part production. The machine is capable of producing parts with multiple radii, free-form bending and tight radii under 1 x D. This versatility makes the machine suitable for all industry challenges.
-

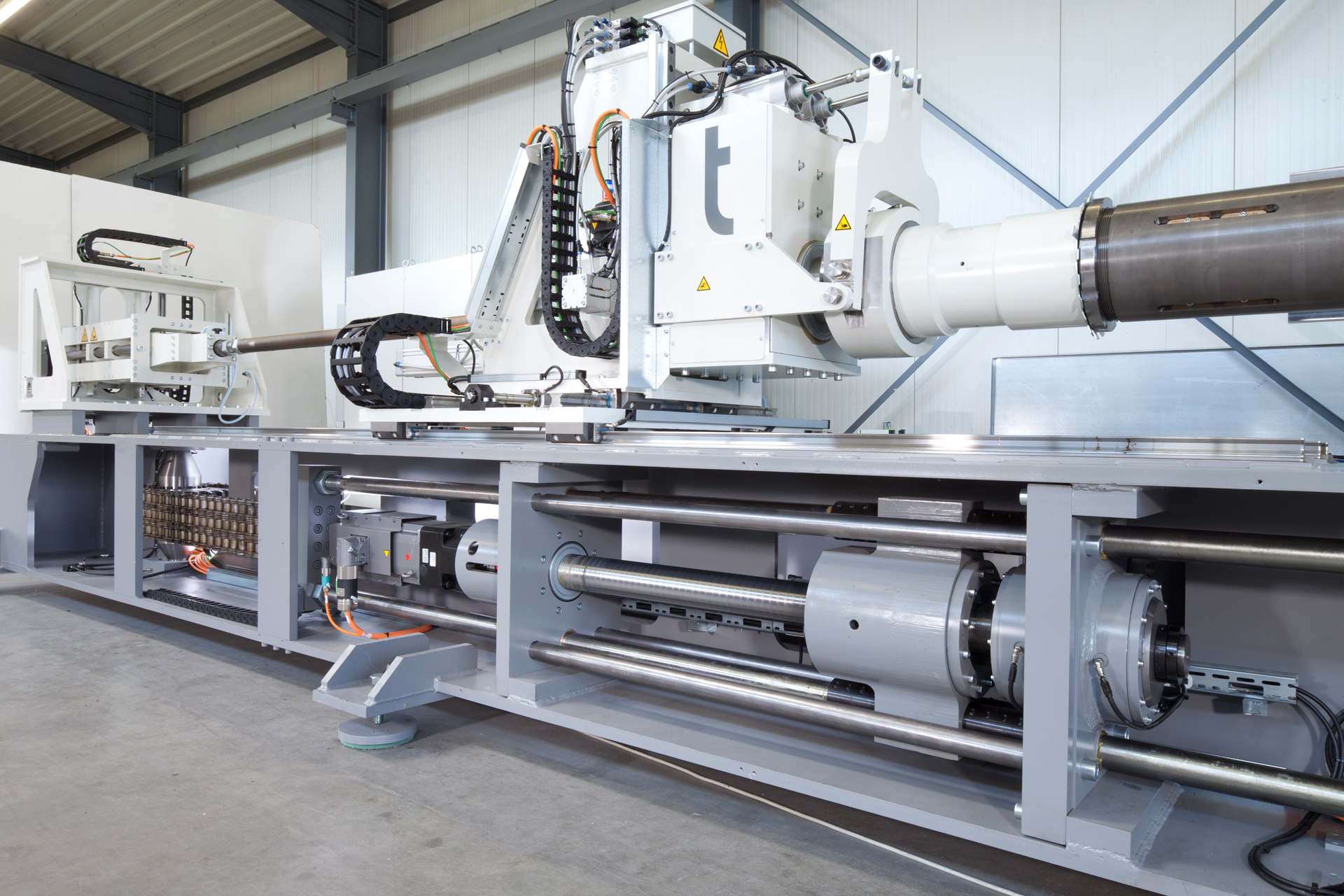

SOLID WELDING CONSTRUCTION
This series impresses with its special stability, performance and extremely durable machine design.

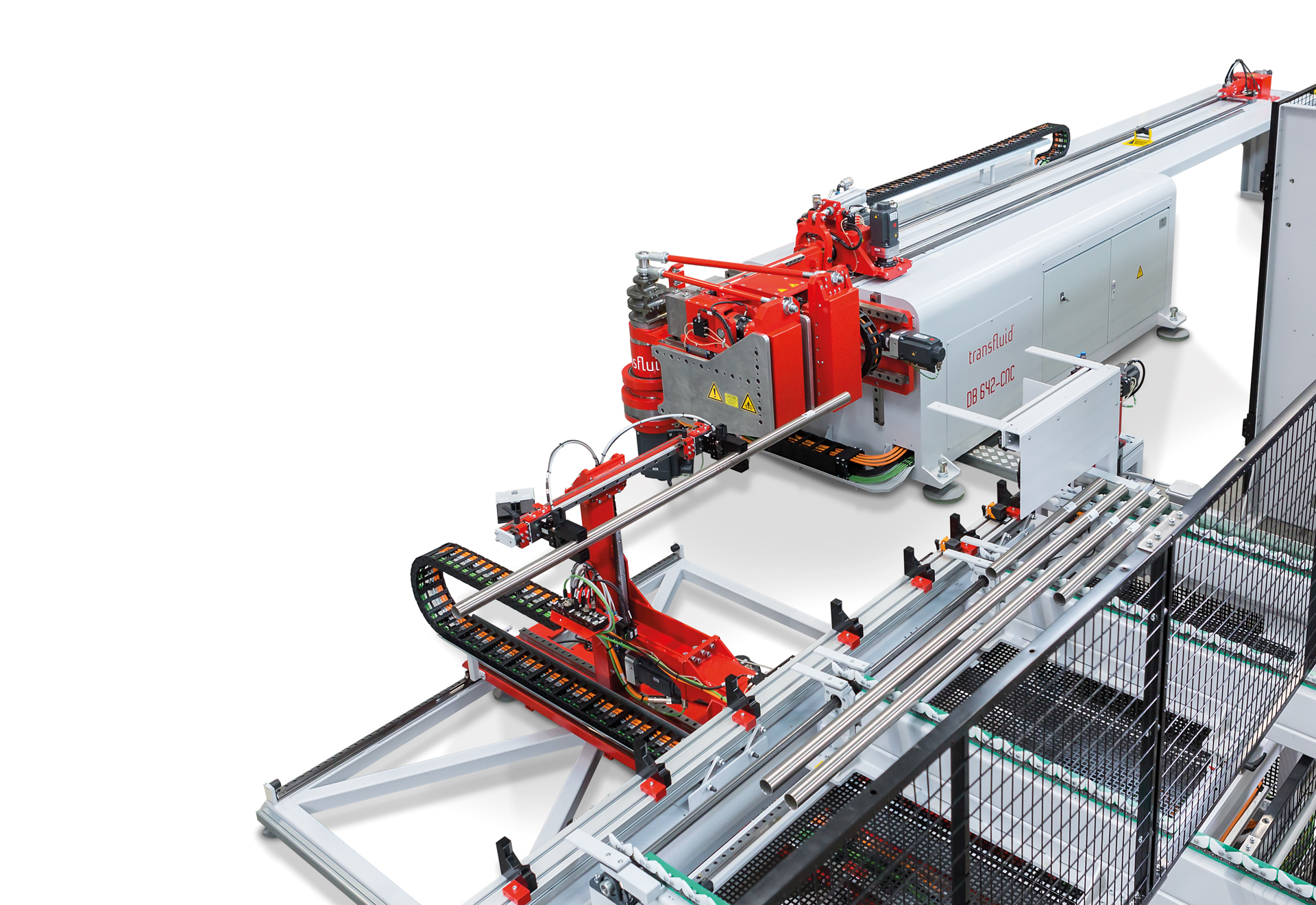

COST-EFFECTIVE MATERIAL FEEDING

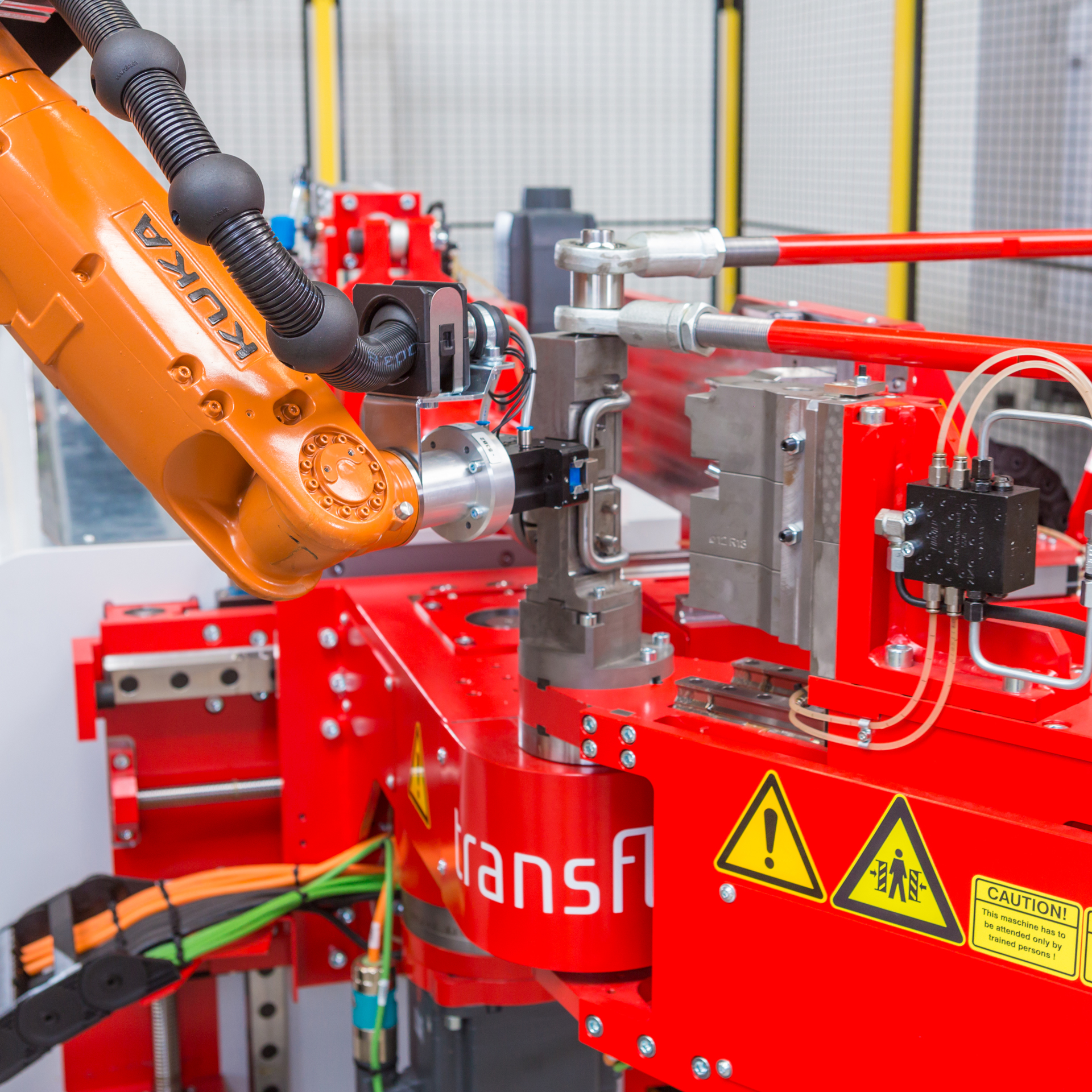

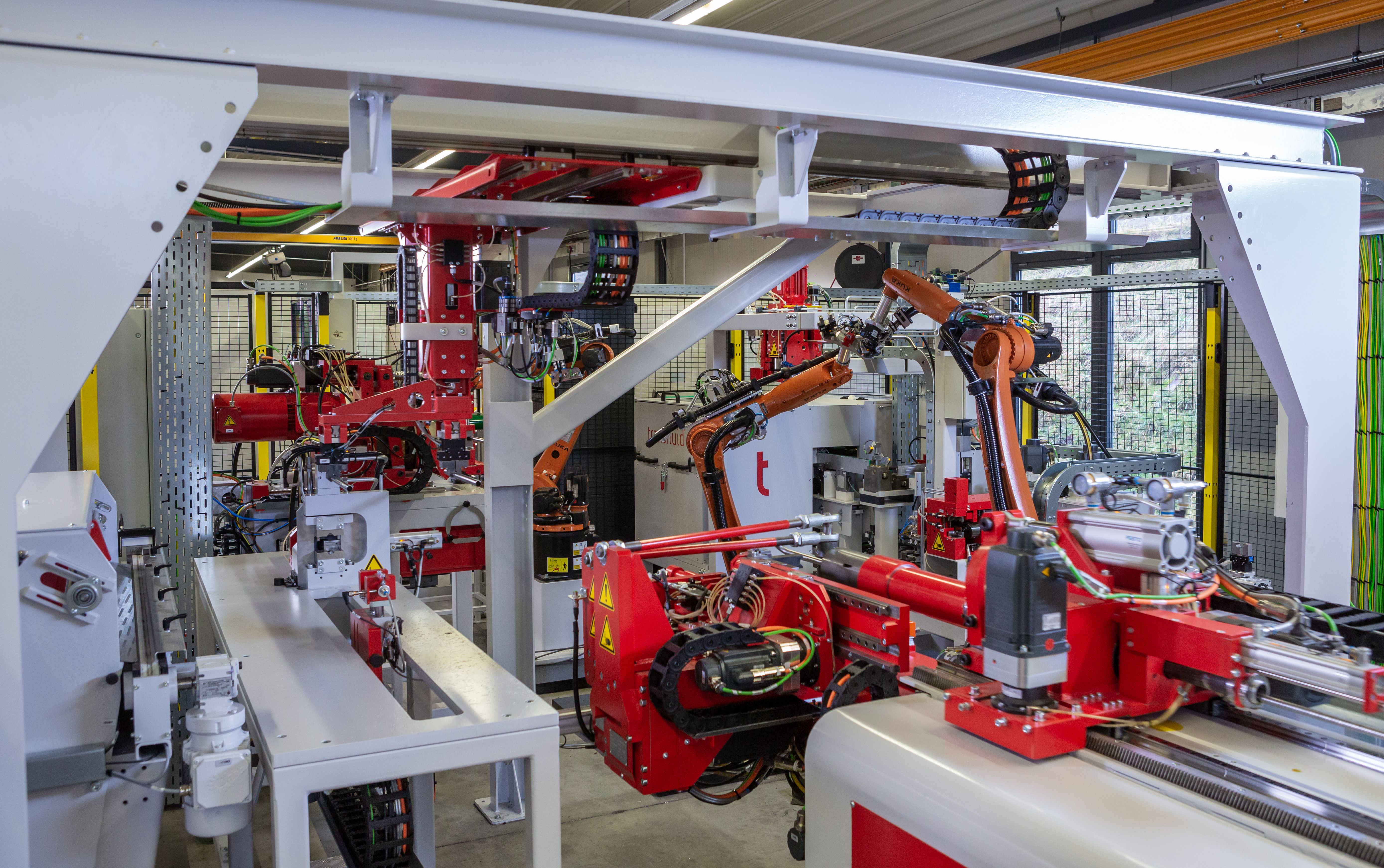

We offer a variety of loading systems for all machines, depending on the material, tube diameter and tube length. Even tubes that have already been formed with additional components can be loaded without any problems. Correct alignment is very important when inserting the tube into the production cell. External workpieces, such as nuts, flanges and support sleeves, can be fed into the system in a controlled manner and included in the subsequent processing steps. A wide variety of loading volumes is possible.
POWERFUL SOFTWARE
With the tube bending software t project and the upload functions, you can go directly from CAD to the tube bender. The virtual bending simulation determines exact bending times and cutting lengths and checks tube geometries for feasibility in advance. Tube data and bending results are documented precisely and are then 100% reproducible. Simple programming from your desk, quick calculation of new projects, collision check before commissioning the machine and direct upload of the tube bending sequence to the tube bending machine.
