transfluid - t form MULTILINE

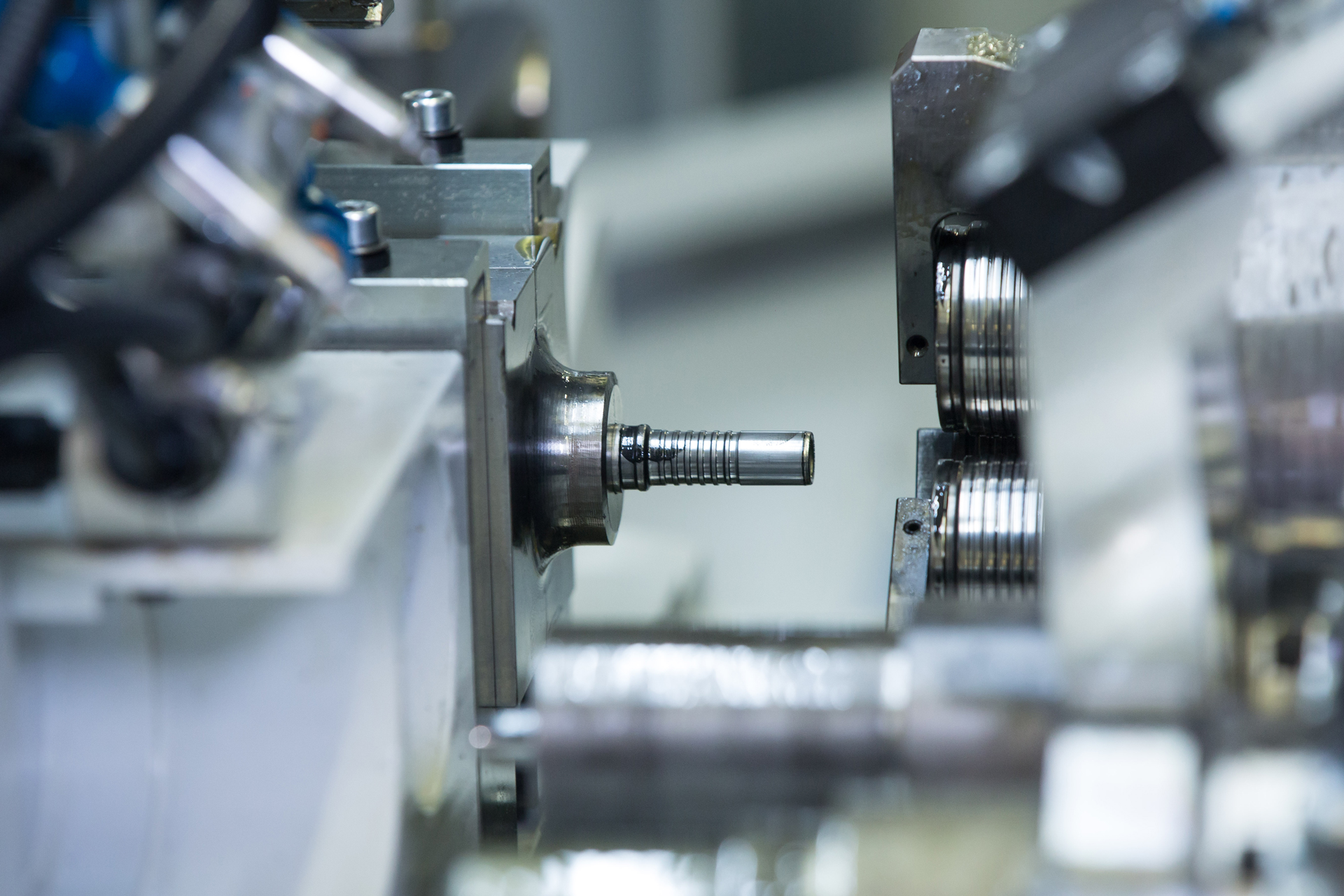

Roll forming tube forming machines
Process- and quality-optimized - perfect surface quality- Complex and highly precise - exact radii, O-ring seats and sharp-edged contours
- Efficient and flexible - shortest clamping lengths from 1×D processing even after bending
- Tool-optimized and powerful - minimum tool effort, maximum output
Becoming flexible in tube end forming
Ideally suited for the production of demanding contours for sealing elements and for creating extremely good surfaces.
The right machine for your task
Product video

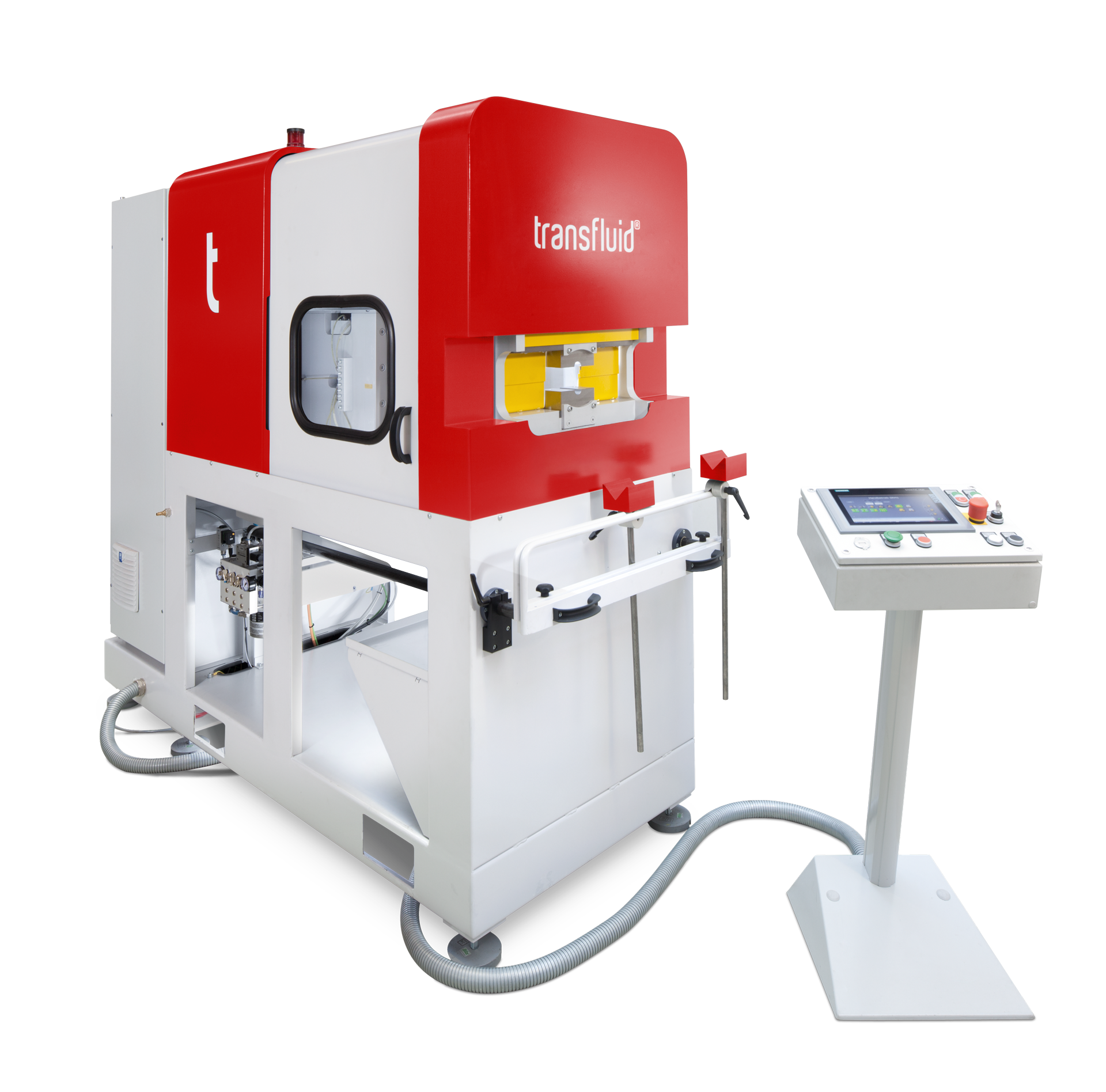

Roll forming machines type MULTILINE
| Tube diameter | 4-22 mm |
| Wall thickness max. | 1 mm max |
| Rpm | 300 - 1000 |
| Cycle time adjustable (sec.) | 4 - 10 |
| Working length | max. 40 mm |
| Clamping length | 1.0 x D |
| Power (kW) | 4 |
| Weight (kg) | 1250 |
| L x W x H (mm) | 2000 x 900 x 2000 |
| Tube diameter | 5-65 mm |
| Wall thickness max. | 1.5 mm max |
| RPM | 300 - 1000 |
| Adjustable cycle time | 8 - 14 sec. |
| Working length | max. 40 mm |
| Clamping length | 1.0 x D |
| Power output | 8 kW |
| Max. weight | 1700 kg |
| L x W x H | 2000 x 900 x 2000 mm |
| Tube diameter | 40-127.3 mm |
| Wall thickness max. | 2 mm max |
| Rpm | 50 - 450 |
| Adjustable cycle time | 8 - 14 sec. |
| Working length | max. 80 mm |
| Clamping length | 1.0 x D |
| Power output | 8 kW |
| Weight | 1700 kg |
| L x W x H | 2000 x 900 x 2000 mm |
| Tube diameter | 50 - 176 mm |
| Wall thickness max. | 3 mm max |
| Rpm | 80 - 280 |
| Adjustable cycle time | 15 - 50 sec. |
| Working length | max. 100 mm |
| Clamping length | 1.0 x D |
| Power output | 12 kW |
| Weight | 2200 kg |
| L x W x H | 2400 x 900 x 2200 mm |
Your advantages at a glance
-
EXTREMELY SHORT CLAMPING LENGTH
The clamping length depends on the tube size, approx. 1.0 x D. This gives the user the option of forming the tubes in a bent state.
-
SERVO-ELECTRIC DRIVES
All axes servo-electric, simultaneously CNC-controlled for maximum precision.
-
FORMING DEGREES WITH HIGHEST PRECISION

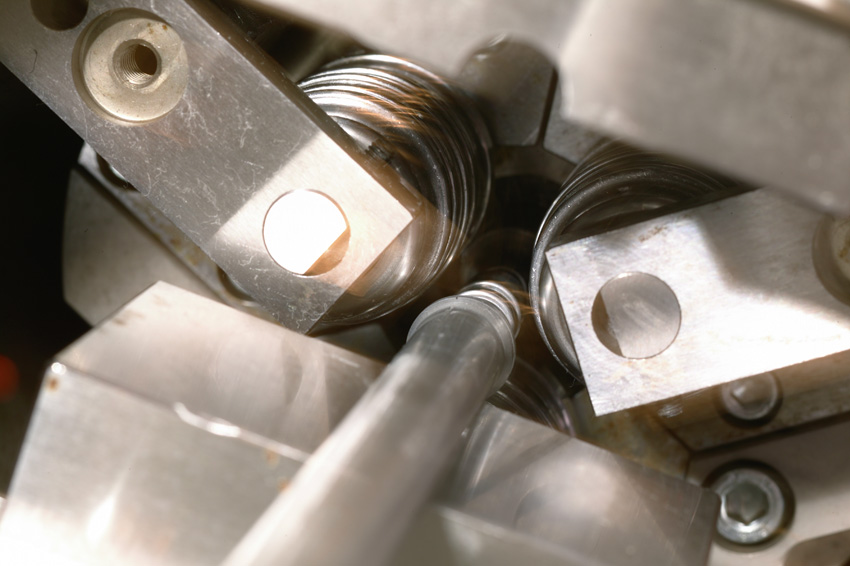

Our rolling forming technology expands the possibilities for forming tubes with minimal tooling.
-
SIMPLE CONTROL VIA TOUCH PANEL
Memory capacity for almost unlimited forming programs. Programs can be saved and called up via the drawing number. Adjustments and optimizations of the forming program are possible during operation, which shortens the set-up time for complicated formings and minimizes rejects during set-up.
-
PROCESSING THE EXTERIOR OR INTERIOR SURFACE
For forming tube ends from the outside to the inside or from the inside to the outside.
-
CHIPLESS CUTTING
Special tool concept for forming and cutting tube ends in a single work step, without changing tools.
PREPARED FOR INTEGRATION INTO PRODUCTION CELLS
This series impresses with its particular stability and performance. Individual pieces and small batches can be produced extremely economically with this machine concept. The use of high-quality components ensures the longevity of the machine.
SIMPLE CONTROL VIA TOUCH PANEL
All parameters are set centrally in the machine control system, controlled positioning of the forming axis and the stop position.
The material used and the shape to be achieved are decisive for the exact processing time. The machine carries out the processing virtually automatically if it is possible to call up the tube size with the necessary process parameters. In some cases, the clamping lengths for processing are 1 to 1.5 times the tube diameter.
Our new t form MULTILINE machine generation reduces the set-up time when changing tools and the operator can set up the machine in just a few minutes.

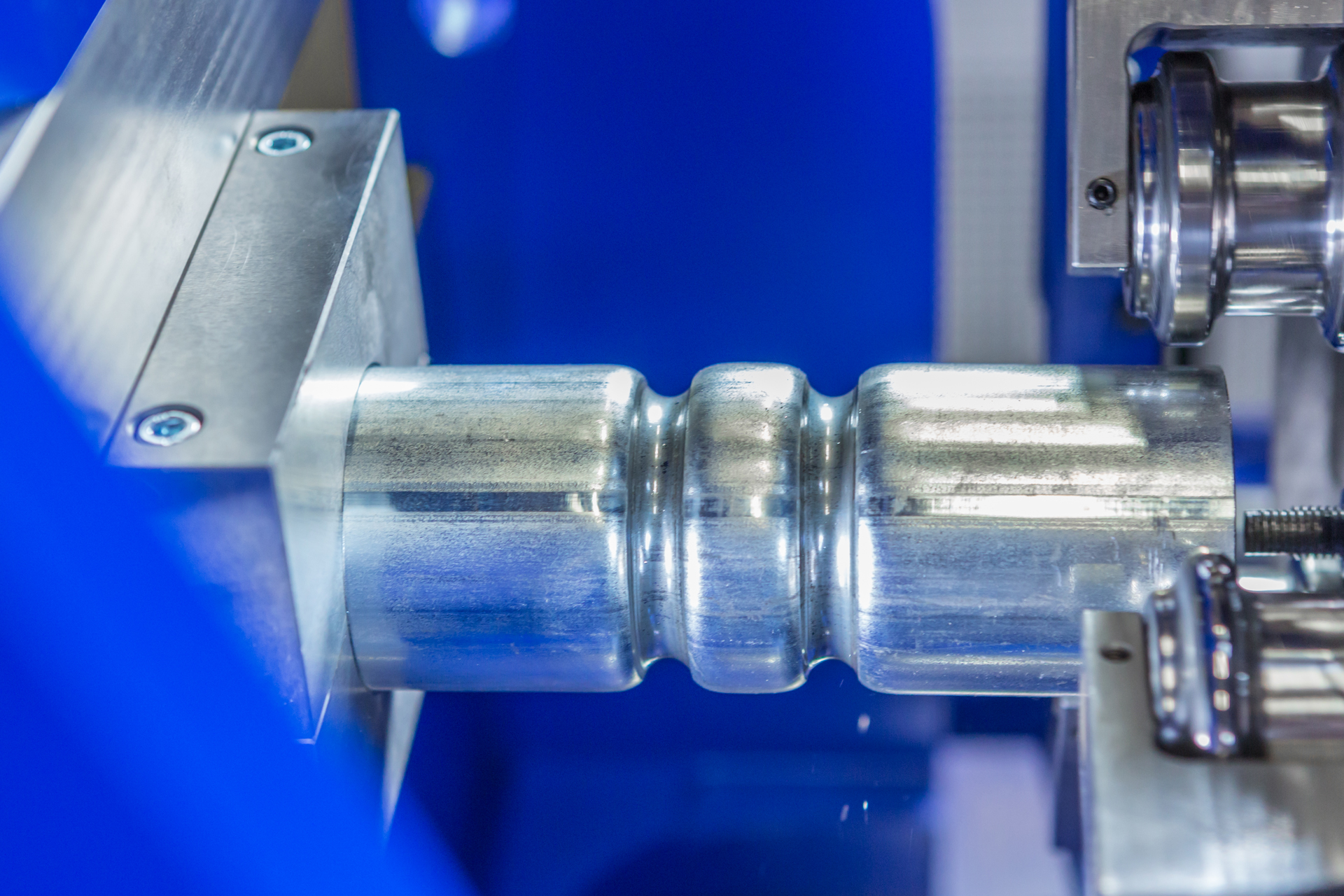

The solution for every geometry with excellent sealing surfaces
Tailored to your individual requirements and needs, we use our expertise to create optimum solutions.
Production samples
