transfluid - t work COMPACTLINE
Compact mandrel bending machines

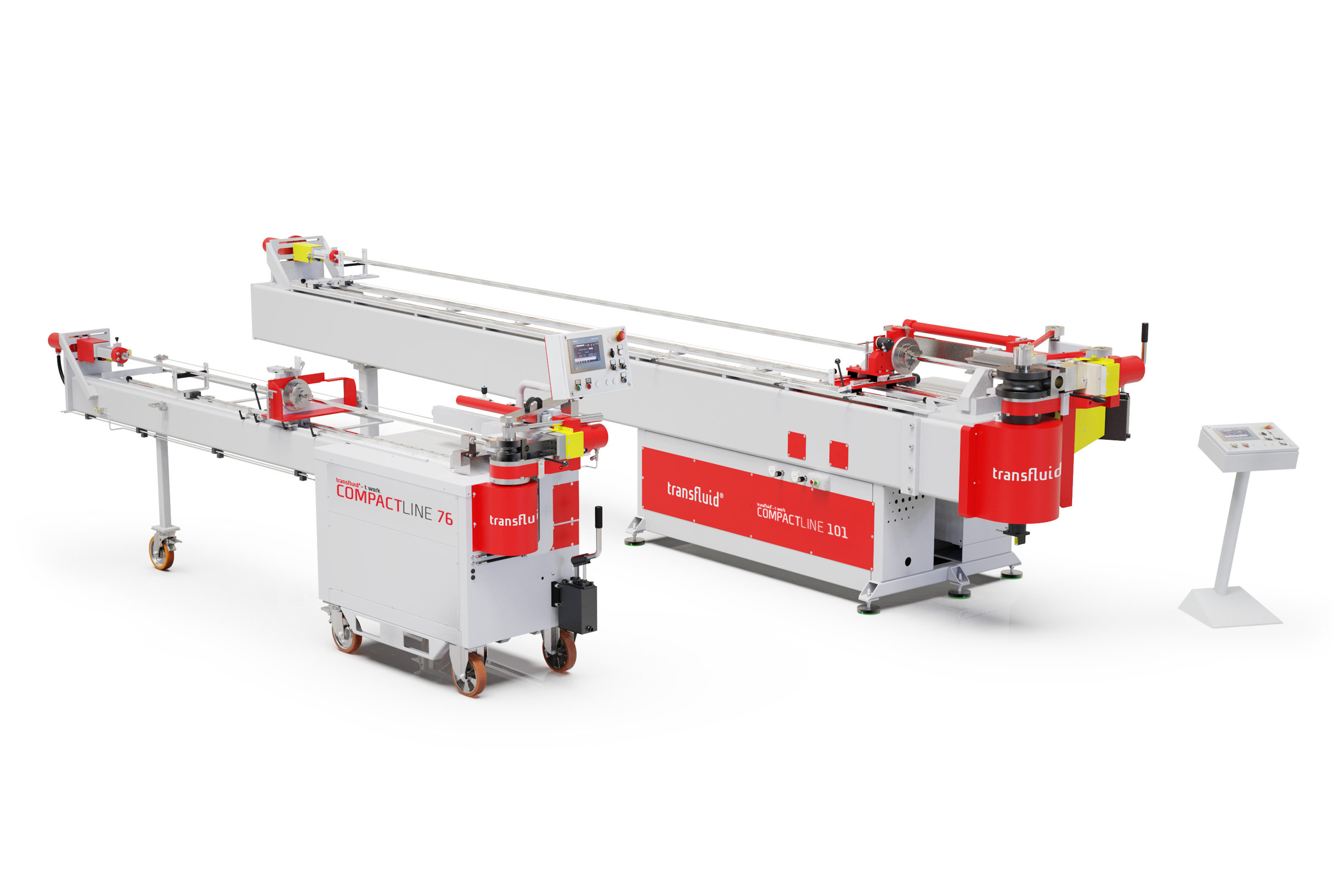

Zwei Rohrbiegemaschinen t work COMPACTLINE 76 und t work COMPACTLINE 101 mit Steuerung für präzises industrielles Rohrbiegen.
  • Simple and mobile - for use directly on site, with minimal space requirements
  • Compact and economical - perfect for one-offs and small batches
  • Precise - hydraulic power with digital accuracy
  • Fast and dynamic - short set-up times for efficient processes

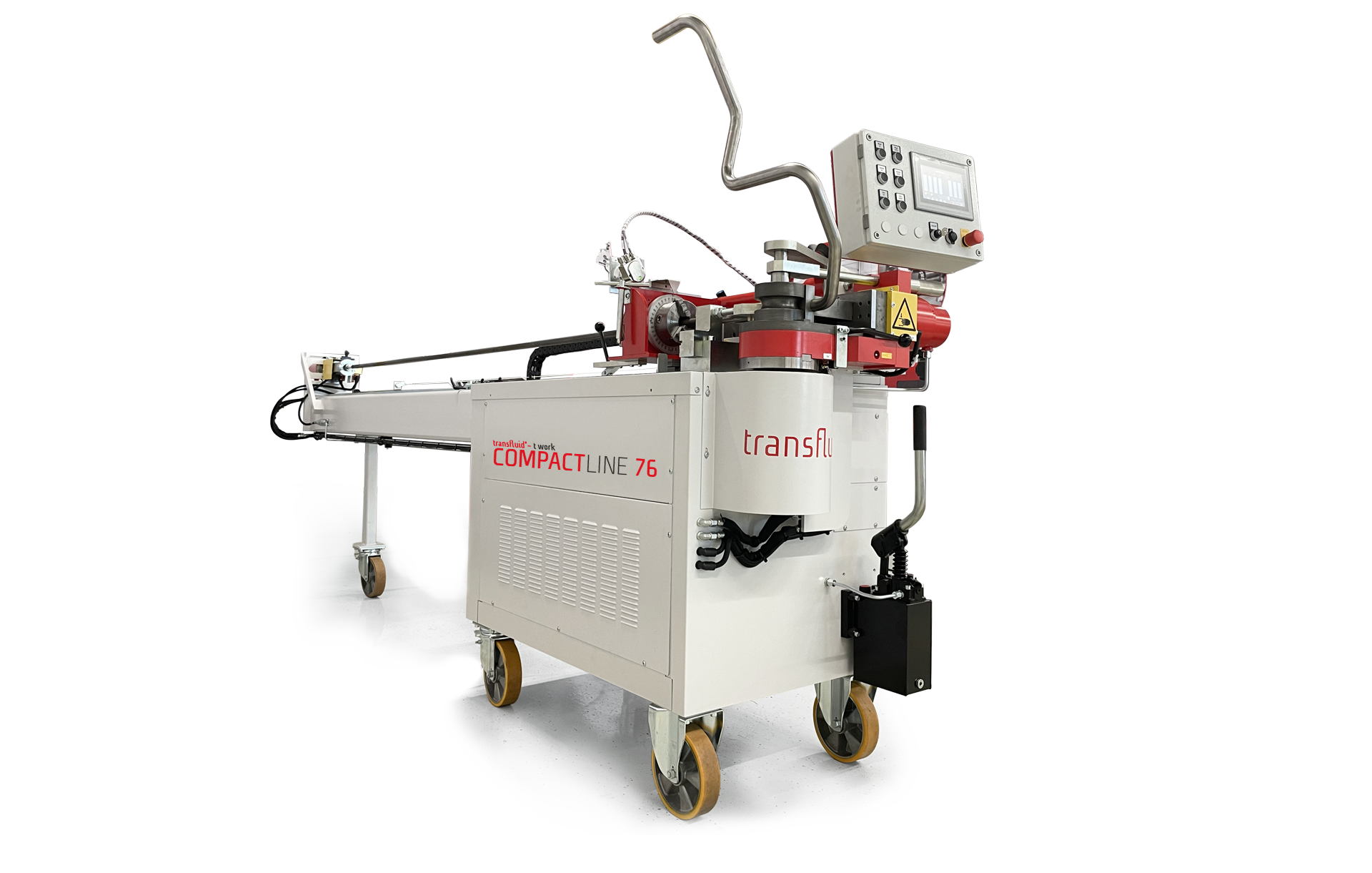

Freigestellte mobile CNC-Rohrbiegemaschine transfluid t work COMPACTLINE 76 für präzises Rohrbiegen in der Metallverarbeitung.

PRECISE PERFORMANCE IN A COMPACT SIZE.

t work COMPACTLINE - Optimized for easy operation.

The t work COMPACTLINE is the ideal solution for companies that require space-saving, high-performance tube bending machines. It is mobile and ensures precise bending results for single pieces and small batches.



PLC control with touch panel and storage of bending angles enable efficient and reproducible work.


The t work COMPACTLINE stands for mandrel bending technology that works straight away - quick to set up, easy to operate and ready for any challenge. The machine combines compactness, flexibility and bending quality - especially for companies that require reliable bending processes with minimal space requirements in production.



t work COMPACTLINE - Precise performance in a compact size.




Explore our machine virtually

Move the slider and click on the info points to get more information.

The right machine for your task

Product video Product video
arrow-left
Images /
arrow-right

Compact and mobile mandrel bending machines

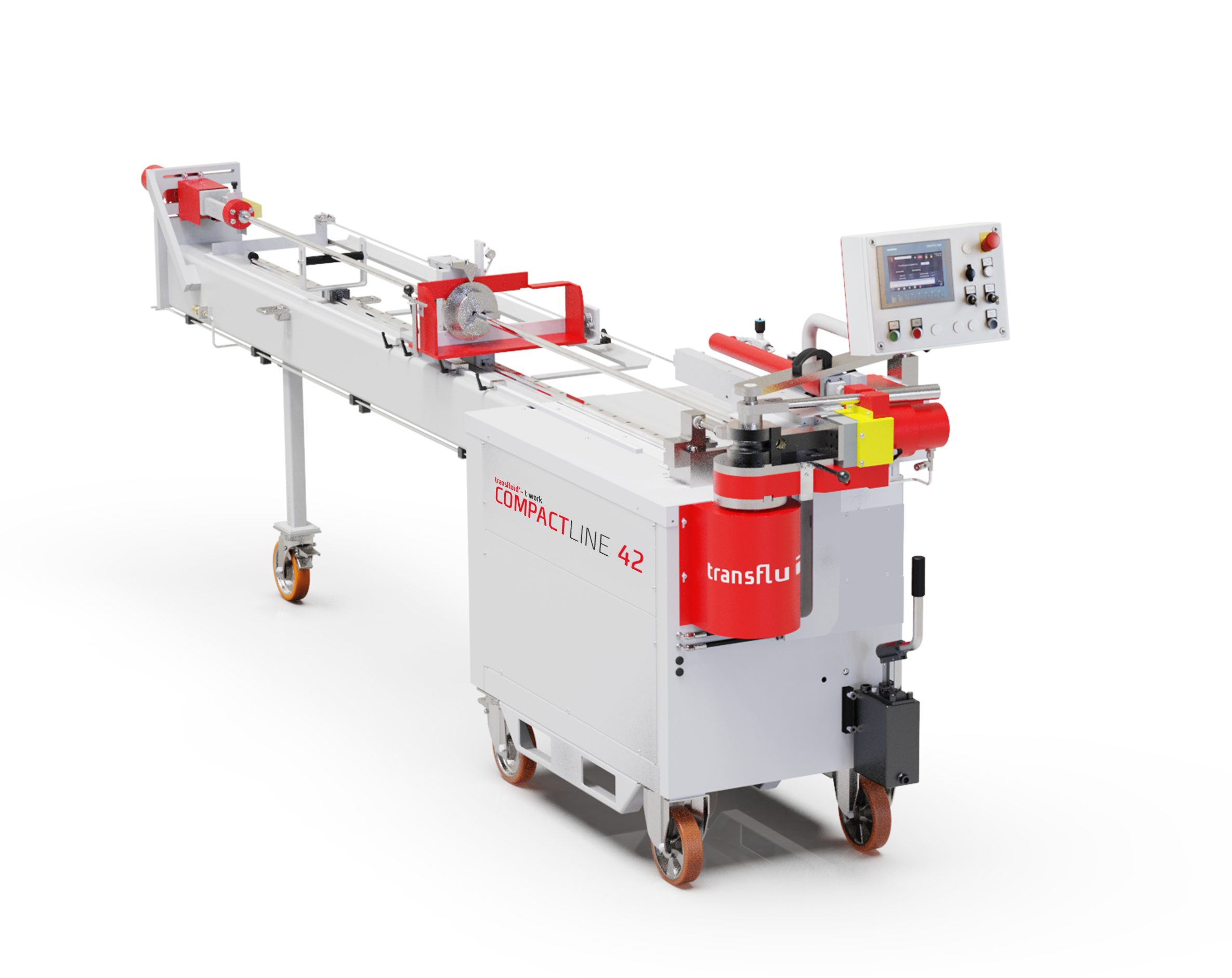

Type: COMPACTLINE 42
file Download technical data
Type: COMPACTLINE 76
file Download technical data
Type: COMPACTLINE 101
file Download technical data
Capacity6-42 mm
Max. Max. capacity42 x 5 mm (mild steel)
42 x 3 mm (stainless steel)
25 x 3.2 mm (square structural steel)
Max. Radius105 mm
Usable length1500 mm
3048 mm (standard)
4572 mm
6096 mm
Speed of the bending axis13 °/sec.
Length4380 mm
Width900 mm
Height1550 mm
Weight900 kg
Capacity6-76.1 mm
Max. Max. capacity76.1 x 3 mm (mild steel)
76.1 x 2 mm (stainless steel)
50 x 5 mm (square structural steel)
Max. Radius150 mm
Usable length1500 mm
3048 mm (standard)
4572 mm
6096 mm
Speed of the bending axis10 °/sec.
Length4450 mm
Width900 mm
Height1580 mm
Weight1250 kg
Capacity6-101.6 mm
Max. Max. capacity101.6 x 3.5 mm (mild steel)
101.6 x 2 mm (stainless steel)
80 x 4 mm (square structural steel)
Max. Radius300 mm
Usable length3048 mm (standard)
4572 mm
6096 mm
Speed of the bending axis11.5 °/sec.
Length5000 mm
Width1400 mm
Height1500 mm
Weight3700 kg

Your advantages at a glance

  • Bediener stellt Spannsystem einer CNC-Rohrbiegemaschine zur präzisen Metallrohrbearbeitung ein.

    TWISTING ANGLE UNIT

    For 360° rotation via scale, with 4 adjustable stops

    With chuck for all dimensions up to 101.6 mm

    Including length stop device with scale and 4 adjustable stops

    Usable length 6 m

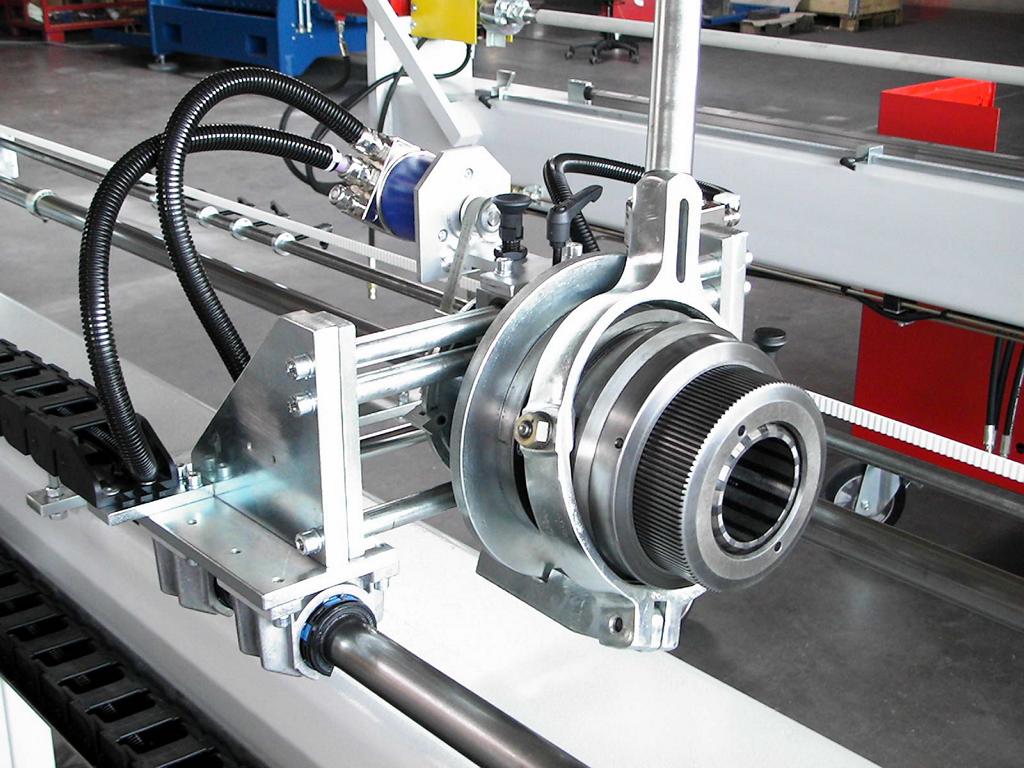

  • CNC-Rohrbiegemaschine mit Spannsystem und Werkzeugaufnahme in der industriellen Metallverarbeitung.

    QUICK-ACTION CHUCK

    For holding individual collets (optional)

  • Entgraten eines Metallrohrs an CNC-Rohrbearbeitungsmaschine mit Innenwerkzeug und Druckanzeige.

    DEBURRING MACHINE

    The separating cut is made directly after the last bend. No further re-cutting is required.

    Capacity:

    For tubes from 6 - 42 mm ø

    Machine equipment/basic accessories:

    Deburring tools

    Tools are easy to sharpen and adjust

    Internal deburrer with three HSS cutting edges

    External deburrer with one HSS cutting edge

  • Vormontage einer Rohrverschraubung an CNC-Rohrbearbeitungsmaschine mit Spannsystem.

    ATTACHMENT FOR CUTTING RING PRE-ASSEMBLY & FLARING

    For tubes from 6 - 42 mm ø

    For pre-assembly of single and multi-cutting rings to DIN 2353

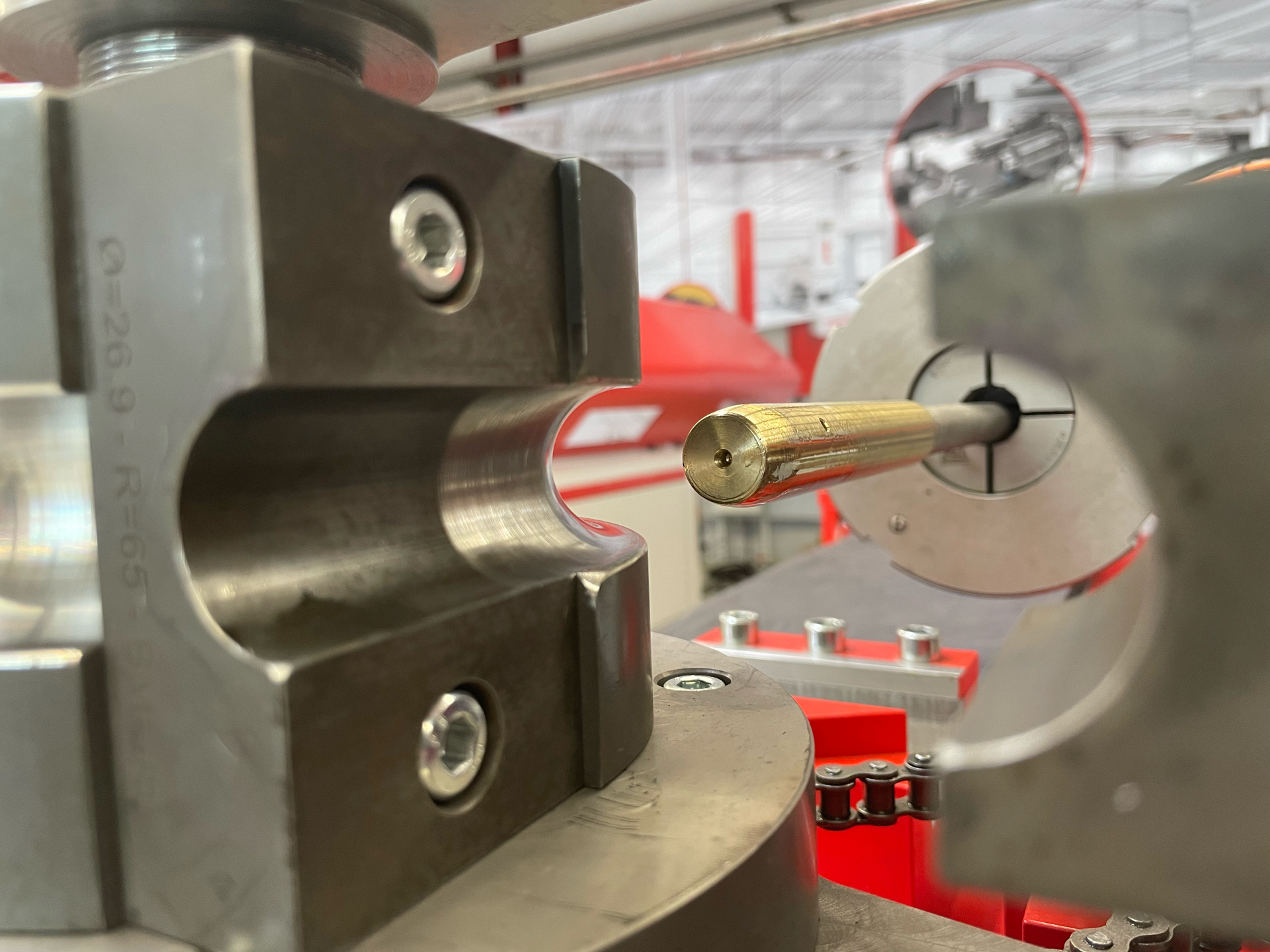

  • Metallrohr in Spannvorrichtung mit Dorn einer CNC-Rohrbiegemaschine.

    BENDING MANDRELS

    Bending mandrels in various contours or materials.

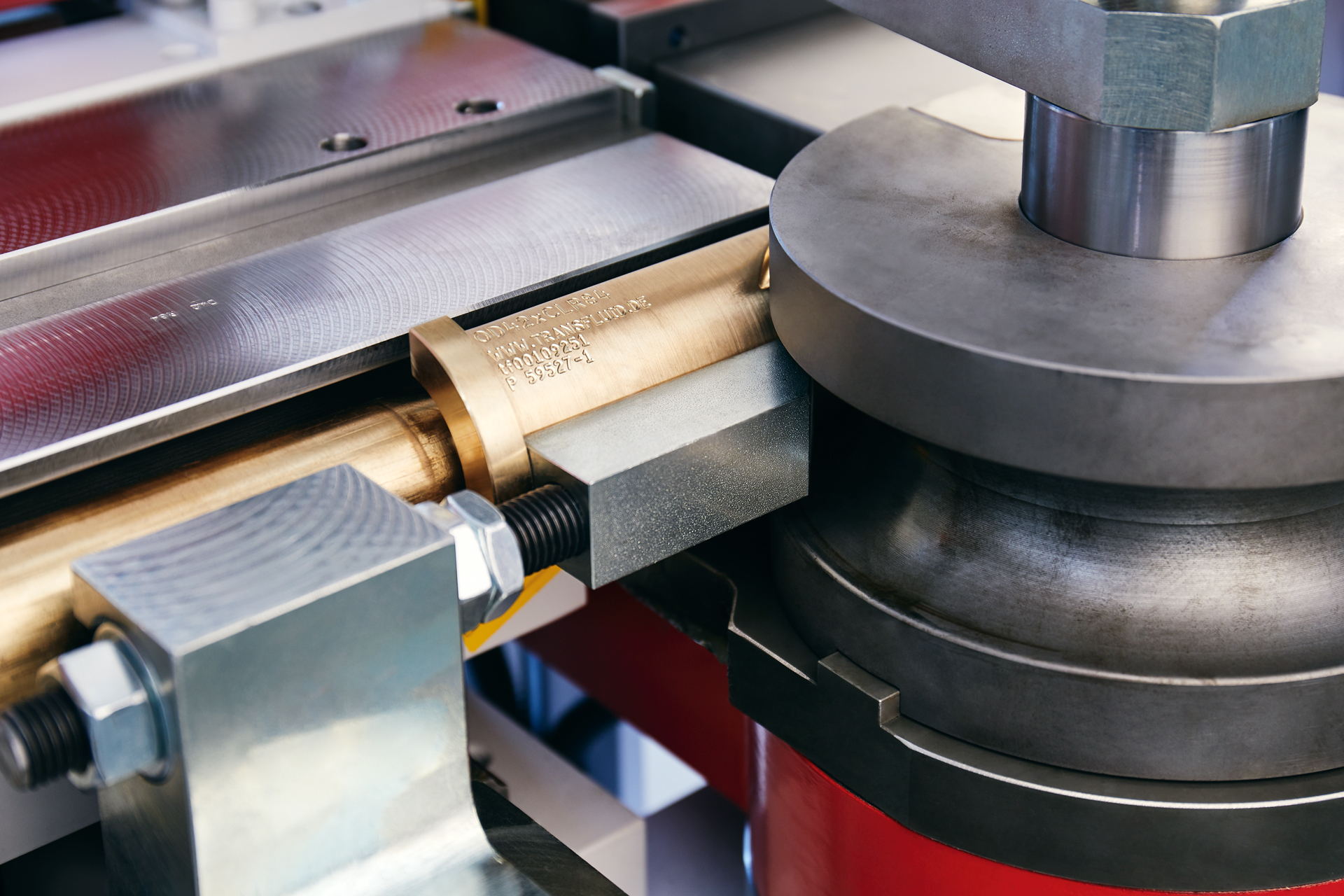

  • Wiper Die an CNC-Rohrbiegemaschine t work COMPACTLINE 76 zur Vermeidung von Faltenbildung beim Biegen.

    FOLDING SHEETS

    Prevents the wrinkling that occurs when the material exceeds its elastic limit and deforms in the sheet.

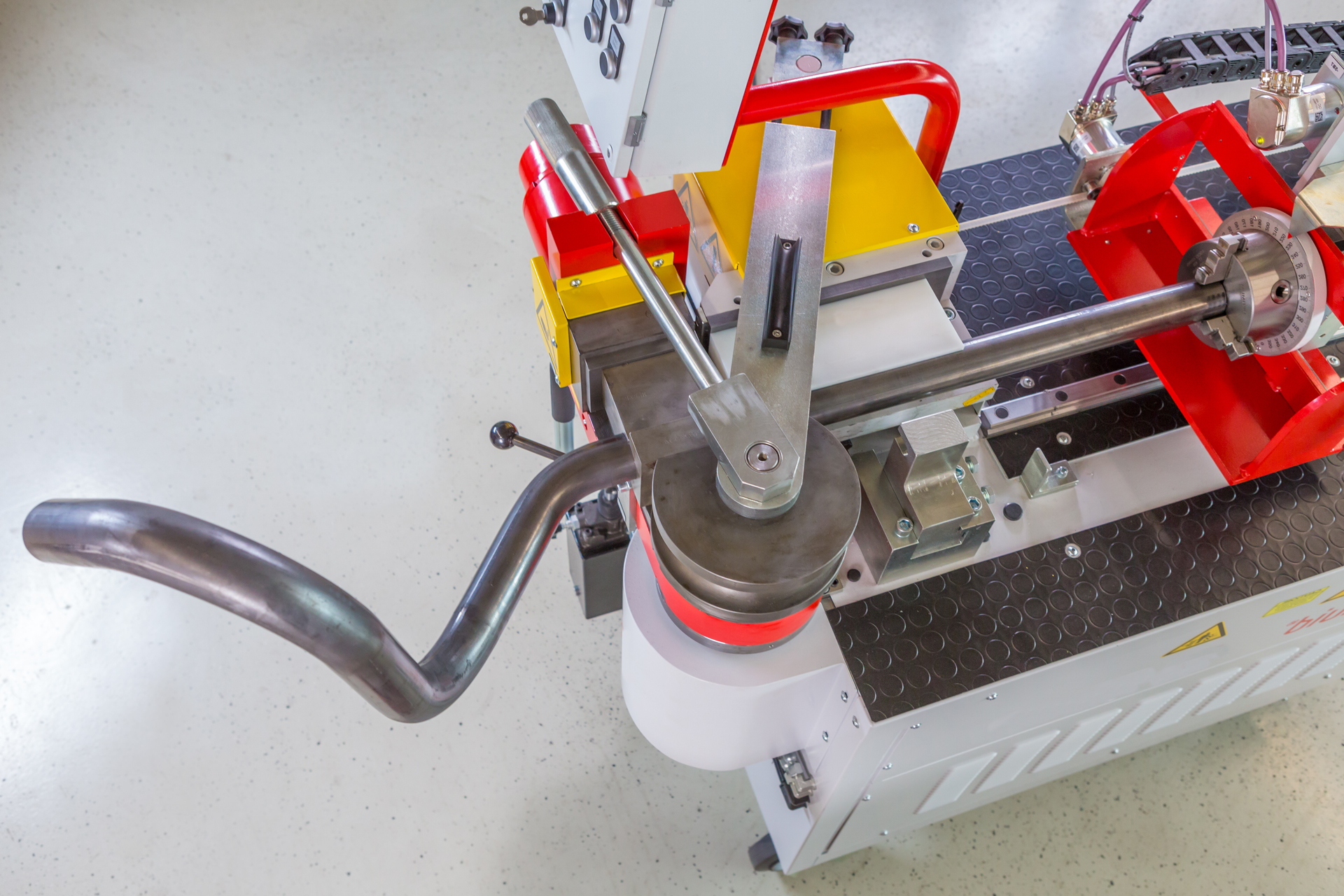

  • Rohrbiegen mit CNC-Rohrbiegemaschine t work COMPACTLINE 76 und Biegewerkzeug in der Metallverarbeitung.

    TIME AND COST SAVING

    Fast set-up times thanks to swivel bridge, plug-in tools and bayonet lock for the chuck.

Images 1/0
Anwender demonstriert Rohrbiegen mit transfluid Maschine und Trick-Tools in Werkstatt.

Presentation: transfluid - t work COMPACTLINE 76

Bruce Van Sant, owner of Trick-Tools (and brother of our Vice President at transfluid tube processing machinery Inc., Craig Van Sant), gives an in-depth look at our t work COMPACTLINE series of mobile, hydraulically driven bending machines.



The t work COMPACTLINE series machines are synonymous with simplicity and ease of use. These mobile mandrel bending machines combine hydraulic power with digital precision. With a capacity of up to 101.6 mm, bending radii from 1.5 x diameter in the standard configuration and a tolerance of +/- 0.1 degrees, these machines are as versatile as they are economical.

STABLE, FLEXIBLE AND ECONOMICAL

This series impresses with its particular stability and performance. Individual pieces and small batches can be produced extremely economically with this machine concept. The use of high-quality components ensures the longevity of the machine.

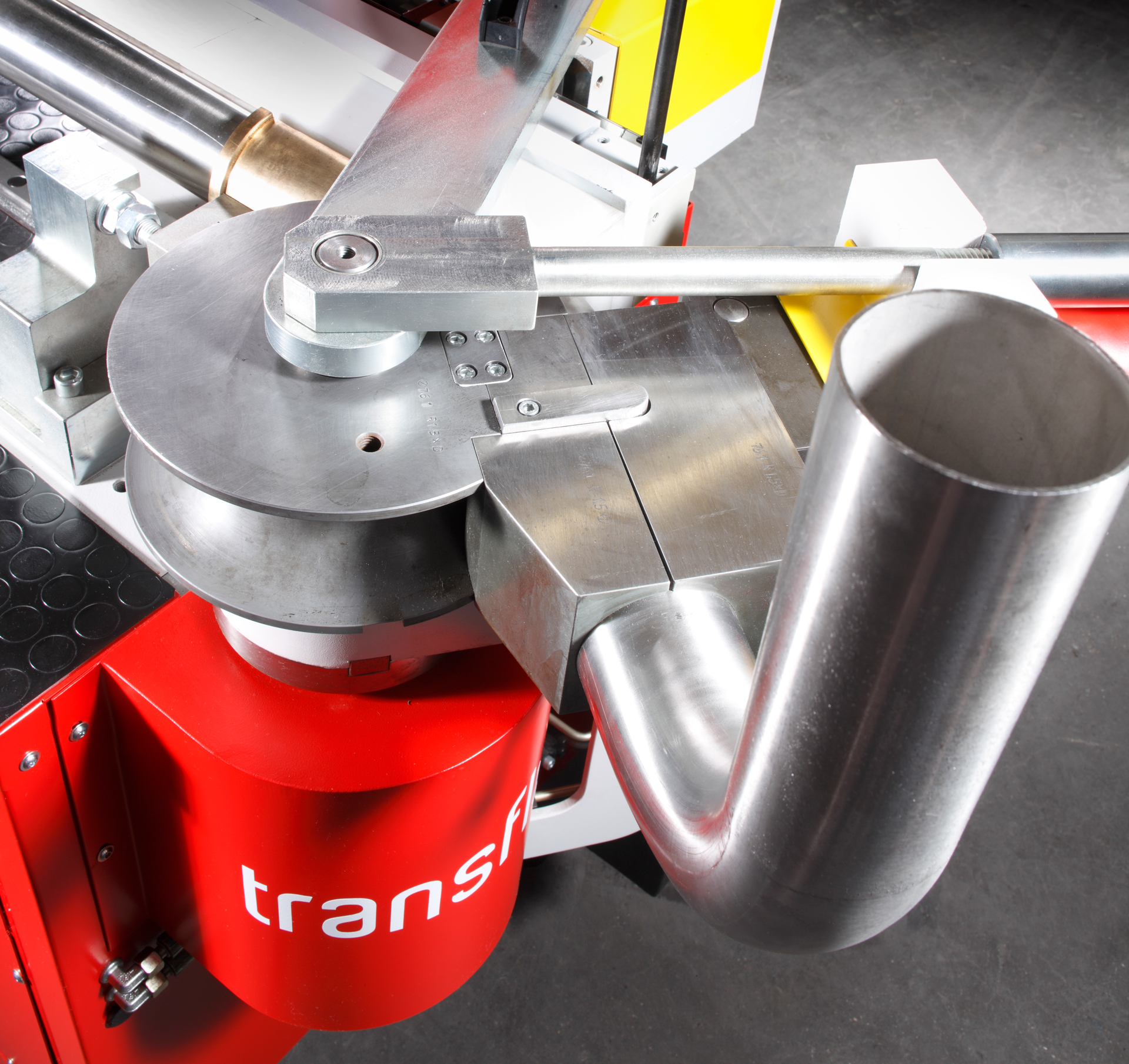

Werkzeugwechsel an CNC-Rohrbiegemaschine mit Biegeform und Metallrohr.

CATALOG DOWNLOAD

transfluid offers the complete package for processing tubes.

Download our new catalog.

Download PDF
