t bend - Type SRM rollforming machines
Our multi tool - All options in one single machine!



  • Forming, cutting, post-bending cutting, threading.
  • For extreme forming degrees with highest precision
  • Multiple machining steps possible in one cycle
  • High machining speeds of up to 1500 rpm
  • Low energy consumption and highest precision due to servo drives

transfluid® t form SRM ROLLFORMING MACHINES
Powerful and fast forming.

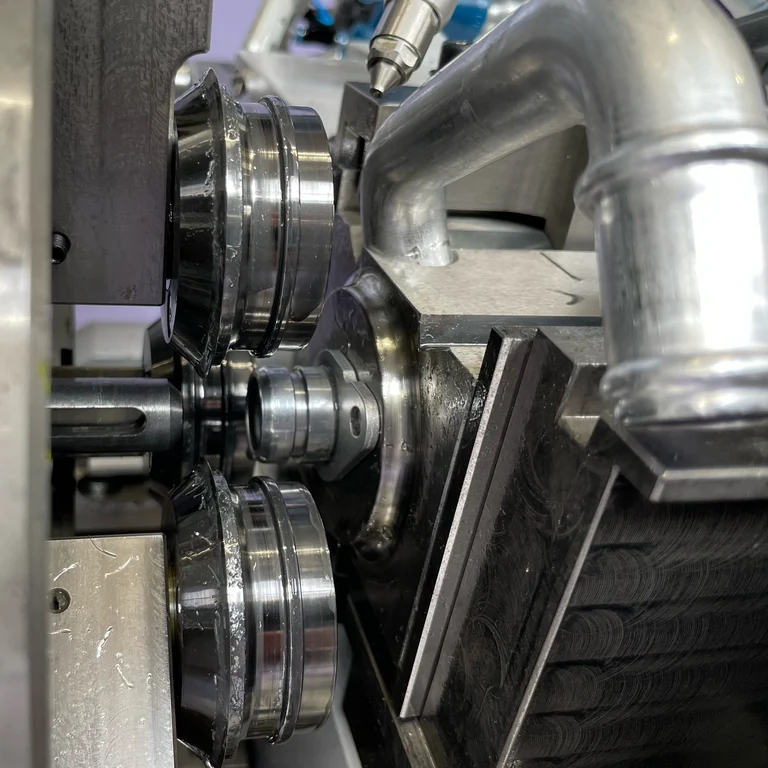

Our rotational technology increases the possibilities of forming on tubes with minimal expenditure on tools. All the drives are servo-electric by design and, if needed, CNC-operated. In our SRM rollforming machines, all the settings are preloaded, so there is no longer any need for costly adjustments.



Different tool variants further expand the processing possibilities for chipless cutting or post-bending cutting. The machines can produce internal and external profiles and can also roll in synchronicity thanks to a special tool head (inside/outside).

Getting flexible in tube end forming

Ideally suited for the production of challenging contours for sealing elements and for the generation of extremely good surfaces.

The right machine for your task

arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right

SRM ROLLFORMING MACHINES

Type: SRM 622
Type: SRM 1565
Type: SRM 40127
Type: SRM 50176
Max. capacity 4–22 mm
Wall thickness 1 mm
RPM 300 - 1000
Cycle time adjustable 4 - 10 sec.
Operation length max. 40 mm
Clamping length 1,0 x D
Power 4 kW
Weight 1250 kg
L x W x H 79 x 35 x 79 mm
Max. capacity 5-65 mm
Wall thickness 1,5 mm
RPM 300 - 1000
Cycle time adjustable 8 - 14 sec.
Operation length max. 40 mm
Clamping length 1,0 x D
Power 8 kW
Weight 1700 kg
L x W x H 2000 x 900 x 2000 mm
Max. capacity 40–127,3 mm
Wall thickness 2 mm
RPM 50 - 450
Cycle time adjustable 6 - 14 sec.
Operation length max. 80 mm
Clamping length 1,0 x D
Power 8 kW
Weight 1700 kg
L x W x H 2000 x 900 x 2000 mm
Max. capacity 50 - 176 mm
Wall thickness 3 mm
RPM 80 - 280
Cycle time adjustable 15 - 50 sec.
Operation length max. 100 mm
Clamping length 1,0 x D
Power 12 kW
Weight 2200 kg
L x W x H 2400 x 900 x 2200 mm

Your benefits at a glance

  • EXTREMLY SHORT CLAMPING LENGTH

    Clamping length depends on size of tube, approx. 1,0 x Ø. This gives the user the possibility to always perform the forming after the bending process.

  • SERVOELECTRIC DRIVES

    All the drives are servoelectric by design and, if needed, CNC-operated.

  • FORMING DEGREES WITH HIGHEST PRECISION



    Our rotational technology increase the possibilities of forming on tubes with minimal expenditure on tools.

  • EASY CONTROL VIA TOUCH PANEL

    In our SRM typeforming machines, all the settings are preloaded, so there is no longer any need for costly adjustments.

  • TRANSFORMATIONS WITH FUNCTIONAL SURFACES

    The machines can produce internal and external profiles and can also roll in synchronicity thanks to a special tool head (inside/outside).

  • CHIPLESS CUTTING

    Different tool variants further expand the processing possibilities for chipless cutting or post-bending cutting.

Images 1/0

T FORM ABSOLUTE INNOVATION: CUTTING AND FORMING WITH ONE TOOL

Multidimensional and automated bending of tubes. Highly efficient CNC bending technology for small and big bending tasks with the greatest precision. Our fully automated solutions mean optimum cycle times and large production volumes. The outstanding flexibility of our advanced CNC tube bending machines gives you economical bending process and meets the most demanding requirements.

PREPARED FOR INTEGRATION INTO PRODUCTION CELLS

This series will win you over with its special stability and performance. Individual pieces and small series can be produced in an extremely economical manner with this machine concept. The use of high-value components ensures the machine‘s durability.

EASY CONTROL VIA TOUCH PANEL

Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.

The UMR is equipped with a completely electronic preselection of the flanging geometry. The stop position and all strokes and machining operations are servo-electrically controlled and can be called up via a touch panel.

Decisive for the exact machining time is which material is used and which shaping is to be implemented. The machine carries out the processing quasi automatically if it is possible to call up the tube size with the necessary process parameters. In individual cases, the clamping lengths for machining are 1 to 1.5 x the pipe diameter.

Our new generation of t form UMR 628, 642 and 2090 machines reduces the set-up time when changing the tools and the operator can set up the machine in less than three minutes.

The solution for any geometry with outstanding sealing surfaces

Tailored to your individual requirements and needs, we create optimal solutions with our expertise.

Production samples
