Fast and safe: t work ASSEMBLY DEVICES


Tube deburring machine

The tube deburring machines with servoelectric drive offer external and internal deburring of hydraulic tubes. The durable and efficient milling tools can debur any cuts.


The tools are easy to remove, resharpen and refit.


Tube sizes:

  • 1/4" - 1 5/8"

  • 3/4" - 2 3/8"

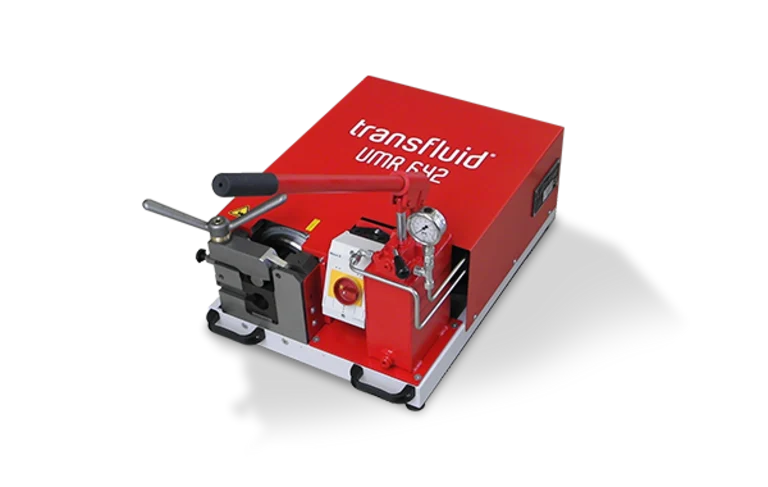

Rotational forming machine

With our forming machine with rotating head you can achieve high-quality results. The forming of tube ends with angles between 37° and 90° is tool-dependent and possible with the rotating method.


Perfect sealing surfaces and short clamping length can be achieved with ease.

- Manual clamping

- Manual advancement with hand pump

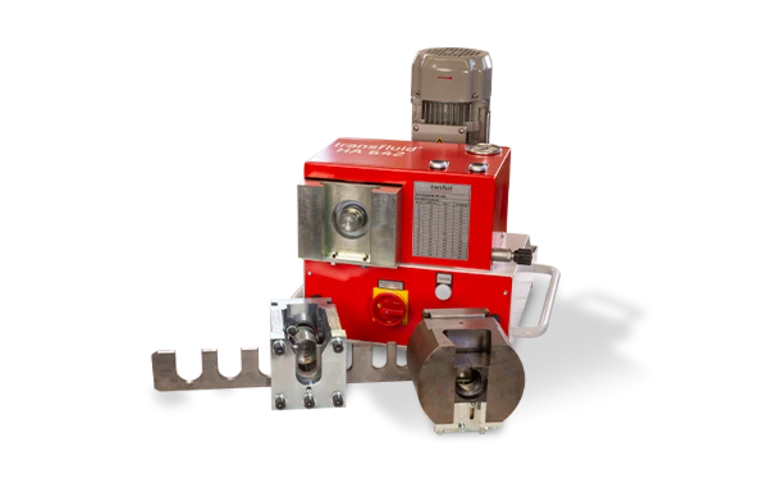

Electro-hydraulic drive unit

As combination or individual machine for classic cutting ring fitting and 37° flare: our devices with electro-hydraulic drives work with great precision.


The light, convenient and powerful transfluid pre-assembly and flaring devices for the external assembly are the perfect starting point for reliable quality assembling.


- Suitable for tube sizes between 1/4" - 1 5/8"

- Interchangeable attachments

Pre-assembly devices, automatic orientation and pressure recognition

The efficient assembly solution for medium and large series for the pre-assembly of cutting rings and multiple cutting rings for DIN 2353. The machine can be fitted to be mobile or stationary.

  • Fast cycle times
  • Secure processing (pressure and direction control)
  • Digital input and storage of process data
  • Great assembly freedom
  • For tubes from 6-42 mm

Tube chamfering machine

The transfluid tube chamfering machines are fitted with different drives and tools for the different tube sizes. It is possible to chamfer tubes with wall thickness up to 20 mm with special blade-heads.


The whole range of tube diameters is covered without having to change tools.


For the preparation of the welding seam of tubes with a 30° angle - Other angles available on request

Catalog Download

transfluid® offers the complete package for the production of tubing.

Download our new catalogue.
