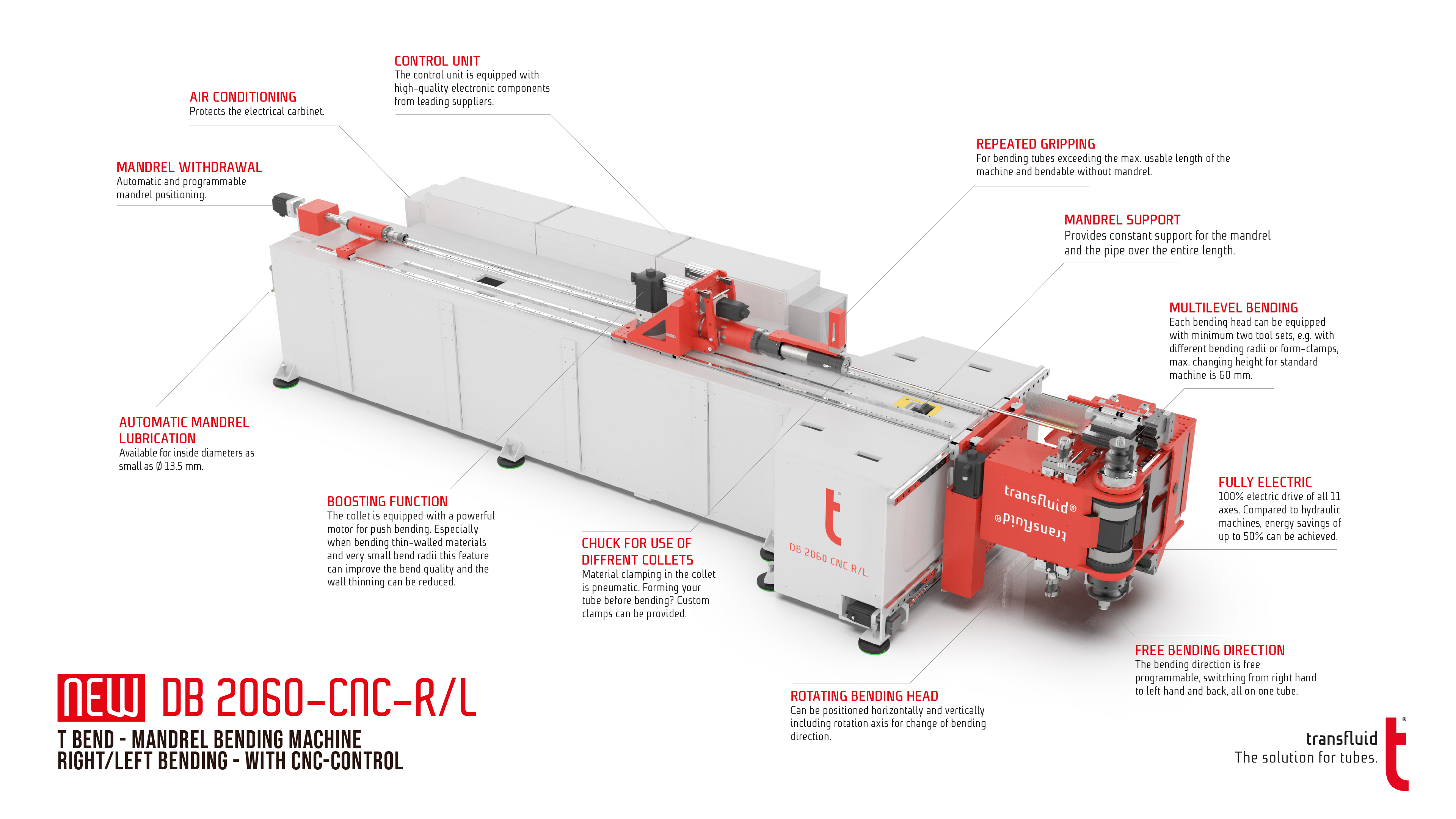

CNC Rohrbiegemaschine transfluid t bend VARIOLINE 60 als 3D Rendering in Gesamtansicht

transfluid - The solution for pipes

ABSOLUTE NOVELTY

IN TUBE BENDING TECHNOLOGY!

Right and left bending

up to ø 70 mm.

To the machine side

Draufsicht auf CNC Rohrbiegemaschine transfluid t bend VARIOLINE 60 beim Biegen eines Metallrohrs.

Powerful, fast and versatile.

The new VARIOLINE 60 t bend CNC mandrel bending machines can be used to bend steel, stainless steel and non-ferrous metal tubes as round tubes or profiles from ø 6-70 mm.

These electrically driven bending machines are designed for the production of large quantities, with efficient energy consumption thanks to economical servo technology. Small and medium wall thicknesses can be processed with perfect bending quality at tight bending radii from 0.8xD.

transfluid - t bend VARIOLINE

Special tool changing systems enable fast changeover times. Extensive accessory options such as segment collets for processing tubes with already formed tube ends, boosting for free-form processing or integrated tube cutting functions enable uncompromising bending options.

All prepared for integration into production cells and "ready for Industry 4.0". With our right/left-hand bending machines - also with free-form function - the most complex bends with high precision become reality.

To the overview

The right machine for your task

Product video

Images /

Product video

Images /

Product video

Images /

Product video

Images /

Mandrel bending machines right/left bending with CNC control

choose tube diameter

Type: VARIOLINE 22

Download technical data

Type: VARIOLINE 30

Download technical data

Type: VARIOLINE 42

Download technical data

Type: VARIOLINE 60

Download technical data

Capacities	4 - 22 mm
Max. Max. capacity	22 x 2 mm (steel) 22 x 1.5 mm (stainless steel)
Max. Radius	66 mm
Effective lengths	2000 mm (standard) 3048 mm 4572 mm 6096 mm (special)
Bending axis speed	300 °/sec.

Capacity	4-30 mm
Max. Max. capacity	30 x 2 mm (steel) 30 x 1.5 mm (stainless steel)
Max. Radius	90 mm
Effective lengths	2000 mm (standard) 3048 mm 4572 mm 6096 mm (special)
Bending axis speed	275 °/sec.

Capacity	6-42 mm
Max. Max. capacity	42 x 3 mm (steel) 42 x 1.5 mm (stainless steel)
Max. Radius	90 mm
Effective lengths	2000 mm (standard) 3048 mm 4572 mm 6096 mm (special)
Bending axis speed	180 °/sec.

Capacity	6-70 mm
Max. Max. capacity	60.3 x 3.9 mm (steel) 70 x 2 mm (steel)* 60.3 x 2.7 mm (stainless steel)
Max. Radius	180 mm
Effective lengths	3048 mm (standard) 4572 mm 6096 mm (special)
Bending axis speed	100 °/sec.

Production samples
